HXD-V56OPS LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI and CVBS signal inputs, as well as LVDS signal outputs. 5V and 12V dual power supply, supports low-power standby mode. The LCD control board supports true-color boot screens and allows customized exclusive boot logos for customers. HXD-V56OPS LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.
HXD-V56OPS LCD driver board is equipped with a comprehensive range of multi-format video input interfaces, enabling simultaneous connection to various signal sources such as computers, surveillance cameras and HD players. It is compatible with NTSC M, NTSC-J, NTSC 4.43 and the full range of PAL analogue video standards worldwide, and is equipped with a 3D image filtering algorithm that effectively eliminates image noise and motion blur, significantly enhancing the fineness of the display. The LCD motherboard supports a dual-voltage power supply scheme (5V/12V), making it compatible with a wide range of system power supply designs. It features a built-in low-power standby circuit, which effectively reduces energy consumption during long-term continuous operation. It is equipped with a comprehensive OSD on-screen menu control system, supporting customisable start-up screens and remote control via infrared, whilst also offering horizontal and vertical image flipping functions to accommodate various installation scenarios such as ceiling-mounted, upright and inverted installations.
HXD-V56OPS screen control board is equipped with an audio input port and a headphone output jack, enabling the synchronised output of audio accompanying the video. Combined with serial loop-in and loop-out ports, it allows for the centralised management of multiple boards, facilitating the coordination of multi-screen setups. In addition, the product boasts two unique features. Firstly, it is equipped with high-definition multimedia decoding, supporting smooth playback of 1080p Full HD video. It features a reserved on-board amplifier circuit and can be fitted with an optional 2×10W (8Ω) dual-channel amplifier module, eliminating the need for additional audio amplification equipment. Secondly, it supports the burning of full-colour high-definition boot screens, allowing for the customisation of a client’s exclusive brand logo to enhance the brand recognition of the entire unit.

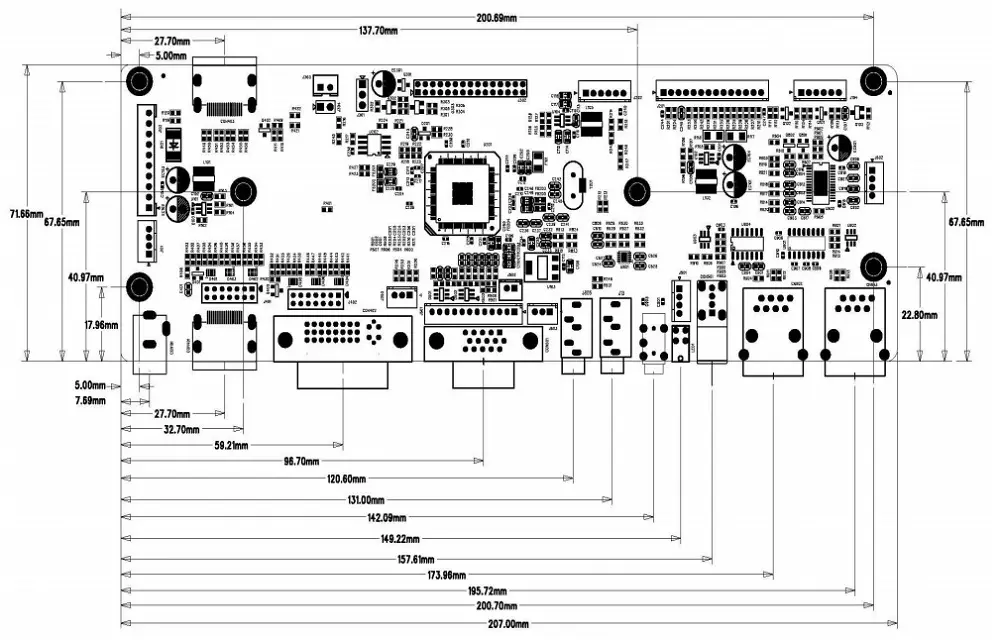

PCB thickness: 1.60 mm Dimensions: 207.00 mm x 71.66 mm Total height: 15.00 mm

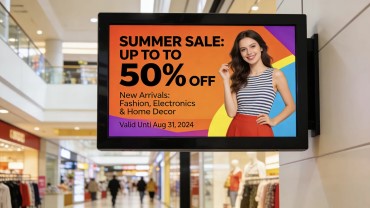

• Commercial Advertising Displays / Digital Signage
HXD-V56OPS LCD control board supports 1080P full HD hardware decoding and low-power standby mode. Rotatable & flippable image and customizable true-color brand boot logo are available. Widely applied to mall vertical signage, store window displays and elevator advertising screens for 7×24h continuous operation, serial loop ports enable synchronous control of multiple LCD display screens.
• On-Board Display / In-Vehicle Multimedia Display Device
Dual voltage input withstands vehicle voltage fluctuation, and low-power standby reduces energy consumption. It accepts CVBS vehicle camera signals, and audio output with optional amplifier supports vehicle audio-video playback. Image flip fits ceiling-mounted screens for coach TVs and construction machinery monitoring terminals.
• Industrial Control Panels / Workshop Monitoring Screens
HXD-V56OPS LCD driver board supports dual 5V/12V power input to adapt to various industrial power supply solutions. The built-in 3D image filtering improves the clarity of production line data images. Serial loop-in and loop-out ports enable centralized management of multi-station screens, and the image flip function accommodates diverse industrial control installation methods. Suitable for workshop control panel displays, equipment monitoring screens, dispatch displays and similar applications.
Zhengzhou Hengxinda Technology Co., Ltd. is a professional supplier dedicated to industrial LCD displays, various touch panels, LCD controller boards, and industrial TFT LCD display solutions. All TFT LCD panels we supply are well-established and reputable products from brands including Innolux, AUO, BOE and others, and have undergone strict testing before delivery. We provide resistive and capacitive touch screens, and can customize touch solutions according to your requirements. Our factory applies strict standards and standardized operations to bonding technology to ensure high bonding quality.We offer different bonding methods — full bonding or frame bonding — based on your actual application scenarios.
We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and LCD driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD display panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.
Q1: Can I customize the boot logo? What image quality does it support?
A: True-color high-definition startup screen is programmable. Custom exclusive brand logos are available with vivid, delicate color reproduction to upgrade product grade.
Q2: Can you supply matching LCD display panels, touch screens and cables? Do you offer customization service?
A: Matching LCDs, touch panels and all kinds of cables are available. We also provide boot logo customization, hardware revision and function customization services, feel free to send us your requirements.
Q3: Is the power amplifier included as standard on the HXD-V56OPS driver board?
A: The amplifier is not standard accessory. We can pre-install the 2×10W (8Ω) dual-channel amplifier upon order request to simplify machine wiring and structure.
Q4: Do you have a MOQ for your products?
A: We do not have a MOQ for samples. However, for subsequent purchases of the same product, we do have a MOQ requirement, please contact our sales manager for further details if needed.
Q5: What is the warranty period for HDX-V56OPS screen motherboard?
A: The standard warranty period is 12 months. Faults not caused by human error will be repaired or replaced free of charge.
