HXD-VDH68 LCD panel driver board is designed for small and medium-sized LCD display panels and supports multiple resolutions up to 1920×1200. HXD-VDH68 LCD control board provides flexible signal conversion from HDMI, VGA and DVI interface to output options including LVDS and eDP. Supports auto dimming, black-and-white display, OSD display & control, multi-language switching and factory mode. HXD-VDH68 LCD display driver board is widely applied to industrial displays, vehicle displays, and medical equipment displays.
• Wide operating temperature
Working temperature ranges from -20℃ to +60℃. It maintains steady and reliable performance even in complex and harsh industrial working conditions, adapting to various application scenarios.
• Support auto dimming
Reserved light sensor interface, when connected to an external light-sensing module, it can measure ambient light intensity in real time. It automatically boosts brightness under strong sunlight and dims backlight at night or cloudy days.
• Support black-and-white display mode
Support monochrome mode, allowing switching to monochrome greyscale output. Suitable for industrial inspection equipment, cold store monitoring systems, readout instruments and other devices that do not require color displays, this reduces power consumption, enhances the accuracy of greyscale detail display, and meets the requirements of professional inspection scenarios.
• Multiple output interfaces
HXD-VDH68 LCD controller board comes with multiple output interfaces, serving as a versatile EDP controller board and LVDS controller board. As a standard 30 pin edp controller board, it works perfectly with mainstream eDP LCD panels. LVDS signal output for traditional LVDS screens, this 30 pin lcd controller board is widely compatible with LCD panels of various cables and interfaces, ideal for diverse display integration projects.
• Support factory mode
Features a built-in factory mode, enabling production staff to calibrate LCD screen parameters in bulk, preventing end users from accidentally altering professional display settings, and significantly improving calibration efficiency in mass production.
Display output
Maximum resolution
Max:1920x1200
Output Interface
Single/Dual/LVDS、eDP
Support signal
Analog RGB
Horizontal Freq
30-120KHz
Vertical Freq
50-75Hz
0.7Vp-p@75ohm
Separate/Composite/SOG sync support
Digital DVI
OSDKeypad
Power,Menu,Exit,Plus,Minus
Menu type
Graphical Menu
Language support
Supports 8 languages including Chinese and English
Function operations
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock
Phase
H position
V position
Auto configure
Power
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1:

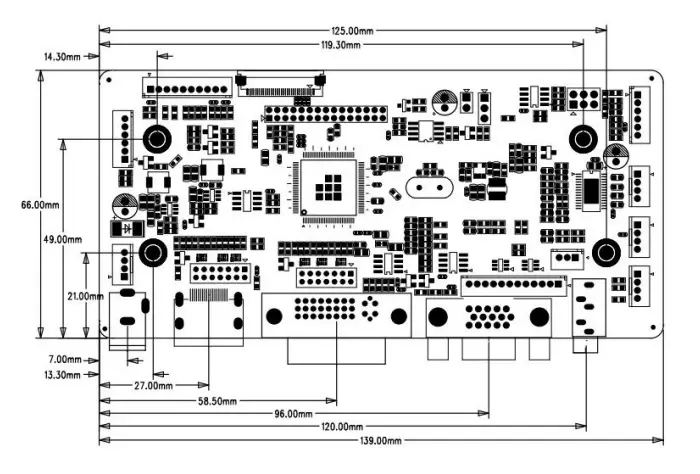

The dimensions of HXD-VDH68 LCD mother board are shown below for your reference. For more detailed information, please refer to the datasheet, which can be downloaded by clicking [download PDF].
The HXD-VDH68 LCD driver board is widely used in industrial equipment, including equipment control panels, machine tool operation displays and automatic testing instruments. It supports switchable monochrome display mode to highlight measurement data, and built-in factory mode facilitates screen parameter calibration for mass production lines. Its multi-language menu is suitable for domestic and exported automation equipment. For medical imaging devices such as ultrasonic diagnostic instruments and laboratory testing equipment, the monochrome display mode meets the requirements of medical image reading, and stable image output ensures clear presentation of fine imaging details. When applied to outdoor self-service terminals including charging pile displays, self-service payment machines and outdoor digital signage, it supports automatic ambient light dimming and wide-temperature operation to adapt to complex environments with extreme high and low temperatures.
The following is a partial list of compatible LCD display models. If you have any other LCD display screens compatibility requirements, please feel free to contact us, we will provide you with suitable solutions for LCD panels with controller boards, along with matching cables.
Inch
Brand
Panel Model
Resolution
Brightness(cd/㎡)
Interface
Operating Temperature
7"
Innolux
G070ACE-LH2
800×480
500
LVDS
-30 ~ 85°C
AUO
G070VAN01.1
200
-20 ~ 70°C
10.1"
G101EAN02.4
1280×800
400
-20 ~ 60°C
G101ICE-LH2
1200
-30 ~ 80°C
G101ICE-LM1
350
-10 ~ 60°C
BOE
GV101WXM-N81
300
eDP
10.4"
G104ACE-LH1
800×600
G104XVN01.0
1024×768
470
12.1"
G121ICE-LH1
1000
G121EAN01.6
13.3"
G133HAN03.1
1920×1080
0 ~ 50°C
G133HAN01.1
15"
G150XAN03.0
G150XTN03.4
0 ~ 65°C
15.6"
G156XTN02.1
1366×768
280
17"
G170ECE-LE2
1280×1024
0 ~ 60°C
19"
G190EAN01.0
G190EG02 V104
21.5"
G215HCJ-L02
G215HAN01.201
HXD-VD68 LCD panel driver board supports VGA and DVI signal input, and LVDS signal output. HXD-VD68 LCD control board can operate stably within a wide temperature range of -20℃ to +60℃. Supporting resolutions up to 1920×1200. This LCD driver board supports automatic light sensing, black-and-white display, OSD display and control, multi-language options, and factory mode.
Product Manager:Mark Si
HXD-VD68DG LCD motherboard is a reliable and versatile solution for converting VGA and DVI signals into LVDS output. HXD-VD68DG LCD control board HXD-VD68DG can operate stably at temperatures as low as -40℃. Supporting resolutions up to 1920×1200. It features enhanced anti-static protection and an isolated power supply. HXD-VD68DG LCD driver board is suitable for medical imaging equipment, outdoor unattended terminals, industrial control and testing equipment, security surveillance display equipment, and more.
HXD-VD58WV LCD driver board is a versatile industrial-grade 30 pin LCD controller board designed to convert VGA and DVI signals to LVDS outputs. Supporting resolutions up to 1920×1200, it is ideal for a wide range of TFT LCD display applications. HXD-VD58WV LCD control board can support auto dimming, potentionmeter knob dimming, multiple language support, meets DICOM's brightness control standards, supports GAMMA control (with 7 preset GAMMA curves), and can operate stably at temperatures as low as -40℃. This board is widely used in industrial control systems, embedded devices, digital signage, and display upgrades.
