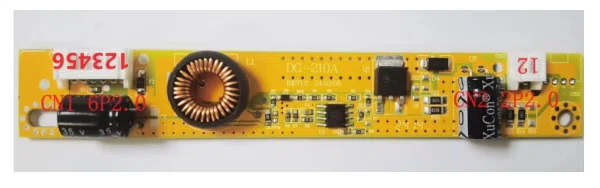

HXD-210A is a high-performance DC-DC LED constant current driver board specifically designed for LCD backlight systems. It converts a standard 12V DC input into a stable 35V-70V LED output, providing reliable and efficient backlight power for LCD monitors, industrial control displays, digital signage systems, medical equipment, POS terminals, and embedded display applications. Featuring constant current regulation, wide dimming capability, and industrial-grade reliability, HXD-210A is an ideal solution for new projects, maintenance applications, and replacement of old LED driver boards.

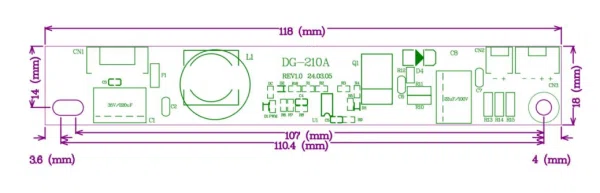

Clicking "Download" will provide you with a detailed parameter datasheet for HXD-210A LED driver board.The mechanical drawings are as follows：
-The product achieves an efficiency rate up to 93.5%.
- Advantages: lower power consumption, less heat generation, longer LED service life and improved overall system reliability.
- Perfect fit for 24/7 continuous operation scenarios.
- Built-in constant current regulation function prevents LED over-driving effectively.
- It keeps consistent brightness output, lowers thermal stress on components and further extends the service life of LEDs.
- Two dimming modes are supported and compatible with most industrial control systems.
1) Analog Dimming - 0V corresponds to maximum brightness - 5V corresponds to minimum brightness
2) PWM Dimming - Frequency range: 5KHz-50KHz - Control voltage: 3.3V-5V
- The output current can be customized by adjusting the feedback resistor.
- It can match various application demands, including different LED strip structures, various backlight voltages and diverse current requirements.
As a qualified manufacturer of backlight driver boards, we can customize dimensions, size, function, temperature range, and other specifications to meet your requirements; please consult our sales team for details. And, regarding the HXD-210A backlight driver board, we can make the following adjustments prior to shipment:
♦ LED backlight board matching
♦ LED driver board customization
♦ Current adjustment
♦ Voltage optimization
♦ Connector customization
♦ Cable assembly services
♦ Replacement solutions for LED driver boards
As a leading China supplier of industrial TFT LCD display module solutions, Hengxinda specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
We supply complete integrated solutions consisting of LCD panel with controller board. We offer compatible cables, driver boards, touch screens and other accessories. We offer customization services, including interface modifications, the addition or removal of features, and hardware parameter tuning. We can devise a comprehensive display solution tailored to your equipment’s installation space, signal requirements, operating environment, resolution and power supply conditions, providing a one-stop solution to all your display requirements.
• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.
• Rich Industry Experience: With over 10 years of in-depth involvement in sectors including industrial control, medical equipment, automotive electronics, rail transit, and military applications, we deeply understand the unique requirements of each industry.
• Professional Technical Support: Our engineering team provides full pre-sales consultation (product selection/cost optimization) and after-sales service (1-year warranty, fast response).
A: The HXD-210A is designed for 12-inch to 24-inch LED backlight LCD displays.
A: In most cases, yes. Please send your LCD model and original driver board information for evaluation.
A: Yes. PWM frequency range is 5KHz to 50KHz.
A: Yes. Output current can be modified through feedback resistor adjustment.
A: Yes. Sample orders and small-batch testing are supported.
A: Yes. We offer compatibility verification, replacement recommendations, and integration assistance.
