HXD-HDMI-MIPI-V2 LCD panel driver board is a small-size LCD driver board that supports HDMI signal input, and MIPI signal output. It supports wide-range power supply and -20℃~+70℃ wide temperature operation. Supporting resolutions up to 1920×1200. HXD-HDMI-MIPI-V2 LCD control board integrates LED backlight driver circuit. HXD-HDMI-MIPI-V2 screen motherboard measures just 60.6 mm × 50.8 mm × 10 mm, saving installation space and offering a high degree of integration.
| Model | HXD-HDMI-MIPI-V2 |
| Maximum resolution | 1920×1200 |
| Mechanical Dimension | 60.6mm×50.8 mm×10mm |
| Operating Temperature | -20~70℃ |
| Input Interface | HDMI |
| Output Interface | MIPI |
• Wide DC Input Voltage Range
HXD-HDMI-MIPI-V2 LCD driver board supports a DC supply voltage range of 6V to 13V, with a standard operating voltage of 12V. The wide-voltage design provides resistance to voltage fluctuations in scenarios with unstable power supplies, such as in-vehicle and portable display devices, ensuring the board operates continuously and reliably.
• Wide Operating Temperature Range
HXD-HDMI-MIPI-V2 control board operates stably and reliably within a temperature range of -20°C to +70°C. This display driver board is suitable for use in harsh environments such as outdoor equipment, cold store monitoring terminals and high-temperature industrial workshops, ensuring consistently stable display performance even in extreme temperatures.
• Built-in LED Backlight Driver Circuit
HXD-HDMI-MIPI-V2 LCD driver board features a built-in LED backlight driver circuit, eliminating the need for an additional external backlight driver board. This simplifies the overall structural design of the display device, reduces the complexity of internal wiring, and lowers the assembly costs of the entire unit, making it ideal for a wide range of small and medium-sized LCD screens.
• MIPI Output Interface
HXD-HDMI-MIPI-V2 LCD motherboard features MIPI output, specially designed for LCD display panels with MIPI interfaces. MIPI output interface supports 2-lane and 4-lane channels, allowing flexible adaptation to screens with different resolutions. It utilises high-speed differential serial transmission, which results in lower electromagnetic interference (EMI) compared to traditional LVDS, ensuring stable display performance during long-term operation. It is suitable for compact devices such as handheld devices, small instruments and portable terminals.
• Supports Multiple Resolutions
Supports high-definition HDMI and analogue RGB (VGA) resolutions for PC (personal computer) graphics cards: 480x272, VGA, SVGA, XGA, SXGA, WXGA+, UXGA, 1200x1920, 1920x1200 and other VESA standard signals.
| Model | HXD-HDMI-MIPI-V2 | ||
| Outline Dimension | 60.6mm×50.8 mm×10mm (L×W×H) | ||
| Display Color | 24-bit (3×8, 16.7M Colors) | ||
| Panel Interface | MIPI | ||
| Resolution Coverage | LCD panels from 720×1280 up to 1920×1200 | ||
| Signal Input | Input Signal Type | HDMI | |
| Input Signal Range | HDMI Input Range | PC (VGA/HDMI) up to 1920×1200 | |
| Supply Voltage | Min:10V / Typical:12V / Max:13V | ||
| Operating Current | Min:0.1A / Typical:0.3A / Max:0.4A | ||
| Standby Power | ＜0.4W | ||
| Panel Supply Voltage | 3.3V/5V selectable via jumper | ||
| Max Panel Load (Ambient Temp.) | 1.8A@3 .3V、2.5A@5V | ||
| Communication Interface | USB、I²C | ||
| Operating Temperature | -20℃～70℃ | ||
| MTBF | ＞50,000 Hours | ||

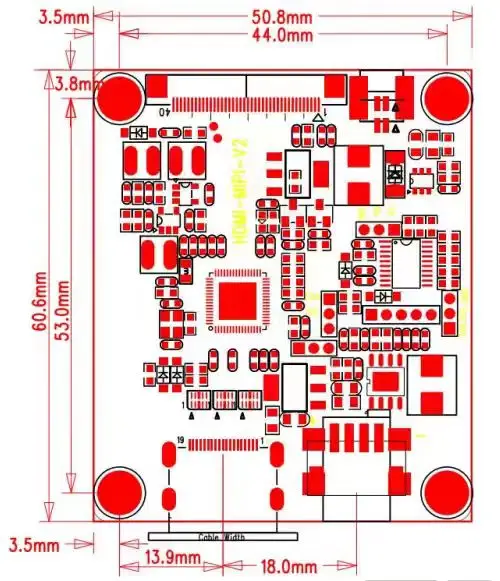

The dimension layout drawing of the HXD-HDMI-MIPI-V2 LCD display driver board is provided below for your reference:
✅️ In stock, guaranteed quality. One-stop & customizable solutions. Contact us for more details!
HXD-HDMI-MIPI-V2 driver board is compatible with various MIPI LCD screens and is suitable for portable medical devices such as handheld testers and portable patient monitors, meeting the requirements of portable equipment. It is also suitable for industrial display equipment such as small industrial control panels and equipment status displays; its wide temperature and voltage range design enables it to adapt to the complex power supply and temperature conditions found in industrial workshops. Furthermore, it is suitable for auxiliary display screens in self-service equipment such as vending machines and self-service testing machines.
1. TFT LCD Display Panel: Available in multiple resolutions ranging from 640×480 up to 1920×1200, MIPI interface, optional 3V/5V panel power supply, industrial grade wide-temperature option is available.
2. Touch Screen: Capacitive or resistive touch optional. We customize touch solutions as required, supporting frame bonding or full bonding.
3. HXD-HDMI-MIPI-V2 LCD Controller Board: Core drive unit with HDMI input, MIPI output, built-in LED backlight driver circuit.
4. Backlight Driver Board: Specially matched to screen backlight parameters for stable constant-current backlight drive.
5. OSD Keypad Board and Matching Cables: For on-screen menu adjustment of brightness, contrast, color temperature and source switching. Cable length, connector type, pin assignment, and other specifications can be freely tailored to your device structure. Good cable design helps optimize internal wiring, enhance anti-interference capability, reduce assembly difficulty, and improve production efficiency.
Q1: Are you a trading company or an actual manufacturer? What are your core strengths?
A: We are a professional supplier specializing in industrial LCD displays and comprehensive LCD display drive solutions. We maintain long-standing partnerships with major industrial LCD panel brands—such as AUO, BOE, IVO, Sharp, Innolux, and Kyocera. And our own factories produce all necessary LCD panel accessories, including touch screens, LCD control boards, LED backlight driver boards, cables, and converters. Our core strength lies in providing "one-stop technical support", we not only supply high-quality industrial LCD panels but also tailor custom display solutions to your specific application requirements, ensuring the best possible quality and price.
Q2: If the standard specifications of HXD-HDMI-MIPI-V2 do not perfectly match my LCD screen, do you offer customization or modification services?
A: We offer a flexible and diverse range of customisation services. Please provide the full technical specifications of your LCD screen, and we will tailor our services to your specific requirements, including interface replacement, cable modifications, power supply parameter adjustments and more. Furthermore, this LCD driver board features several expansion pins, which are set to the ‘NC’ (not connected) state by default. If you require additional functional features, our technical team can develop and activate these reserved interfaces to create the most suitable solution for your project.
Q3: Can we request samples for small-scale compatibility testing?
A: We strongly recommend that customers conduct sample testing before placing bulk orders. We maintain consistent stock of HXD-HDMI-MIPI-V2 standard LCD panel driver board and can provide specifications for testing samples.
Q4: What is HXD-HDMI-MIPI-V2 LCD control board warranty period?
A: We provide comprehensive technical after-sales support. Should your technical staff have any questions during assembly, our engineers can offer timely remote assistance via email. We provide a one-year official warranty for our industrial-grade LCD driver boards.
HXD285DTC-V1 LCD control board offers stable performance and a wide range of features, enabling the conversion of HDMI, VGA, DP and Type-C signals for output as LVDS or eDP signals. This driver board supports resolutions up to 2560×1600(2K) and operates on a DC input voltage range of 8V to 24V, making it ideal for industrial displays, embedded devices and custom monitor solutions.
| Model | HXD285DTC-V1 |
| Maximum resolution | 2560×1600 (2K) |
| Mechanical Dimension | 125.4mm×70.7mm×16.5 mm |
| Operating Temperature | -20~70℃ |
| Input Interface | HDMI, VGA, DP, Type-C |
| Output Interface | LVDS, eDP |
HXD2680HV-V5 LCD control board is mainly used to support TFT LCD displays, with 1-channel HDMI, 1-channel VGA input interfaces, supporting LVDS output interfaces. Supporting resolutions up to 1920×1200 and -30℃ to 85℃ wide-temperature operation. HXD2680HV-V5 features a small-size with overall dimensions of 74.82 mm × 53 mm × 16.5 mm (L × W × H). Its small footprint makes it ideal for installation in confined spaces, and it is suitable for small-screen devices, handheld terminals, and compact industrial instruments.
| Model | HXD2680HV-V5 |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 74.82mm x 53mm x 16.5mm |
| Operating Temperature | -30℃ to 85℃ |
| Input Interface | VGA, HDMI, AV |
| Output Interface | LVDS (Dual 8-bit) |
HXD2686DHV-V1 LCD control board is a reliable and versatile solution for converting HDMI, VGA, DP signals into LVDS and EDP outputs. Supporting resolutions up to 2K and a wide voltage range of DC 8V~24V input, HXD2686DHV-V1 screen motherboard is ideal for industrial displays, embedded systems, and custom LCD integration projects.
| Model | HXD2686DHV-V1 |
| Maximum resolution | 2560×1600 (2K) |
| Mechanical Dimension | 109.5mm×60 mm×16 .5mm |
| Operating Temperature | -20~70℃ |
| Input Interface | HDMI, VGA, DP |
| Output Interface | eDP (2-lane/4-lane), LVDS (dual 8-bit) |
