HXD2680HV-V5 LCD control board is mainly used to support TFT LCD displays, with 1-channel HDMI, 1-channel VGA input interfaces, supporting LVDS output interfaces. Supporting resolutions up to 1920×1200 and -30℃ to 85℃ wide-temperature operation. HXD2680HV-V5 features a small-size with overall dimensions of 74.82 mm × 53 mm × 16.5 mm (L × W × H). Its small footprint makes it ideal for installation in confined spaces, and it is suitable for small-screen devices, handheld terminals, and compact industrial instruments.
♦ Small-size LCD panel driver board: Features a streamlined design and compact size, saving space inside the device when installing small screens.
♦ Synchronization types: Separate/Composite/SOG sync support
♦ The backlight power supply supports 5V/12V and allows for PWM duty cycle adjustment to control backlight brightness
♦ Display output interface: Dual 8-bit LVDS, supporting resolutions up to 1920x1200
♦ Wide operating temperature range: -30°C to +85°C
♦ Easy operation & stable reliable performance
♦ Compatible with a wide range of LCD panels
Model
HXD2680HV-V5
Outline Dimension
74.82mm×53 mm×16.5mm (L×W×H)
Display Color
24-bit (3×8, 16.7M Colors)
Panel Interface
LVDS
Resolution Coverage
LCD panels from 640×480 up to 1920×1200
Signal Input
Input Signal Type
VGA, HDMI, AV
Input Signal Range
HDMI Input Range
PC (VGA/HDMI) up to 1920×1080 @ 60Hz; resolutions below this can reach 75Hz
VGA Input Range
Supply Voltage
Min:6V / Typical:12V / Max:24V
Operating Current
Min:0.2A / Typical:0.3A / Max:0.5A
Standby Power
＜0.6W
Panel Supply Voltage
3.3V/5V/12V selectable via jumper
Max Panel Load (Ambient Temp.)
1.69A@3.3V, 2.32A@5V, 3A@12V (12V displays are limited by the power supply's capacity)
Operation Interface
Visual OSD menu
Communication Interface
Digital buttons, infrared(IR), I²C master (reserved)
Operating Temperature
-30℃～85℃
MTBF
＞100,000 Hours

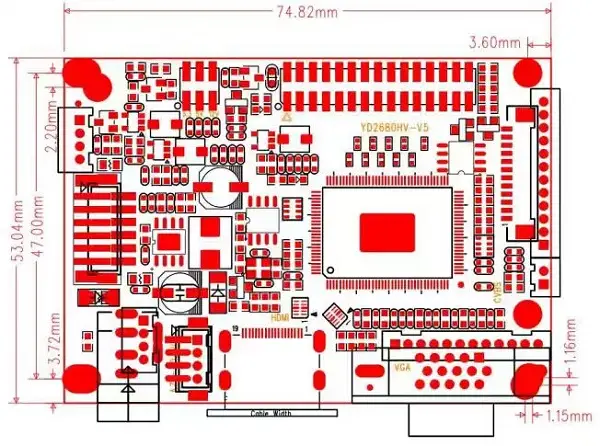

Layout drawing of small-size HXD2680HV-V5 LCD display driver board is provided below for your reference:

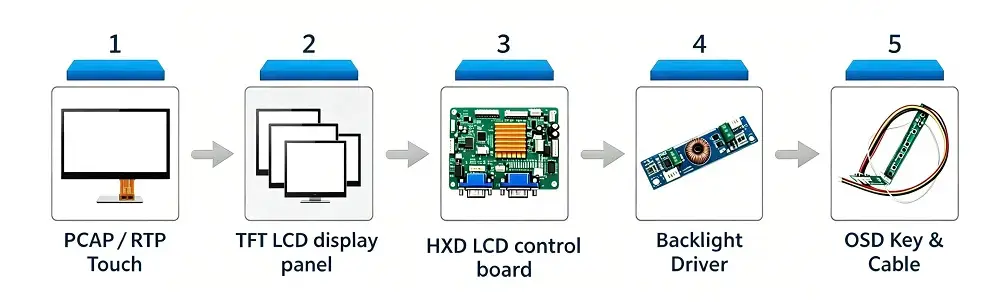

1. TFT LCD Display Panel: Available in multiple resolutions ranging from 640×480 up to 1920×1200, LVDS interface, optional 3.3V/5V/12V panel power supply, industrial grade wide-temperature option is available.
2. Touch Screen: Capacitive or resistive touch optional. We customize touch solutions as required, supporting frame bonding or full bonding.
3. HXD2680HV-V5 LCD Controller Board: Core drive unit with HDMI/VGA/AV input, LVDS output, supports auto brightness adjustment and multi sync signals.
4. Backlight Driver Board: Specially matched to screen backlight parameters for stable constant-current backlight drive.
5. OSD Keypad Board: For on-screen menu adjustment of brightness, contrast, color temperature and source switching.
6. Matching Cables: Cable length, connector type, pin assignment, and other specifications can be freely tailored to your device structure. Good cable design helps optimize internal wiring, enhance anti-interference capability, reduce assembly difficulty, and improve production efficiency.
Q1: How do I choose the right LCD control board?
A: First, identify the interface type of the TFT LCD screen (MIPI, LVDS, eDP, V-by-One), then select the desired input interface (VGA/DVI/DP/HDMI). These two parameters will help you narrow down the proper AD controller quickly.
Q2: What are the main application scenarios of HXD2680HV-V5 LVDS controller board?
A: HXD2680HV-V5 LVDS controller board is widely used in industrial automation equipment (HMI human-machine interface), digital signage and advertising displays, vehicle display terminals, embedded development projects and upgrading and retrofitting displays for existing equipment. It features wide-temperature operation and stable performance.
Q3: How is the stability of the LCD control board guaranteed?
A: The LCD control boards have passed -40℃~85℃ high and low temperature tests and 72-hour continuous operation aging tests.
Q4: How difficult is the installation of LCD control boards, and is installation guidance provided?
A: Adopting standardized interfaces and modular design, the installation process is simple and compatible with industry-universal mounting holes. Remote assistance from technical personnel is also available.
Q5: Does HXD2680HV-V5 LCD driver board come with a warranty?
A: Yes. We offer a 12-month warranty for standard products, starting from the date of receipt. The warranty covers manufacturing defects excluding man-made damage.
