HXD-HP98
HXD-HP98

HXD-HP98

Product model: HXD-HP98
Operating temperature range-20 to 60℃.
2 HDMI interfaces and 2 DP interfaces, supporting VBY1 and eDP output interfaces
It supports resolutions up to 4096 x 2160.

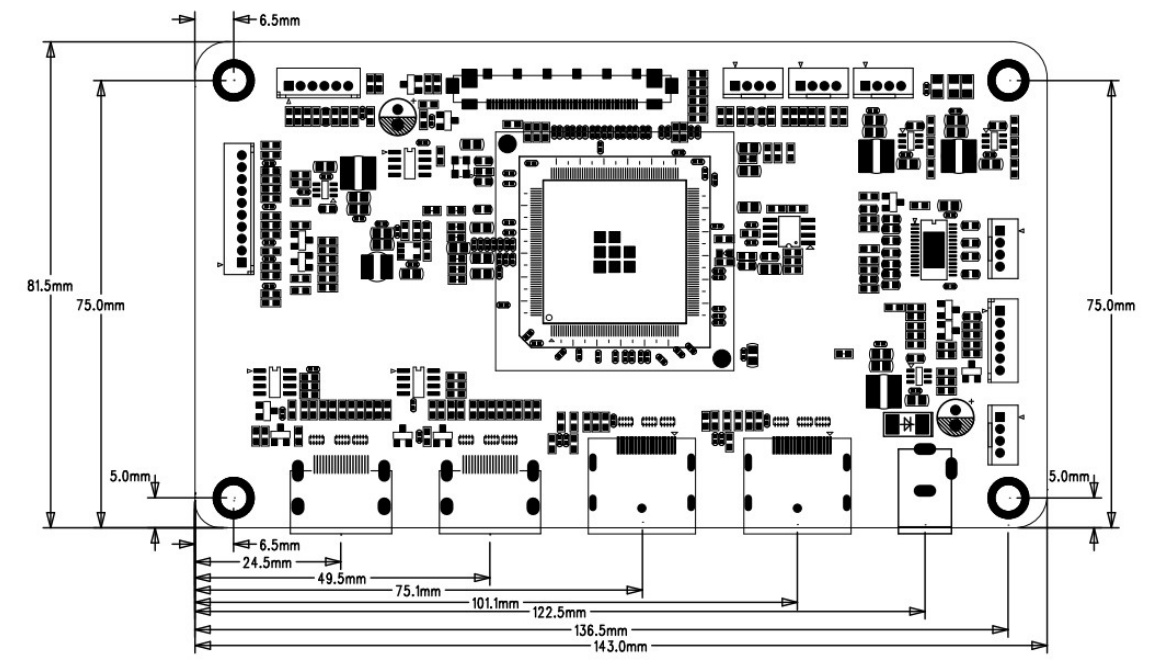

Size specifications: length x width x height 81.5mm x 143mm x 15mm
Download PDF Send Message

Product overview

Built-in BY1 interface, supporting the highest resolution of 4096x2160@60Hz for LCD Panel.
Supports 4K DP signal output, and supports two formats of eDP LCD screen, namely HBR and HBR2.
Integrated 4 composite digital interfaces, capable of supporting HDMI/DP interfaces.
Supports USB upgrade.

Product feature

Display Output Maximum Resolution 4096x2160
Output Interface VBY1/eDP
Video Input DP Up To 4096x2160@60Hz DP 1.4
HDMI Up To 4096x2160@60Hz HDMI 2.0
Line Frequency Range 30-75KHz
Field Frequency Range 50-75Hz
Audio Output Maximum Output 2X10W@ 8Ω
Power Supply Operating Voltage 12V
Screen Drive Voltage 3V/5V/10V/12V/VCC
Standby Power Consumption 0.252W (motherboard only)
