HXD-QHD LCD panel driver board is designed for 2K TFT LCD display panels and supports multiple resolutions up to 2560x1600, 2560x1440, 260x1080, 2560x2048. HXD-QHD LCD control board provides flexible signal conversion from VGA, DVI, HDMI and Displayport interface to LVDS output. HXD-QHD supports flip, rotate display. Frame convert and gray display are also available options. Equipped with high-performance HD signal processing chip, this LCD control board supports diverse standard and non-standard signal formats. Premium components are adopted to ensure outstanding operating stability.
| Model | HXD-QHD |
| Maximum resolution | 2560 x 2480 |
| Mechanical Dimension | 140mm x 120mm x 20mm |
| Operating Temperature | -40~70℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 HDMI input, 1 Displayport input, 1 audio input |
| Output Interface | 2 * 8W speaker output, 4 channels 10bit LVDS output |
♦ Support Flip, Rotate Display
HXD-QHD LVDS controller board supports mirror, LCD screen flip and multi-angle screen rotation without the need for additional external converters. It is compatible with a variety of non-standard installation methods, such as wall-mounted, ceiling-hung, inverted and embedded side-mounted equipment. No need to adjust the physical orientation of the LCD screen, the display orientation can be switched directly via the LCD driver board settings, significantly structural design restrictions.
♦ Support Frame Convert
The LCD control board supports frame conversion, automatically matches different frame rates between signal source and LCD panel. It can be used with a variety of devices that output at different frame rates, such as surveillance cameras, media players and industrial control hosts, ensuring smooth video output without motion blur.
♦ Support Gray Display
This driver board is compatible with industrial monochrome grayscale LCD panels and outputs multi-level grayscale images, catering to application scenarios that do not require color displays, such as industrial inspection equipment, simple medical terminals and industrial control operation panels. With optimised greyscale signal output timing, the greyscale transitions are smooth and seamless, and the greyscale levels are displayed clearly, making it a cost-effective display solution for industrial control, inspection and equipment terminals.
♦ Compatible With Multiple 2K HD Resolutions
Supports multiple QHD resolutions up to 2560×1600, 2560×1440, 2560×10800 and 2560×2048. It faithfully reproduces the fine details of 2K high-definition images, with full color gradation and no loss due to compression. Compatible with various 2K LVDS LCD display panels, a single LCD driver board can be used with multiple 2K LCD display screens, enhancing the versatility of the solution.
♦ Built-in 2×8W dual-channel audio amplifier
Featuring a built-in dual-channel 8W audio amplifier, it requires no additional external amplifier module and can output stereo audio directly to external speakers. The audio output is noise-free, with clear distinction between vocals and background sounds, making it suitable for digital signage, self-service terminals and in-vehicle displays equipped with voice announcement and video playback functions.
| Display output | Maximum resolution | Max:2560x2048 | ||||
| Output Interface | Single/Dual/LVDS | |||||
| Support signal | Analog RGB | Horizontal Freq | 30-120KHz | |||
| Vertical Freq | 50-75Hz | |||||
| 0.7Vp-p@75ohm | ||||||
| Separate/Composite/SOG sync support | ||||||
| Digital DVI | Horizontal Freq | 30-120KHz | ||||
| Vertical Freq | 50-75Hz | |||||
| Display port input | Supports 2.7Gbps and 1.62Gbps per lane | |||||
| OSDKeypad | Power,Menu,Exit,Plus,Minus | |||||
| Menu type | Graphical Menu | |||||
| Language support | Supports 8 languages including Chinese and English | |||||
| Function operations | Picture | Mode/Brightness/Contrast/Saturation/Sharpness/Hue | ||||
| FUNCTION | Language/Reset/Color Temp. | |||||
| PC | Clock | Phase | H position | V position | Auto configure | |
| Power | Stand-by | <1W 12Vstb/200mA | ||||
| Input | 12V/dc Note1: | |||||
Note 1: Please test the maximum power consumption based on actual usage conditions.
PCB thickness: 1.6 mm
Total height: 16 mm

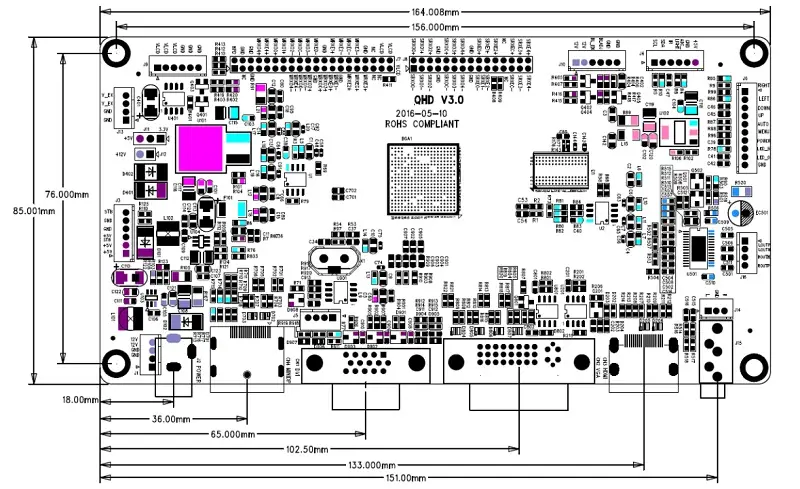

Dimensions: 164 x 85 mm
Zhengzhou Hengxinda Technology Co., Ltd. is a professional supplier dedicated to industrial LCD displays, various touch panels, LCD controller boards, and industrial TFT LCD display solutions. All TFT LCD panels we supply are well-established and reputable products from brands including Innolux, AUO, BOE and others, and have undergone strict testing before delivery. We provide resistive and capacitive touch screens, and can customize touch solutions according to your requirements. Our factory applies strict standards and standardized operations to bonding technology to ensure high bonding quality.We offer different bonding methods — full bonding or frame bonding — based on your actual application scenarios.
We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and LCD driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD display panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.
Q1: Which types of LCD screens is the HXD-QHD driver board compatible with?
A: The LCD control board works with all 2K TFT LCD display panels within supported resolutions, it also compatible with industrial monochrome and greyscale screens, widely used in industrial control, medical equipment, charging pile displays, vehicle-mounted screens and advertising machines.
Q2: Can the HXD-QHD LCD control board be fitted with auto dimming function?
A: Yes, the screen motherboard reserved light sensor interface. By fitting a light sensor module, the backlight can be automatically adjusted according to ambient light levels, balancing viewing quality with energy efficiency.
Q3: Can you supply matching LCD display panels, touch screens and cables? Do you offer customization service?
A: Matching LCD displays, touch panels and all kinds of cables are available. We also provide interface customization, hardware revision and function customization services, feel free to send us your requirements.
Q4: What’s the warranty period of HXD-QHD LCD motherboard?
A: All our LCD driver boards enjoy a 12-month warranty. We provide complete after-sales support for non-artificial quality faults within the warranty period.
Q5: Do you have a MOQ for your products?
A: We do not have a MOQ for samples. However, for subsequent purchases of the same product, we do have a MOQ requirement, please contact our sales manager for further details if needed.
HXD-VD68 LCD panel driver board supports VGA and DVI signal input, and LVDS signal output. HXD-VD68 LCD control board can operate stably within a wide temperature range of -20℃ to +60℃. Supporting resolutions up to 1920×1200. This LCD driver board supports automatic light sensing, black-and-white display, OSD display and control, multi-language options, and factory mode.
| Model | HXD-VD68 |
| Maximum resolution | 1920×1200 |
| Mechanical Dimension | 123mm x 63mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 audio input |
| Output Interface | 1 audio output, Dual LVDS output |
HXD-EDP58H LCD panel driver board is a eDP controller board that supports VGA, DVI, HDMI signal input, and eDP signal output. The LCD control board supports -30℃~+70℃ wide temperature operation. Supporting resolutions up to 1920×1200. HXD-EDP58H LCD motherboard supports external power control for large screens, with ultra-low standby power consumption. Auto dimming and infrared remote control functions are available. The main board adopts MSTAR signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.
| Model | HXD-EDP58H |
| Maximum resolution | 1920×1200 |
| Mechanical Dimension | 139mm x 85mm x 14mm |
| Operating Temperature | -30~70℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 HDMI input, 1 audio input |
| Output Interface | 2 x 8W speaker output, EDP output |
HXD-VDH68 LCD panel driver board is designed for small and medium-sized LCD display panels and supports multiple resolutions up to 1920×1200. HXD-VDH68 LCD control board provides flexible signal conversion from HDMI, VGA and DVI interface to output options including LVDS and eDP. Supports auto dimming, black-and-white display, OSD display & control, multi-language switching and factory mode. HXD-VDH68 LCD display driver board is widely applied to industrial displays, vehicle displays, and medical equipment displays.
| Model | HXD-VDH68 |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 139mm x 66mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 HDMI input, 1 audio input |
| Output Interface | 2 x 8W speaker output, Dual LVDS output. |
