HXD-V53 LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI, YPBPR and CVBS signal inputs, as well as LVDS and CVBS signal outputs. Supports 1080P full HD multimedia decoding. Optional 2×6W amplifier, or audio transmission via adjustable FM radio for vehicle radio reception. Media intercutting available during playback. True-color image/video boot screen, vertical flip, multi-language OSD and IR remote control supported. HXD-V53 LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.
| Model | HXD-V53 |
| Maximum resolution | 1920 x 1080 |
| Mechanical Dimension | 132.13mm x 82.13mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 2 CVBS input, 1 VGA input, 1 HDMI/DVI input, 1 YPBPR input, 1 USB (capable of reading high-definition video and images), 1 audio input |
| Output Interface | Dual LVDS output, 1 CVBS output, 1 audio output |
• Wide operating temperature
Working temperature ranges from -20℃ to +60℃. The HXD-V53 LCD screen motherboard can withstand harsh environments with drastic temperature fluctuations.
• Remote control functionality supported
Supports control via infrared remote control signals, HXD-V53 LCD display driver board supports full remote operation via matching IR controller, including volume adjustment, image parameter setting, power on/off and more. There is no need to touch the device itself at close range, making management more convenient.
• Full HD 1080P multimedia decoding
Built-in full HD hardware decoding chip natively supports smooth 1080P multimedia playback, compatible with mainstream video, image and audio formats without lag or stutter during loop play.
• Support for flip/mirror function
HXD-V53 LCD display driver board integrates comprehensive image transformation processing functions, supporting image flipping, mirroring and rotation, and covering a wide range of display modes. For non-standard installation scenarios such as overhead-mounted vehicle displays, mirrored advertising screens in shop windows and vertically mounted devices, it ensures that the image can be viewed correctly without the need to adjust the physical orientation of the LCD screen.
• Optional 2×6W dual-channel amplifier output or FM output
Reserved amplifier circuit supports optional 2×6W dual-channel power amplifier module, which can directly drive speakers without external audio amplifiers, simplifying internal wiring. The audio also can be transmitted via FM and received via the in-car radio (the FM frequency can be set to any value via the factory menu).
• Supports full true-color startup screen (images, videos)
Supports true-color static boot images and short startup videos with vivid color reproduction that sets them apart from standard monochrome boot screens. Corporate logos and promotional videos can be customised and will play automatically when the device is powered on, enhancing the overall brand image and recognition of the device. Suitable for in-vehicle and commercial advertising displays.

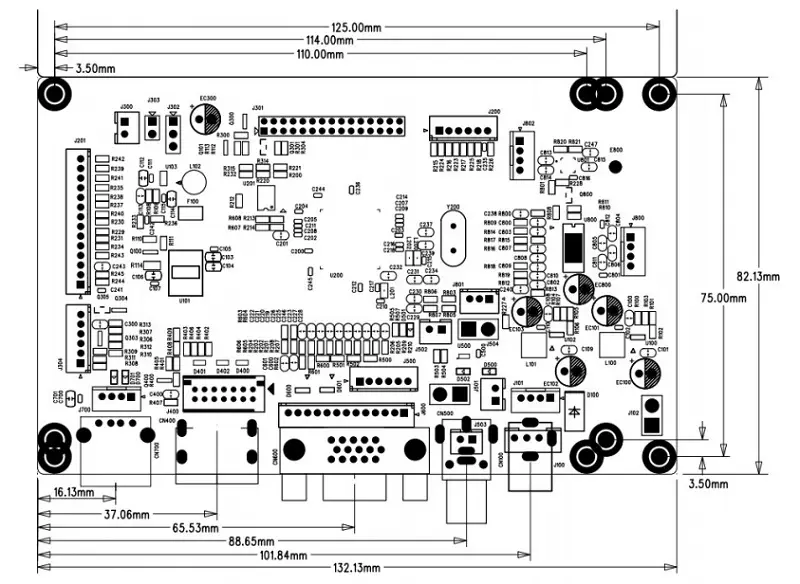

PCB thickness: 1.60 mm
Dimensions: 132.13 x 82.13 mm
Total height: 15 mm
• Commercial Advertising Displays / Digital Signage
HXD-V53 LCD control board supports 1080P full HD hardware decoding. Rotatable & flippable image and customizable true-color brand boot logo are available. Widely applied to mall vertical signage, store window displays and elevator advertising screens for 7×24h continuous operation, serial loop ports enable synchronous control of multiple LCD display screens.
• On-Board Display / In-Vehicle Rear View Monitor
Built-in mirror function corrects reverse camera image orientation. IR remote and OSD adjustment are available. The FM audio solution eliminates speaker wiring, perfect for rear-view displays in vehicles.

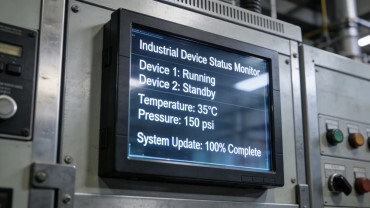

• Industrial Control Panels / Workshop Monitoring Screens
HXD-V53 LCD driver board supports multiple video inputs with 3D noise reduction, flip & mirror functions for side-mounted or inverted installation, stable display of workshop monitoring and equipment data. Suitable for workshop control panel displays, equipment monitoring screens, dispatch displays and similar applications.
As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
We supply complete integrated solutions consisting of LCD panel with controller board. We offer compatible cables, driver boards, touch screens and other accessories. We offer customization services, including interface modifications, the addition or removal of features, and hardware parameter tuning. We can devise a comprehensive display solution tailored to your equipment’s installation space, signal requirements, operating environment, resolution and power supply conditions, providing a one-stop solution to all your display requirements.
• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.
• Rich Industry Experience: With over 10 years of in-depth involvement in sectors including industrial control, medical equipment, automotive electronics, rail transit, and military applications, we deeply understand the unique requirements of each industry.
• Professional Technical Support: Our engineering team provides full pre-sales consultation (product selection/cost optimization) and after-sales service (1-year warranty, fast response).
Q1: Can I customize the boot logo? What image quality does it support?
A: True-color high-definition startup screen is programmable. Custom exclusive brand logos are available with vivid, delicate color reproduction to upgrade product grade.
Q2: Can you supply matching LCD display panels, touch screens and cables? Do you offer customization service?
A: Matching LCDs, touch panels and all kinds of cables are available. We also provide boot logo customization, hardware revision and function customization services, feel free to send us your requirements.
Q3: Is the power amplifier included as standard on the HXD-V53 LCD driver board?
A: The amplifier is not standard accessory. We can pre-install the 2×6W dual-channel amplifier upon order request to simplify machine wiring and structure.
Q4: Do you have a MOQ for your products?
A: We do not have a MOQ for samples. However, for subsequent purchases of the same product, we do have a MOQ requirement, please contact our sales manager for further details if needed.
Q5: What is the warranty period for HXD-V53 screen motherboard?
A: The standard warranty period is 12 months. Faults not caused by human error will be repaired or replaced free of charge.

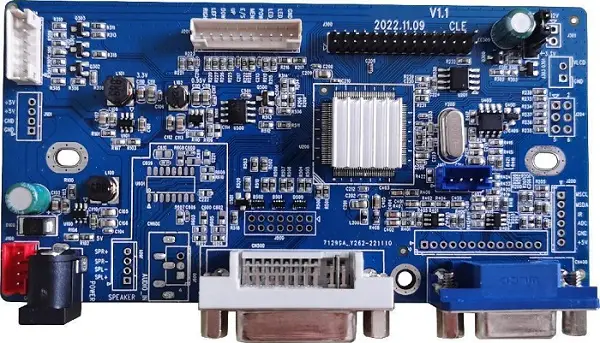

HXD-VD68 LCD panel driver board supports VGA and DVI signal input, and LVDS signal output. HXD-VD68 LCD control board can operate stably within a wide temperature range of -20℃ to +60℃. Supporting resolutions up to 1920×1200. This LCD driver board supports automatic light sensing, black-and-white display, OSD display and control, multi-language options, and factory mode.
| Model | HXD-VD68 |
| Maximum resolution | 1920×1200 |
| Mechanical Dimension | 123mm x 63mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 audio input |
| Output Interface | 1 audio output, Dual LVDS output |

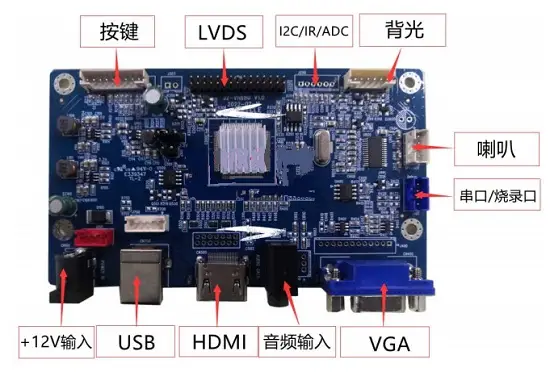

HXD-VH68U LCD screen control board adopts HDMI and VGA input and LVDS output for wide compatibility. Wide temperature operation. Supports automatic light sensing, rotary knob brightness adjustment, multiple languages, DICOM-compliant brightness control, and gamma control (with 7 preset gamma curves). With maximum resolution up to 1920 x 1200, it presents sharp and clear images, perfectly suited for various high-definition display applications.
| Model | HXD-VH68U |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 121mm x 70mm x 16mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 HDMI input, 1 USB adapter input, 1 audio input |
| Output Interface | 2 x 8W speaker output, Dual LVDS output |

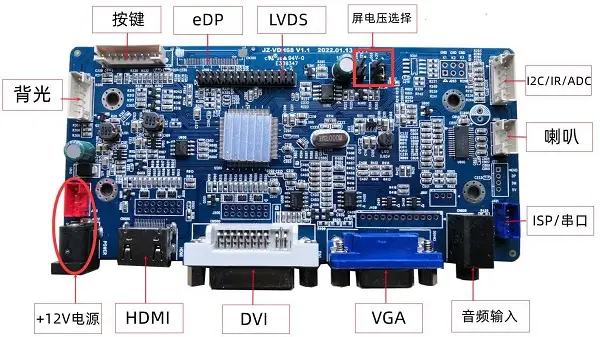

HXD-VDH68 LCD panel driver board is designed for small and medium-sized LCD display panels and supports multiple resolutions up to 1920×1200. HXD-VDH68 LCD control board provides flexible signal conversion from HDMI, VGA and DVI interface to output options including LVDS and eDP. Supports auto dimming, black-and-white display, OSD display & control, multi-language switching and factory mode. HXD-VDH68 LCD display driver board is widely applied to industrial displays, vehicle displays, and medical equipment displays.
| Model | HXD-VDH68 |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 139mm x 66mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 HDMI input, 1 audio input |
| Output Interface | 2 x 8W speaker output, Dual LVDS output. |
