HXD-V56
HXD-V56

HXD-V56

Product model: HXD-V56
Operating temperature range-20 to 60℃.
It supports resolutions up to 1920 x 1200.

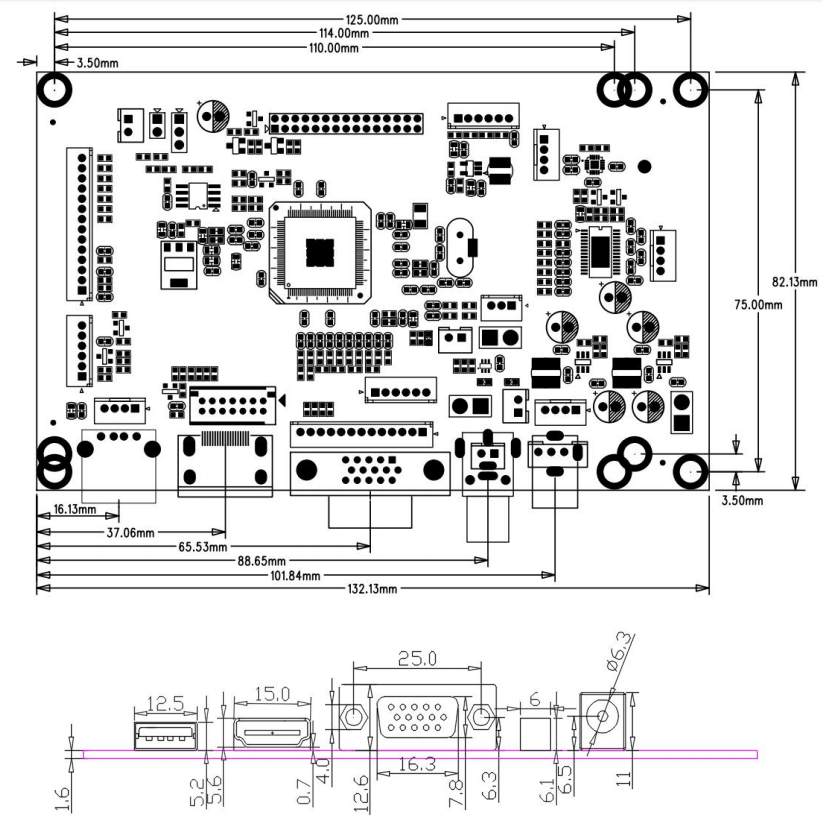

Size specifications: length x width x height 125mm x 83.5mm x 15mm
2-channel CVBS signal input, 1-channel CVBS output, 1-channel VGA, 1-channel HDMI/DVI, 1-channel YPBPR, 1-channel USB
Download PDF Send Message

Product overview

Operating temperature range: -20 to 60℃
Supports the maximum resolution up to 1920x1200
Can receive remote control function

Product feature

Product Features 2 channels CVBS signal input, 1 channel CVBS output, 1 channel VGA, 1 channel HDMI/DVI, 1 channel YPBPR, 1 channel USB
Format Support: NTSC M, NTSC-J, NTSC 4.43, PAL(B,D,G,H,M,N,I,Nc), 3D Image Filtering
OSD Display and Control
Support for Boot Screen
Support for Infrared Remote Control Signal
Support for Flip Function
Audio Input Function
Special Functions High-Definition Multimedia Decoding, Full HD 1080P Support, Optional 2x8W Amplifier Support on the Board.
Full Color Boot Screen.

Related Products

HXD-HP98

HXD-HP98

Product model: HXD-HP98
Operating temperature range-20 to 60℃.
2 HDMI interfaces and 2 DP interfaces, supporting VBY1 and eDP output interfaces
It supports resolutions up to 4096 x 2160.
Size specifications: length x width x height 81.5mm x 143mm x 15mm

Contact Us

Product Manager:

Send Message
HXD-UHD

HXD-UHD

Product model: HXD-UHD
Operating temperature range-20 to 60℃.
1 VGA input, 1 DVI input, 1 HDMI input, 1 Displayport input, 1 audio input, 2 x 8W speaker output. V-By-ONE or LVDS or EDP output
It supports resolutions up to 4096 x 2160.
Size specifications: length x width x height 172mm x 115mm x 16mm

Contact Us

Product Manager:

Send Message

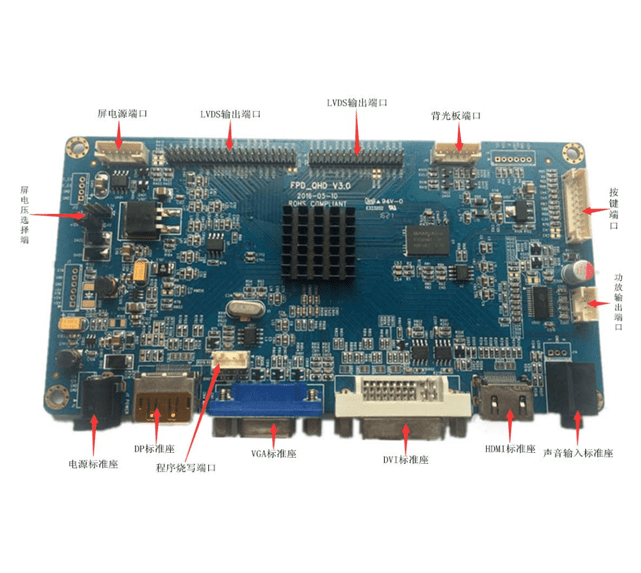

HXD-QHD

HXD-QHD

Product model: HXD-QHD
Operating temperature range-40 to 70℃.
1 VGA input, 1 DVI input, 1 HDMI input, 1 Displayport input, 1 audio input, 2 * 8W speaker output. 4 channels 10bit LVDS output
It supports resolutions up to 2560 x 2048.
Size specifications: length x width x height 140mm x 120mm x 20mm

Contact Us

Product Manager:

Send Message
HXD-HDP

HXD-HDP

Product model: HXD-HDP
Operating temperature range-40 to 70℃.
1 VGA input, 1 DVI input, 1 HDMI input, 1 Displayport input, 1 audio input, 2 * 8W speaker output. 2 channels LVDS output.
It supports resolutions up to 1920 x 1200.
Size specifications: length x width x height 164mm x 85mm x 16mm

Contact Us

Product Manager:

Send Message
