LQ190E1LX78

sRGB, Ultra-high Brightness, White LED Backlight, Lifespan exceeding 60,000 hours, Front-mounted Terminals, and Matte surface.

Download PDF Send Message

Basic Parameters

Brand	Sharp	Type	a-Si TFT-LCD
Model	LQ190E1LX78	Surface Finish	Metta (Haze 3%) Hard coating (3H)
Size (inch)	19	Pixel Layout	RGB Vertical Strip
Outline Dimension (WxHxD mm)	398.1(W)×329.5(H)×18.5(D)	Operating Mode	ASV
Active Area (WxH mm)	376.32(W)x301.056(H)	Backlight Type	WLED
Viewing Angle	85/85/85/85	Interface	LVDS, 30 pins
Resolution	1280x1024 (SXGA)	Response Time	35 (Typ.)(Tr/Td) ms
Brightness (cd/m²)	1200	Dispay Colors	16.7M, 100%sRGB
Contrast Ratio	1500:1	Operating Temperature (°C )	-20~ 60
Operating Voltage	5V	Storage Temperature (°C )	-25 ~ 70
Operating Frequency	60Hz	Weight	2.30Kgs
Application	Industrial Control, Game Imaging, Outdoor High Brightness Environment

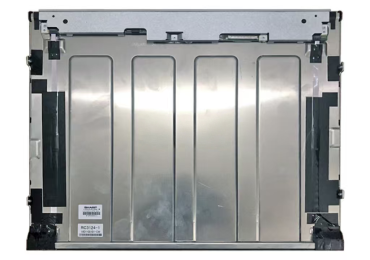

Sharp LQ190E1LX78 Product Real Shot

Why Choose Us?

✅12 Years of LCD Supply Chain Expertise
Since 2013, we’ve specialized in LCD distribution and customization, representing 7 top brands like AUO, TIANMA, and BOE. With over 100,000 panels in stock and 24/7 global shipping, our supply chain is rock-solid and reliable.

✅Backed by 7 International Certifications
ISO 9001/13485/14001, CE, RoHS, and IATF 16949 (in progress) — every shipment includes original test reports, ensuring zero export hurdles.

✅One-Stop Engineering Customization
Our 15-member expert team delivers prototypes in 7 days and mass production in 30. We support IP67 protection, -40~85℃ extreme temps, MIL-STD shock resistance, and sunlight-readable displays.

✅Proven by 3000+ Global Clients
Serving industry leaders like CRRC, Philips Healthcare, and BYD Automotive, we’ve delivered over 3 million flawless panels with zero returns and 95+ NPS satisfaction.

📩 Request Full Free Quotation & Custom Solution Now → Email & WhatsApp & Wechat

FAQ

1. What does the 1200 brightness rating of this display actually mean?
A: 1200 cd/㎡ represents industrial-grade high brightness, ensuring clear visibility even in strong light. It's ideal for outdoor advertising, in-vehicle displays, industrial control terminals, and similar applications.

2. What are the product's resolution and aspect ratio?
A: Resolution: 1280×1024, 4:3 aspect ratio. Supports full HD signal input with rich, undistorted image detail.

3. What is the lifespan?
A: Mean Time Between Failures (MTBF) ≥60,000 hours. One-year full-unit warranty provided.

4. Does it support wide-temperature operation?
A: Supports -20°C to 60°C wide-temperature operation. Features dustproof and EMI-resistant design for complex environments like outdoors and industrial workshops.

5. Does the screen have protective features?
A: Equipped with AG anti-glare tempered glass (3H hardness) for scratch resistance and durability, while reducing reflections and enhancing viewing angles.

6. Does the company offer customization services?
A: Supports bulk customization, including adjusting brightness parameters, adding/removing interface types, and optimizing dimensions to meet specific application requirements.

7. What is the shipping lead time?
A: Standard orders ship within 3-5 business days. We support FedEx cross-border delivery and provide complete customs documentation to facilitate international clearance.

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
AUO	G190EG01 V1	19"	1280×1024	350 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G190ETN01.001	19"	1280×1024	350 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G190EAN01.5	19"	1280×1024	700 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G190ETN01.204	19"	1280×1024	350 nits	1000:1	WLED	LVDS	30	-30~85℃
AUO	G190ETN01.4	19"	1280×1024	450 nits	1000:1	WLED	LVDS	30	-30~85°C
AUO	G190EG02 V1	19"	1280×1024	300 nits	2000:1	WLED	LVDS	30	0~60℃
AUO	G190EG02 V104	19"	1280×1024	350 nits	2000:1	WLED	LVDS	30	-20~70℃
AUO	G190EAN01.0	19"	1280×1024	300 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G190EAN01.3	19"	1280×1024	330 nits	1000:1	WLED	LVDS	30	0~50°C
