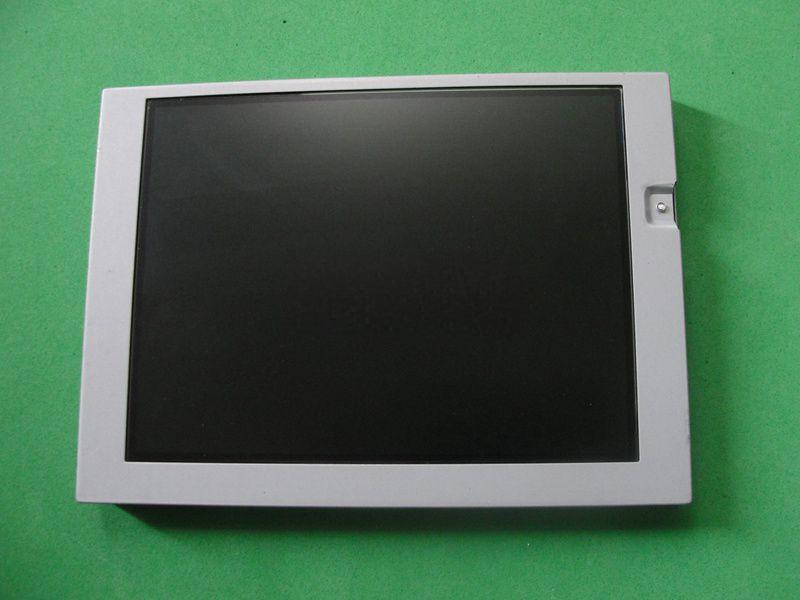

LT057AC47000

LT057AC47000

Download PDF Send Message

Basic Parameters

Panel Brand	Toshiba Mobile Display	panel model	LT057AC47000
Panel size	5.7-inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	640(RGB)×480, VGA, 141PPI	pixel layout	RGB vertical stripes
display area	115.2(W)×86.4(H) mm	Appearance size
Brightness(cd/m²)		the contrast	500:1 (Typ.) (TM)
visual Angle	60/60/55/45 (Typ.) (CR≥10)	surface treatment
number of colors	262K/16.2M	light source type	WLED , 70K hours
Panel Weight		response time	15/25 (Typ.) (Tr/Td) ms
viewing direction	12 o'clock	backlight system
frame frequency		be the same with	industrial engineering
signal interface	LVDS (1 ch, 6/8-bit) , 20 pins , Terminals	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Working temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P0570VGF1ME00	5.7"	640×480	300 nits	1000:1	WLED	Parallel RGB	40	-20~70 ° C
AUO	G057VTN01.110	5.7"	640×480	550 nits	1000:1	WLED	CMOS	33	-30 ~85 °C
Innolux	G057VCE-TH1	5.7"	640×480	450 nits	1000:1	WLED	Parallel RGB	40	-30~85 ° C
AUO	G057QAN01.1	5.7"	320×240	800 nits	1000:1	WLED	CMOS	33	-30 ~85 °C
AUO	G057QTN01.0	5.7"	320×240	500 nits	700:1	WLED	CMOS	33	-30 ~85 °C
AUO	G057QTN01.4	5.7"	320×240	500 nits	700:1	WLED	CMOS	33	-30 ~85 °C
AUO	G057VN01 V220	5.7"	640×480	700 nits	1000:1	WLED	CMOS	33	-30 ~ 85 °C
