WLED backlighting, with LED driver, matte surface
When your industrial equipment requires a stable, durable, and long-lasting LCD TFT display panel, AUO N150XAN01.0 will be your ideal choice. We focus on providing "able to withstand, clear to view, and long-lasting" display core components for professional scenarios such as industrial control, automation equipment, and medical displays.
If your project is currently facing the following challenges:
• The equipment needs to operate stably and reliably in an industrial environment for an extended period of time, and has strict requirements for display reliability.
• The display panel needs to have a wide viewing angle to be suitable for observation from multiple angles.
• Search for cost-effective and highly compatible XGA resolution industrial LCD TFT display panels.
Then, please continue reading further ↓ , we have prepared a complete LCD TFT display solution for you.
Feature
Technical Specifications
Application Value
Industrial-Grade Reliability
Operating Temperature: -10°C ~ 60°C；
Contrast Ratio: 1000:1
3H Hard Coating Surface
Adapts to industrial temperature fluctuations, scratch-resistant, extends service life by over 30%
AHVA Wide-Viewing Angle Technology
89°/89°/89°/89° All-Around Viewing Angles；
No color shift from multiple viewing angles, suitable for medical diagnosis stations and control rooms requiring multi-angle viewing
Industrial Standard Interface

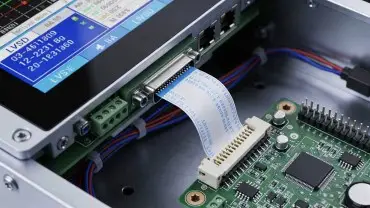

LVDS 20-pin Interface； 3.3V Standard Power Supply
Enables quick integration into existing medical equipment and industrial motherboards, shortens development cycles
Compact Structural Design
10mm Thickness；
920g Weight；
AUO Original A+ Grade LCD TFT Display Panel
Saves space in medical carts and portable equipment, ensures stable and reliable quality
• Model: HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080,
• Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200
• Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
• Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
• Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200
•Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
The supporting driver board adopts stable industrial scheme. All devices meet industrial standards. The board has been strictly tested and demonstrated. The recommended driver board is matched according to the parameters of the LCD TFT display panel. It expands the application of LCD TFT display panel. Detailed parameters of the driver board are described in detail on other pages. Contact us to obtain the customized solution ( or or WhatsApp) Whether you need sample testing, technical consultation or bulk purchasing, our professional team is always at your service.
Q1: Which payment methods are supported?
A: We support T/T , PayPal, and L/C. For small orders, payment can be made via WeChat or Alipay.
Q2: Can we customize the interface or appearance size according to our equipment?
A: Of course. We offer OEM & ODM customization, including parameters such as the shape, size, interface, and brightness of the LCD TFT displays. If you need it, we can also assist in developing additional functions through accessory driver boards.
Q3: Do you provide a touchscreen integration solution?
A: This model is a pure display module. However, we can provide infrared, resistive, and capacitive touchscreen bonding services, as well as a complete touch drive solution.
Q4: How long is the delivery cycle for bulk orders?
A: The inventory quantity varies for each model. Please contact the sales manager for more detailed information.
Q5: How is product quality guaranteed?
A: We offer a 12-month warranty. Non-human damage is covered, and the sold LCD TFT display panels can be repaired or replaced for free.
Q6: Is overseas shipping supported?
A: Global shipping is supported. Common logistics include DHL, FedEx, air freight, and sea freight. We can assist with export customs declaration and related certificates.
