Wide operating temperature, WLED backlight, lifespan greater than 70,000 hours, includes LED driver, 180-degree flip display, 6/8-bit grayscale options, matte surface, PSWG.

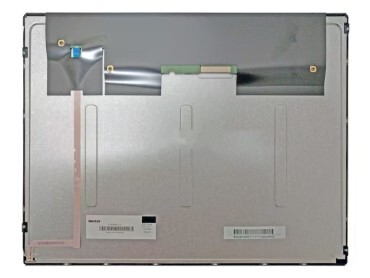

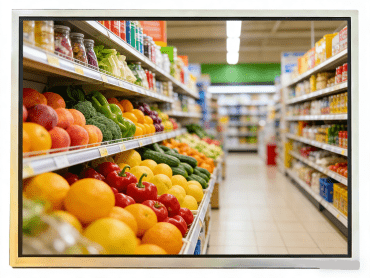

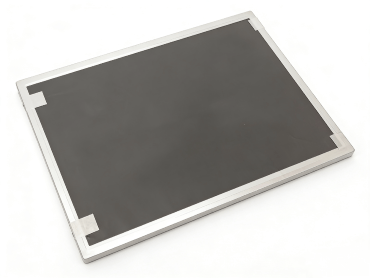

Innolux G150XNE-L01 is a 15.0-inch a-Si TFT industrial LCD display module. For equipment manufacturers who need to deliver exceptional static and dynamic image quality even in extreme environments (such as outdoor medical equipment, energy exploration, or specialized vehicles), this product offers uncompromising reliability. For R&D engineers responsible for the core competitiveness of their equipment and project decision-makers concerned with long-term operating costs, this module solves three high-level challenges:
1. The LCD panel's ultra-high contrast ratio of 2500:1 and 72% NTSC wide color gamut performance remain stable, ensuring that the grayscale and color levels of critical images (such as geological maps and medical thermal images) are not lost due to temperature fluctuations, guaranteeing absolute accuracy in data interpretation.
2. The 70,000-hour backlight lifespan far exceeds industry standards. For critical equipment requiring 24/7 uninterrupted operation (such as power grid monitoring and data centers), this directly translates to fewer maintenance and replacement cycles, saving you significant operating costs.
3. The fast response time of 13/5ms, combined with the inherent high contrast advantage of the NPVA panel, effectively eliminates motion blur when displaying fast-moving objects or refreshing data, preventing operational errors caused by display lag or ghosting.
| Panel Brand | Innolux | Panel Model | G150XNE-L01 |
| Panel Size | 15.0 inch | Panel Type | a-Si TFT-LCD,LCD Module |
| Resolution | 1024(RGB)×768, XGA, 85PPI | Pixel Layout | RGB vertical stripes |
| Display Area | 304.128(W)×228.096(H) mm | Appearance Size | 326.5(W)×253.5(H)×9.6(D) mm |
| Brightness(cd/m²) | 500 cd/m² (Typ.) | Contrast | 2500:1 (Typ.) (transmission) |
| Visual Angle | 88/88/88/88 (Typ.) (CR≥10) | Surface Treatment | Matte, Hard coating (3H) |
| Display Colors | 262K/16.7M , 72% NTSC | Optical Mode | NPVA, normally black display, transmissive |
| Panel Weight | 0.97/1.00Kgs (Typ./ Max.) | Response Time | 13/5 (Typ.) (Tr/Td) ms |
| Optimal Visual Angle | Full-view | Backlight | WLED , 70K hours, with LED driver |
| Frame Frequency | 60Hz | Application | Industrial Control/ Vehicle Display |
| Driving Voltage | 3.3V (Typ,) | Touch Function | No touch function |
| Environment Temperature | Operating Temperature: -20 ~70 °C ; Storage Temperature: -30 ~80 °C | ||

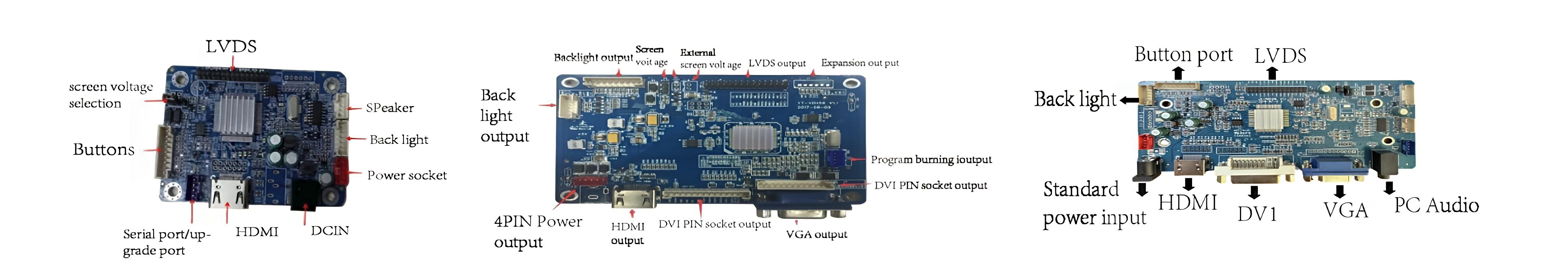

♦ Model HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080
♦ Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200
♦ Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
♦ Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
♦ Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200
♦ Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

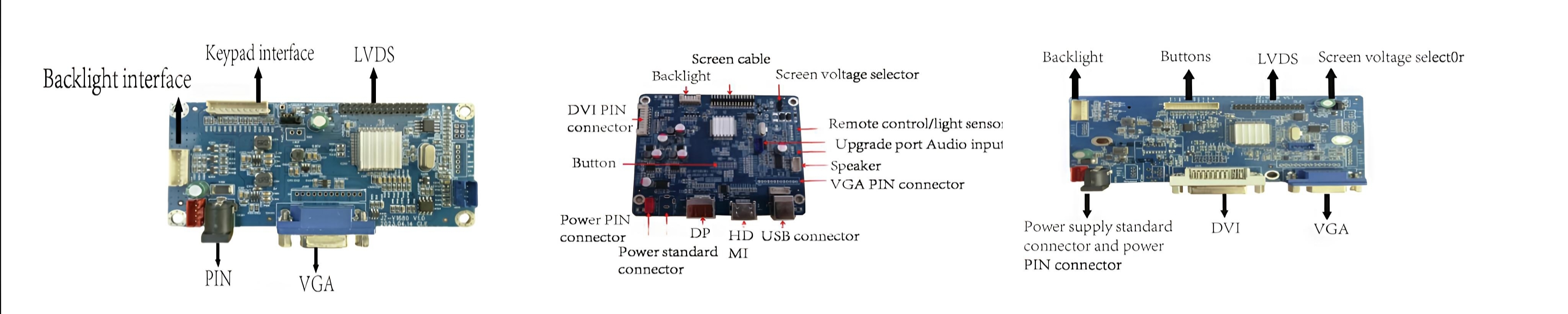

◊ The supporting LCD driver board adopts stable industrial scheme. All devices meet industrial standards. LCD driver board has been strictly tested and demonstrated. The recommended LCD driver board is matched according to the parameters of the LCD panels.
◊ It expands the application of LCD panels. Detailed parameters of LCD driver board are described in detail on other pages.
Zhengzhou Hengxinda Technology Co., Ltd is a profeesional LCD TFT display supplier from China, mainly providing brands sunch as AUO/BOE/IVO/Sharp/Innolux etc. We can offer the following service:
1. Customized Adaptation Services: We support customized adaptation of LCD screens in various sizes and models. From measurement to production, we provide one-on-one follow-up to ensure the glass cover perfectly fits the screen without affecting the original structure of the equipment.
2. Rigorous Quality Inspection: Every glass cover undergoes multiple tests for impact resistance, light transmittance, temperature tolerance, and more, meeting industrial-grade standards to ensure flawless products delivered to our customers.
3. Comprehensive After-Sales Support: Products come with a 12-month warranty. In case of non-human-caused issues such as glass breakage or detachment, we provide free replacement services.
4. "One-Stop Shopping" Experience: In addition to LCD TFT displays, we also supply a full range of related accessories, including LCD controller boards, LCD touch screens, light sensors, and compatible cables. You can also opt for touch screen bonding services or glass bonding services, enabling us to deliver an integrated display solution—from the screen to its peripheral components.
5. Reliable Logistics Shipping: We support various shipping methods, including air, sea, and land freight, and can flexibly adjust to your delivery timeline requirements. Standard LCD TFT panels products are shipped within 48 hours to 7 days, while customized products are delivered within 7 to 20 days.
FAQs:
1. Do you support free samples?
A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.
2. How long is the cycle for customized complementary services (such as touch screen + bonding)?
A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.
3. Is parameter customization supported?
A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.
4. What is the after-sales guarantee for this product?
A: Provide 12 months full machine warranty (including screen and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.
5. Is there a price discount for bulk purchases?
A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
| Brand | Model Name | Size | Resolution | Brightness | Contrast Ratio | Backlight Type | Interface | pins | Operation Temperature | Download PDF | Add Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tianma | P1500XGF2MB10 | 15" | 1024×768 | 500 nits | 1200:1 | WLED | LVDS | 20 | -20~70 ° C | ||
| Tianma | P1500XGF2MA00 | 15" | 1024×768 | 1500 nits | 1000:1 | WLED | LVDS | 20 | -20~70 ° C | ||
| Tianma | P1500XGF1MB02 | 15" | 1024×768 | 600 nits | 1000:1 | WLED | LVDS | -20 ~70 ° C | |||
| Tianma | P1500XGF1MB01 | 15" | 1024×768 | 400 nits | 1500:1 | WLED | LVDS | 20 | -20~70 ° C | ||
| AUO | G150XTN06.0 | 15" | 1024×768 | 450 nits | 800:1 | WLED | LVDS | 20 | -20 ~70 °C | ||
| AUO | G150XTN06.2 | 15" | 1024×768 | 300 nits | 700:1 | WLED | LVDS | 20 | -30 ~85 °C | ||
| AUO | G150XAN02.1 | 15" | 1024×768 | 800 nits | 2000:1 | WLED | LVDS | 20 | -20 ~75 °C | ||
| Sharp | LQ150X1LG92 | 15" | 1024×768 | 400 nits | 800:1 | WLED | LVDS | 20 | -20 ~70 °C | ||
| Innolux | G150XNE-L03 | 15" | 1024×768 | 300 nits | 2000:1 | WLED | LVDS | 20 | -20 ~70 °C | ||
| Innolux | G150XNE-L02 | 15" | 1024×768 | 350 nits | 2500:1 | WLED | LVDS | 20 | -30 ~70 °C |
