With intergrated touch screen, wide temperature range, white LED backlight, lifespan greater than 100,000 hours, includes LED driver, 180-degree flip display, matte finish (Perimeter-bonded (with air gap) PCAP, with 0.7mm cover glass, TM070RDSG04-00-BLU1-00)

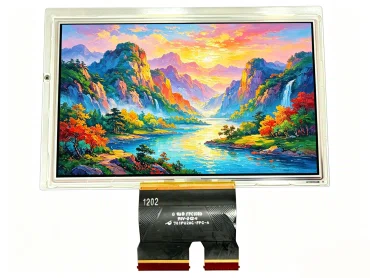

NLT NL8048AC19-13BD is a 7-inch WVGA industrial-grade LCD display designed for high-reliability applications. It features a projected capacitive touch panel with AG+AF treatment that supports 16-point touch, effectively minimizing environmental reflections and fingerprint smudges while enhancing scratch resistance to ensure smooth, stable multi-touch interaction in demanding industrial and automotive environments. The LCD panel integrates a LED backlight driver board with a lifespan of 100,000 hours, eliminating the need for external backlight driver circuitry. It also supports 180-degree image flipping to accommodate diverse installation requirements and enables rapid hardware integration via a 20-pin LVDS interface and 3.3V power supply. The industrial LCD display NL8048AC19-13BD is widely used in sectors such as industrial HMIs, automotive navigation and infotainment systems, portable medical monitoring devices, and indoor smart terminals.

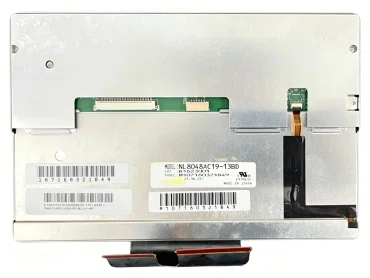

| Reference Picture | Size | 7-inch | Visual Angle | 80/80/80/80 |
| Brand | NLT | Backlight | WLED |
| Model | NL8048AC19-13BD | Interface | LVDS (1 ch, 6-bit) | |
| Resolution | 800(RGB)×480 | Operating Temperature | -30 ~ 80 °C | |
| Brightness | 430 cd/m² | Production State | In Production |
Detailed Specifications of NLT NL8048AC19-13BD 7-inch touch display module are in the following table.
| Parameter | Specification |
| Brand | NLT |
| Model | NL8048AC19-13BD |
| Size | 7-inch |
| Resolution | 800(RGB)×480, WVGA |
| Pixel Density | 133 PPI |
| Aspect Ratio | 15:9 |
| Display Technology | TN, Normally White, a-Si TFT LCD |
| Brightness | 430 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle | 80/80/80/80 |
| Response Time | 3/15 (Typ.)(Tr/Td) ms |
| Display Colors | 262K, 60% NTSC |
| Color Temperature | 6485K |
| Interface | LVDS (1 ch, 6-bit) |
| Connector Type | JAE, FI-S6P-HFE |
| Backlight Type | WLED |
| Backlight Life | 100K |
| Built-in LED Driver Board | Yes |
| Touch Function | Yes, 16-point PCAP touch screen |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -40 ~ 80 °C |
| Active Area | 152.4(W)×91.44(H) mm |
| Visual Area | 154.4(H) × 93.5(V) mm |
| Outline Dimension | 170×111×10.1 mm (H×V×D) |
| Surface Treatment | AF+AG, Hard Coating (2H) |
| Weight | 245/270g (Typ./Max.) |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Input Voltage (Logic) | 3.3 V (Typ.) |
| Input Voltage (Backlight) | 12.0±1.2V |
| Power Consumption | 3.0W (Typ.) |
| Sunlight Readability | No, Indoor Use |
| RoHS | Yes |
Key Features & Specifications
♦ Display Performance
• Surface treatment: Anti-fingerprint (AF) + Anti-glare (AG) + 2H hard coating for anti-reflection and scratch resistance
♦ Touch & Interaction
• Built-in 16-point projected capacitive touch screen for precise multi-touch operations
• Perimeter-bonding with air gap design ensures robust adhesion in harsh environments
♦ Backlight & Lifetime
• Embedded 100K-hour long-life WLED backlight driver board, eliminating the need for external driver design
Electrical & Environmental
• Signal interface: LVDS (1ch, 6-bit), 20-pin terminal, 3.3V drive voltage
• Operating temperature: -30~80℃, storage temperature: -40~80℃, vibration resistance: 2.0G
• Supports 180-degree display rotation for flexible installation
♦ Common Applications
• Industrial Automation: HMI panels, PLC control interfaces, CNC machine operation screens etc.
• Automotive Electronics: Car navigation, infotainment systems, public transport displays etc.
• Medical Devices: Portable medical monitors, small diagnostic equipment etc.
• Smart Terminals: Vending machines, industrial tablets, outdoor smart devices etc.
Q: Does NL8048AC19-13BD LCD panel require an additional backlight driver board?
A: No, NL8048AC19-13BD already has a built-in original WLED backlight driver board. The backlight has a service life of up to 100,000 hours, so there is no need to design a separate backlight driver during system development, which simplifies the hardware development process.
Q: What are the interface types and power supply voltage for NL8048AC19-13BD?
A: The signal interface is a single-channel 6-bit LVDS with a 20-pin connector. The standard drive supply voltage is 3.3V, allowing for direct connection to conventional industrial control motherboards and ensuring strong compatibility.
Q: Can the industrial LCD display NL8048AC19-13BD withstand harsh environments with extreme temperatures?
A: Yes. The LCD display’s operating temperature range is -30°C to 80°C, and its storage temperature range is -40°C to 80°C. It also features 2.0G shock resistance, ensuring stable operation in automotive, outdoor, and low-temperature workshop environments.
Q: Does NL8048AC19-13BD support screen rotation, and are there any installation restrictions?
A: NL8048AC19-13BD supports 180-degree screen rotation and has no mandatory installation orientation. It can be mounted vertically or upside down, making it compatible with various enclosure structures such as CNC machines and in-vehicle control panels.
Q: For which types of industrial equipment is this 7-inch touchscreen display module primarily suitable?
A: NL8048AC19-13BD all-in-one touch screen is commonly used in industrial human-machine interfaces (HMIs), CNC control panels, in-vehicle navigation and infotainment screens, portable medical diagnostic devices, self-service kiosks, and indoor smart industrial control displays.
Q: What is the bonding process for this NL8048AC19-13BD touch screen display?
A: It features a PCAP touch screen bonded with a perimeter seal using an air-gap structure. It offers excellent resistance to electromagnetic interference, ensuring reliable touch functionality even in environments with moisture and light dust—making it suitable for long-term industrial use.
