Wide temperature range, easy-to-replace backlight, white LED backlight, lifespan exceeding 100,000 hours, with LED driver board, 180-degree flip display, selectable 6- or 8-level grayscale, matte finish (ColorXcell).

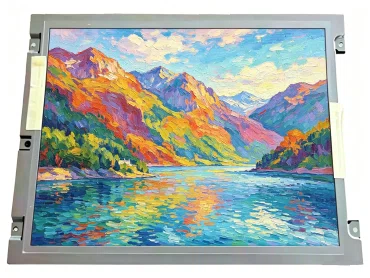

NLT NL8060AC21-21D is a high-performance 8.4-inch SVGA industrial-grade TFT LCD panel featuring a classic 4:3 aspect ratio, high brightness of 400 cd/m², and a high contrast ratio of 800:1. Equipped with a 3H anti-glare, scratch-resistant hardened surface, it delivers a clear and crisp image with excellent visibility, effectively preventing glare and ensuring readability in bright environments; This industrial LCD panel offers exceptional environmental adaptability, supporting an ultra-wide operating temperature range from -30°C to 80°C and delivering outstanding vibration resistance. Equipped with a longlife WLED backlight rated for over 100,000 hours, it is stable, durable, and has a low failure rate, significantly reducing equipment maintenance costs and downtime losses. It also supports 180° screen rotation and adjustable 6- or 8-bit grayscale levels. Equipped with a standardized 20-pin LVDS interface, it offers strong compatibility and easy integration, effectively shortening the device development and adaptation cycle. It is the preferred solution for high-reliability industrial displays and is widely used in industrial human-machine interfaces, CNC equipment, specialized vehicle-mounted terminals, maritime display equipment, medical diagnostic instruments, and various industrial automation monitoring and power measurement and control equipment.
| Reference Picture | Size | 8.4-inch | Backlight | WLED, 100K Hours |
| Brand | NLT | Interface | LVDS (1 ch, 6/8-bit) |
| Model | NL8060AC21-21D | Brightness | 400 cd/m² | |
| Resolution | 800(RGB)×600 | Operating Temperature | -30 ~ 80 °C | |
| Visual Angle | 80/80/80/80 | Production State | In Production |
Detailed Specifications of NLT NL8060AC21-21D 8.4-inch LCD display module are in the following table.
| Parameter | Specification |
| Brand | NLT |
| Model | NL8060AC21-21D |
| Size | 8.4-inch |
| Resolution | 800(RGB)×600, SVGA |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 |
| Display Technology | TN, Normally White, a-Si TFT LCD |
| Brightness | 400 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle | 80/80/80/80 |
| Response Time | 3/15 (Typ.)(Tr+Td) ms |
| Display Colors | 262K/16.7M, 40% NTSC |
| Color Temperature | 6485K |
| Interface | LVDS (1 ch, 6/8-bit) |
| Connector Type | JAE, FI-SE20P-HFE |
| Backlight Type | WLED |
| Backlight Life | 100K |
| Built-in LED Driver Board | Yes |
| Touch Function | No (Custom touch screen can be matched based on your needs) |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Active Area | 170.4×127.8 mm |
| Visual Area | 174.0×131.4 mm |
| Outline Dimension | 200×152×8.2 mm (H×V×D) |
| Surface Treatment | Matte, Hard Coating (3H) |
| Weight | 260g (Typ.) |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Input Voltage (Logic) | 3.3 V (Typ.) |
| Input Current (Logic) | 300/425mA (Typ./Max.) |
| Input Voltage (Backlight) | 12.0±1.2V |
| Input Current (Backlight) | 195/240mA (Typ./Max.) |
| Replaceable Backlight | Yes |
| Sunlight Readability | No, Indoor Use |
| RoHS | Yes |
Hengxinda also provides supporting accessories for LCD panels, covering four major product categories: touch screens, LCD control boards, LED backlight driver boards, and custom cables. All accessories are independently developed and are compatible with a wide range of industrial LCD panels. We provide both standard stock products and custom LCD display solutions, offering a one-stop service for LCD integration, debugging, and cable requirements. Our products feature strong compatibility, stable quality ensured through strict factory testing, and professional technical support services. We support both small and large volume orders.
We supply three types of touch screens: Resistive Touch Screens, Capacitive Touch Screens, and Infrared Touch Screens, suitable for different operating environments and application requirements. All touch screens can be matched with both standard and custom LCD panels, ensuring excellent bonding performance and stable touch signal transmission. We support customization of screen size, interface, and bezel design to meet special equipment integration requirements.
Our LCD controller boards are equipped with common input interfaces such as HDMI, VGA, AV, and Type-C, while also supporting customization of special interfaces including DP and MIPI. They support both LVDS and eDP signal outputs and are compatible with LCD panels up to 4K resolution. Extensive customization options are available, including display parameters, power-on sequence settings, boot logos, and other panel configurations. The controller boards can be integrated directly with our touch screens to create an all-in-one touch display solution. We provide free compatibility testing and configuration based on your LCD panel model, ensuring plug-and-play operation.
Our backlight driver boards are specifically designed for bare LCD panels without integrated backlight driver boards, providing stable power supply for LED backlight strips. Based on the specifications of your LCD panel, we can precisely adjust and match the input voltage and output current to ensure optimal compatibility with different backlight power requirements.
We provide a complete range of cables, including LCD signal cables, touch panel cables, and LCD control board power cables. We support customization of cable length, connector type, and pin assignments to accommodate various equipment structures.
Q1: Is NLT NL8060AC21-21D a wide-temperature industrial LCD display?
A: Yes, NLT NL8060AC21-21D is an 8.4-inch wide-temperature industrial LCD display. It supports an ultra-wide operating and storage temperature range of -30°C to 80°C and can operate stably in extreme industrial environments, such as those with extremely cold or high temperatures.
Q2: Is NLT NL8060AC21-21D a long-life industrial LCD display?
A: NLT NL8060AC21-21D is a typical long-life backlit industrial LCD display. It features WLED edge-lit backlighting with a lifespan exceeding 100,000 hours, and the backlight module can be easily replaced, significantly extending the overall service life of the equipment.
Q3: Is NLT NL8060AC21-21D an anti-glare industrial LCD display?
A: Yes, NLT NL8060AC21-21D is an anti-glare industrial LCD display. Its surface features a matte hard coating (3H) that is scratch-resistant and wear-resistant, effectively suppressing glare from strong light sources, ensuring clear visibility even under bright outdoor or workshop conditions.
Q4: Is NL8060AC21-21D a vibration-resistant industrial LCD display module?
A: NLT NL8060AC21-21D is a highly reliable, vibration-resistant industrial LCD module with a vibration resistance rating of 2.0G (19.6 m/s²), making it suitable for vibration-prone environments such as automotive, marine, and construction machinery applications.
Q5: Is NLT NL8060AC21-21D suitable for CNC, automotive, and marine equipment?
A: NLT NL8060AC21-21D is widely compatible with CNC equipment, specialized in-vehicle terminals, marine display equipment, and other applications. It can also be used in industrial automation equipment such as industrial HMIs, medical diagnostic instruments, and power relay protection devices.
