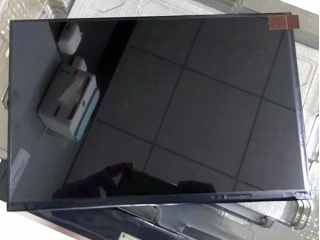

NV101WXM-N01

NV101WXM-N01

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	NV101WXM-N01
Panel size	10.1-inch	panel type	a-SiTFT-LCD, LCD Module
resolution ratio	1280(RGB)x800, WXGA,149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)x135.6(H) mm	Appearance size	228.3(W)x149.05(H)x4.7(D) mm
viewable area		surface treatment	anti-reflective treatment
display brightness	400 cd/m² (Typ.)	contrast	800:1(Typ.) (transmission)
recommended angle of view	full-view	response time	30 (Typ.) (Tr+Td) ms
visual Angle	85/85/85/85 (Typ.) (CR≥10)	display mode	ADS, normally black display, transmissive
support color	16.7M,48% NTSC	light source type	WLED,15K hours with LED driver
weight	400g (Max.)	application products	Industry, culture, sports and entertainment
frame frequency	60Hz	touch technology	touchless
interface type	LVDS(2 ch,8-bit), Terminals
voltage supply	3.3V (Typ.)
application environment	Working temperature: 0~50℃; storage temperature: -20~60℃

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
BOE	TV101WUB-NW6	10.1"	1200×1920		900:1	No backlight	MIPI	40	-20~60 ° C
BOE	GV101WXM-N11	10.1"	1280×800	400 nits	900:1	WLED	MIPI	40	-20 ~70°C
BOE	GV101WXB-NN0-3GP0	10.1"	1280×800		1000:1	No backlight	LVDS	40	-20~70 ° C
BOE	RV101FBB-N02-V1	10.1"	4920×2880		400:1	No backlight	eDP	40	0~70℃
Tianma	P1010WXF2ME30	10.1"	1280×800	400 nits	1200:1	WLED	LVDS	40	-20~70 ° C
Tianma	P1010WUF1MAAA	10.1"	1200×1920		1000:1	WLED	-		-20~70 °C
Tianma	P1010WXF1ME20	10.1"	1280×800	400 nits	800:1	WLED	LVDS	40	-10~50 ° C
Tianma	P1010WXF1MB10	10.1"	1280×800	500 nits	800:1	WLED	LVDS	40	-20~70 °C
Tianma	P1010WSN1MA00	10.1"	1024×600	920 nits	500:1	WLED	Parallel RGB		-20~70 ° C
Tianma	P1010WSN1ME01	10.1"	1024×600	350 nits	500:1	WLED	Parallel RGB	50	-20~70 ℃
