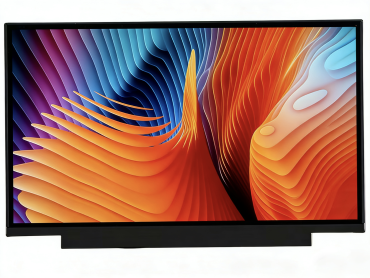

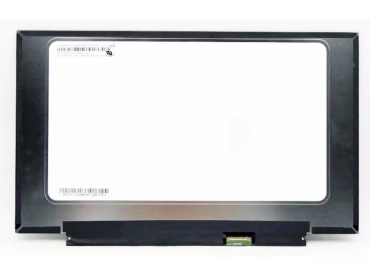

R140NWF5 RA

On-cell touch, WLED backlighting, with LED driver, matte surface, eDP1.2.

Product Description

IVO R140NWF5 R4 is a 14.0-inch a-Si TFT-LCD display panel, centered on On-cell touch technology, combined with 300cd/m² brightness + IPS full-angle viewing. It achieves the integration of screen and touch, ensuring clear display in various viewing angles, and is a terminal LCD TFT display solution that combines convenient interaction with reliable display.

It can help you solve these problems:

• Precise touch operation without lag, reducing the risk of equipment mis-touch

• No longer need to reserve extra space for "LCD TFT panel + independent touch screen"

• Thin-screen design can be easily integrated into existing terminals without additional structural modifications

Basic Parameter

Panel Brand	IVO	Panel Model	R140NWF5 RA
Panel Size	14.0 inch	Panel Type	a-Si TFT-LCD, LCD Module
Resolution	1920(RGB)x1080, FHD, 157PPI	Pixel Layout	RGB vertical stripe
Display Area	309.31(W)x173.99(H)mm	Appearance Size	315.81(W)x197.55(H)x3(D)mm
Aperture Area	---	Surface Treatment	Matte, Hard coating(3H)
Display Brightness	300 cd/m²(Typ.)	Contrast Ratio	800:1(Typ.)(Transmission)
Optimal Viewing Angle	Full View	Response Time	30(Typ.)(Tr+Td) ms
Viewing Angle	85/85/85/85(Typ.)(CR≥10)	Display Mode	IPS, Normally Black Display, Transmission Type
Display Colors	262K, 45% NTSC	Backlight	WLED, 15K hours, including LED Driver
Appearance Style	Thin Screen (PCBA flat, thickness ≤ 3.2 mm)	Application	Laptop
Frame Rate	60Hz	Touch Technology	On-cell Touch, USB
Interface Type	40 pins, eDP(2 Lanes), eDP1.2, connector
Voltage Supply	3.3V(Typ.)
Environment Temperature	Operating temperature: 0~50℃; Storage temperature: -20~60℃

IVO R140NWF5 RA LCD TFT Panel Application Scenarios

👉Industrial Control Field

PLC control panels, CNC machine operation screens, production line status monitoring terminals, etc.

Industrial scenarios have extremely high requirements for the efficiency and stability of display interaction. On-Cell touch control can directly improve operational efficiency. R140NWF5 RA clearly displays parameters in the workshop environment, reducing production line errors caused by unclear operation.

👉Smart Home Field

Smart control screens, home security monitoring screens, home appliance integrated control terminals, etc.

Smart home terminals need to balance aesthetics and ease of operation. Thin screens+touch integration can adapt to the compact design of home scenarios. R140NWF5 RA not only solves the pain points of numerous home products and complex operation, but also enables family members to operate from multiple angles clearly through full-angle display.

👉Medical Equipment Field

Multi-parameter monitors, ultrasound diagnostic instrument display modules, infusion pump control screens, etc.

Medical equipment has strict requirements for display accuracy and operational safety. The high contrast ratio+precise touch control of this product can facilitate the diagnosis and treatment process. R140NWF5 RA reduces equipment accidental touches through touch integration, thereby improving the efficiency of medical staff operations.

👉Vehicle Field

Intelligent dispatch screens for trucks, central control navigation screens for cars, control terminals for campers, etc.

R140NWF5 RA not only addresses the visual problem of white screens in driving environments, but also enables more convenient navigation operations through touch integration, thereby enhancing driving safety.

👉Military Display Field
Tank navigation screens, field reconnaissance equipment screens, military equipment operation panels, etc.

The military environment has extremely high requirements for the environmental adaptability and operational reliability of equipment. The anti-glare matte surface of this LCD panel can adapt to complex field environments. R140NWF5 RA solves the problem of unstable display of field equipment and simplifies equipment operation through touch integration, thereby improving task efficiency.

Product Supporting Services

♦ Custom-Matched Driver Boards

We provide industrial-grade driver boards fully compatible with the GV104XM-N10, supporting plug-and-play functionality via LVDS interface. Built-in with industrial-grade chips, these driver boards are suitable for operation within a temperature range of -30°C to 85°C.

♦ Customized Touch Screens

Capacitive touch screens or resistive touch screens in corresponding sizes can be configured according to your device requirements. The resolution and touch accuracy of the touch screens are perfectly matched to the display performance of the LCD TFT display panels.

♦ High-Precision Bonding Technology

We offer Air bonding and Frame bonding services for integrating touch screens with LCD TFT display panels, adopting industrial-grade bonding processes. The bonding tolerance is controlled within ±0.2mm, with additional dust-proof and anti-fog treatment applied.

If you need a customized integrated solution combining LCD display panel, driver board, touch screen and bonding, feel free to contact us. We will provide a tailor-made compatibility plan based on your device parameters and application scenarios!

FAQs:

Q: Does the On-Cell touch control of R140NWF5 RA support multi-touch?

A: R140NWF5 RA supports 10-point touch control, fully compatible with industrial operations, medical parameter adjustment, commercial interactions, military equipment, portable smart devices, etc., meeting the daily operation needs of various scenarios.

Q: Can the matte Hard coating prevent oil stains and chemical reagents?

A: It can resist daily oil stains and dust, and can withstand mild chemical reagent erosion in industrial/medical scenarios.

Q: Can samples with customized interfaces be provided?

A: Of course. Customization of special interfaces requires confirmation of requirements, and then a small batch sample production will be provided. For details, please contact us and we will offer you a free display solution.

Q: Is the packaging for overseas orders shockproof?

A: All orders are packaged with anti-static and shockproof measures. For overseas orders, an additional reinforcement layer is added to ensure that the screen is not damaged during transportation.
