800 nits high brightness; high contrast ratio; white LED backlight; lifetime ≥ 50K Hours; with LED driver board; 180° flip display; 6/8-bit grayscale options available; matte surface.

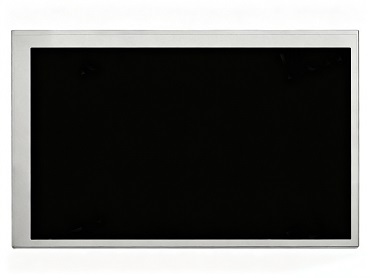

Kyocera TCG058WXLPAPNN-AN30-S is a 5.8-inch high brightness LCD display module that applys a-Si TFT-LCD technology. It is equipped with WLED backlight and integrated LED driver, without touch function. Its operating temperature ranges from -20 ~ 70°C, and storage temperature from -30 ~ 80°C. Kyocera TCG058WXLPAPNN-AN30-S adopts a side WLED backlight with a lifespan of 50K hours. Kyocera TCG058WXLPAPNN-AN30-S features an LVDS (1 ch, 6/8-bit) signal interface with 20 pins in total, connected via connectors, and the typical display driving voltage is 3.3V. Kyocera TCG058WXLPAPNN-AN30-S serves a broad range of applications, covering industrial control devices, in-vehicle display panels, medical inspection devices, and smarthome control panel. The basic parameters of Kyocera TCG058WXLPAPNN-AN30-S are in the following table.
LCD Controller Board/LCD Driver Board We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.
Touch Panel
Both resistive touch and capacitive touch can be customized according to your needs. Resistive touch supports operation with gloves and styluses, features strong anti-interference, oil resistance and lower cost. Capacitive touch supports multi-touch, with sensitive response, smooth operation and longer service life.If you have specific application scenarios and requirements, please feel free to contact us, and we will recommend the most suitable solution for you. Touch screen bonding is a process that tightly bonds the touch screen to the TFT LCD panel, which directly determines display effect, touch accuracy, reliability, and product lifespan. Frame bonding features low cost, simple process and high yield rate, while full bonding delivers more transparent display, better sunlight visibility and stronger structural rigidity. Our bonding factory maintains strict requirements on process, production environment and materials to ensure high stability.
Zhengzhou Hengxinda Technology Co., Ltd. is a supplier focused on industrial-grade LCD displays, capacitive touch screens, resistive touch screen, infrared touch screen, LCD controller board and industrial TFT LCD display solutions. We distribute well-known brands like AUO, Innolux, Sharp, IVO and BOE. Our products are widely used in industrial controls, medical equipment, automotive displays, outdoor terminals, and more. We provide one-stop shopping service, from product selection and sample testing to mass production. For LCD panel service, we provide touch panel + LCD panel bonding technology and cover glass + LCD panel bonding technology.
Give you best Price, enjoy custom touch panel screen and buy LCD panel screen Now! ️ Welcome to contact us for more information you need!
Q1: Can Kyocera TCG058WXLPAPNN-AN30-S be used under direct outdoor sunlight?
A: It features a brightness of 800 nits. It is recommended for semi-outdoor scenarios or direct sunlight environments with sunshade to ensure better visibility and clarity. For all-day use under strong direct sunlight, high-brightness models with 1000–1500 nits are highly recommended. If you have higher brightness requirements, please contact us. Our sales engineers will recommend the most suitable display model for your project.
Q2: Does Kyocera TCG058WXLPAPNN-AN30-S have built-in touch functionality?
A: No. Kyocera TCG058WXLPAPNN-AN30-S is a pure LCD display module. If touch functionality is required, an additional touchscreen needs to be configured. We offer matching resistive, capacitive, and infrared touch screens, and also provide LCD panel/touch panel bonding services. Please contact our sales manager for details.
Q3: Which devices is the Kyocera TCG058WXLPAPNN-AN30-S suitable for?
A: The Kyocera TCG058WXLPAPNN-AN30-S is widely utilized in applications—such as industrial control panels, in-vehicle displays, medical equipment, security surveillance systems, and portable instruments—that demand a wide operating temperature range, low power consumption, and high stability.
Q4: How abot Kyocera TCG058WXLPAPNN-AN30-S price?
A: We source directly from the original factory, offering the same quality at a better price. The same price also comes with better service. However, the price of the LCD panel will fluctuate depending on its production status. If you would like a free quote, you can also contact us for a detailed price list.
Q5: Do you have a MOQ for your products?
A: We do not have a MOQ for samples. However, for subsequent purchases of the same product, we do have a MOQ requirement, generally 50 pieces per order.
