What Is Direct-Lit Backlight for LCD Panels?

2026-06-18

Last time, we recommended a cost-effective 17.3-inch LCD panel, Innolux GK173VB-01B, to many customers. It adopts a Mini LED direct-lit backlight system. Many clients asked us about the differences between direct-lit and edge-lit backlights, and which one works better for their industrial equipment projects.

Today, we will fully explain direct-lit backlights: core working principles, internal structure, pros and cons, real industry applications, and how to pick suitable direct-lit LCD panels for your projects.

Download PDF Send Message

1. What is a direct-lit backlight?

A direct-lit backlight (also named full array backlight) arranges LED beads in an even grid behind the entire LCD panel. Light shoots straight from the back of the screen, passes through diffusion plates and optical films to balance brightness, and then lights up the whole display area.

Its biggest advantage is independent zone dimming. The LED grid is split into dozens or hundreds of separate control zones. The system can brighten, dim or completely turn off the light in any single zone based on screen content.

Two Types of Direct-Lit Backlight with Technical Upgrades

With display technology development, there are two mainstream direct-lit backlight versions for different budgets:

• Standard direct-lit LCD panel: Medium-density LED grid with dozens of dimming zones, balanced cost and performancey suitable for most industrial equipment.

• Mini LED direct-lit backlight: Dense tiny Mini LED beads, hundreds to thousands of independent dimming zones, maximum brightness up to 4000 nits. Mainly used for top-level medical imaging, high-bright outdoor signage and rugged military displays, with higher purchase costs.

2. Main Advantages of LCD Panels with Direct-Lit Backlight

2.1 Even brightness across the whole screen without color shifts

The full rear LED grid of direct-lit backlights keeps consistent brightness on every part of the LCD panel. Workers can view the industrial LCD screen from multiple angles without partial dark spots or uneven colors.

2.2 Independent zone dimming brings higher contrast

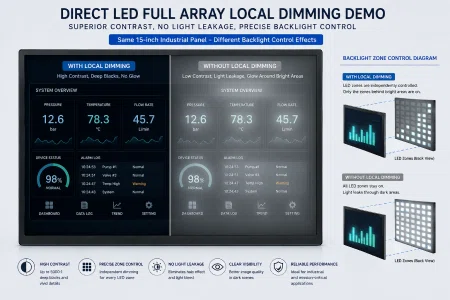

Zone dimming is the core strength of direct-lit backlights. It dims or turns off LEDs in dark areas and boosts brightness for bright content. The screen shows clearer layers with much less light blooming and light leakage.

2.3 Clear display under strong outdoor sunlight for harsh environments

Direct-lit backlights can fit high-power LED beads in dense layouts, supporting industrial panels with 1000–5000 nits high brightness. Users can read screen content clearly even under direct outdoor sunlight.

Common usage scenarios: EV charging station screens, industrial control displays in construction machinery cabins, airport flight information screens, outdoor industrial monitoring terminals.

2.4 Stable performance in high and low temperatures

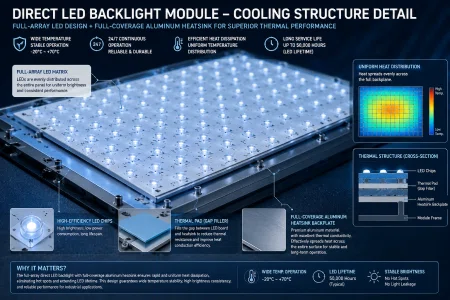

Direct-lit industrial backlight modules are optimized for heat dissipation. Heat from all LED beads spreads evenly over the full aluminum back plate, matched with thermal silicone and heat sinks. The LCD panels run smoothly in extreme temperatures without easy breakdowns.

2.5 Longer service life and lower long-term maintenance cost

Direct-lit backlights spread power load over hundreds of LED beads. Each bead works at low power and slows down brightness decay. There will be no local dark patches or uneven brightness, which greatly cuts later replacement and repair costs.

2.6 Less light blooming and light leakage

Light blooming is a common defect of edge-lit screens. Independent zone control of direct-lit backlights stops light overflow. Text and graphic edges stay sharp and clear in dim environments such as operating rooms and vehicle control cabins at night.

3. Main Equipment Using LCD Panels with Direct-Lit Backlight

Direct-lit backlights deliver the best performance for industries that require clear visibility, precise image quality and stable operation:

3.1 Medical diagnosis & surgical equipment

CT/MRI diagnostic monitors, patient monitor trolleys, mobile emergency medical vehicles etc.

Core requirements: accurate grayscale reproduction, consistent brightness for diagnosis, high visibility under bright operating room lights

3.2 Sunlight-readable outdoor terminals

EV charging piles, self-service vending machines, bus station information screens, crane cabin control panels etc.

Core requirements: brightness above 1000 nits, stable performance in all outdoor temperatures

3.3 Industrial automation & heavy machinery

CNC machine control panels, mining equipment displays, production line data screens, substation power monitoring screens etc.

Core requirements: 24/7 non-stop operation, even brightness for multi-angle viewing, dust and vibration resistance

3.4 Vehicle & transportation displays

Commercial vehicle central control screens, train passenger information screens, ship marine monitoring terminals etc.

Core requirements: wide temperature tolerance, night mode zone dimming, stable operation under unstable vehicle voltage

3.5 High-end professional display devices

Industrial color calibration workstations, broadcast monitors, security command center large screens etc.

Core requirements: accurate color gamut, high contrast to identify tiny image details

4. Selection Guide: Direct-Lit or Edge-Lit Backlight?

Choose direct-lit backlight if your project meets any of the following conditions:

• The device is placed outdoors under strong sunlight and needs brightness above 1000 nits;

• Medical, security or professional design scenes that demand pure black levels and precise grayscale/color performance;

• 24/7 continuous operation without tolerance for uneven brightness or dark spots;

• Stable operation under extreme temperatures from -30℃ to +70℃;

• Sizes from 10.4 inches and above, viewed by multiple operators from different angles.

Contact Us

As a high-end backlight solution for LCD panels, direct-lit backlights fix the core flaws of edge-lit screens: uneven brightness, gray black tones, poor outdoor visibility and unstable performance in extreme temperatures. Though direct-lit panels cost more and have thicker bodies, they offer obvious advantages in long-term stability and image quality. They are the mainstream choice for industrial, medical, transportation and outdoor self-service equipment, where screen clarity directly affects production safety and work efficiency.

FAQ

Q1: Do direct-lit LCD panels perform better outdoors than edge-lit ones?

A: Yes. Direct-lit panels support high-power LEDs to reach 1000–5000 nits with much more even brightness.

Q2: Do screens with direct-lit backlights last longer?

A: Under the same working environment, direct-lit LED beads share power evenly with slower brightness decay, so their service life is longer than edge-lit screens.

Q3: Is Mini LED direct-lit backlight the same as standard direct-lit backlight?

A: No. Mini LED is an upgraded version of direct-lit backlight. It uses smaller LED beads with far more dimming zones, better contrast and brightness, but higher prices.

Q4: Does AUO supply industrial LCD panels with direct-lit backlight?

A: Yes. AUO’s high-bright wide-temperature industrial LCD panel all adopt direct-lit backlights, specially designed for medical devices, outdoor self-service terminals and factory automation. Contact our sales team for accurate model recommendations for your project.
