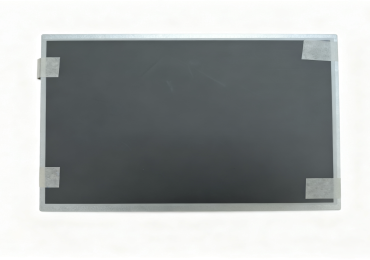

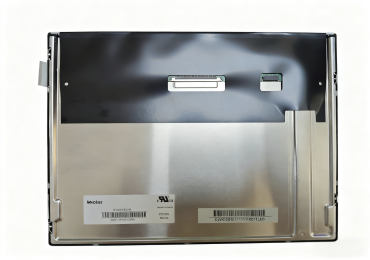

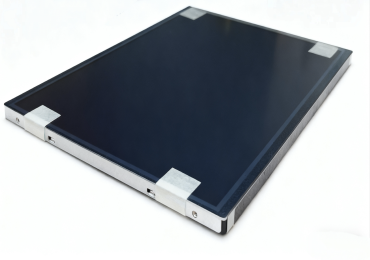

Size: 10.4 inch
Available Brightness: 800~2000 nits
Available Resolution: 640x480/800x600/1024x768, etc. (customizable)
Available Accessories: Touch Screen, Driver Board, OSD Rotary Knob Cable, OSD Key Board, Light Sensor Cable , Custom Cables, etc.
Brand
Model
Size
Resolution
Brightness
（nits)
Contrast Ratio
Backlight Type
Interface
Pins
Operation Temperature
Kyocera
TCG104VGLABANN-AN30
10.4"
640x480
800
500:1
WLED
Parellel RGB
40
-20~70℃
TCG104VGLQFANN-AN33-ZA
1000:1
LVDS
20
-30~80℃
TCG104VGLABANN-AN50
Tianma
P1040VGF1MA00
900
CMOS
Innolux
G104ACJ-L01
960x1280
50
-40~85℃
G104XCE-LH1
1024x768
1000
30
-30~85℃
T-55533D104J-LW-A-ABN
700:1
TCG104SVLDMANN-AN40
800x600
TCG104XGLPAPFA-AA40
1040
TCG104VGLCCANN-AN41
1100
TCG104VGLCHANN-AN40
TCG104SVLEPVNN-AN40
1200
750:1
T-55787GD104J-LW-ALN
TCG104SVLQJPNN-AN40-S
TCG104SVLQJPNN-AN40
TCG104XGLPAPNN-AN44P-S
1300
TCG104XGLPAPNN-AN40-TA
TCG104XGLPAPNN-AN40-S
TCG104XGLPAPNN-AN40
P1040XGF1MA00
TCG104VGLPCANN-AN40
1500
TCG104VGLACANN-AN00
1800
10.4-inch high brightness LCD displays is mainly applied in human-computer interaction terminals in the industrial automation field (such as industrial tablets, CNC machine operation panels), It is widely used in outdoor public facilities (such as electric vehicle charging stations, fuel dispensers, outdoor information kiosks). It also has important applications in medical equipment (such as monitors, portable diagnostic instruments) and marine vessel equipment (such as onboard navigation devices, radar displays), where strict requirements are placed on reliability, salt spray corrosion prevention, and color accuracy.
Accessory Name
Accessory Picture
Accessory Description

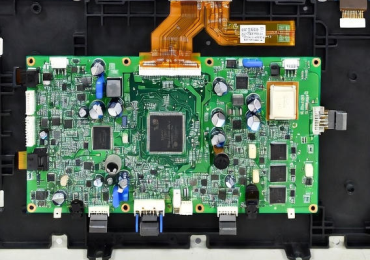

The LCD controller board serves as the core control hub for high-brightness LCD displays, converting HDMI/VGA/LVDS signals into TTL/eDP signals

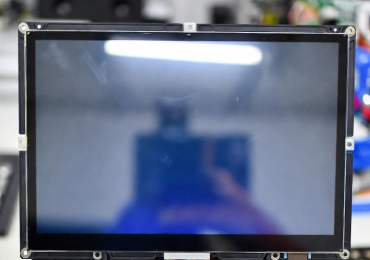

(1).10.4-inch capacitive touch screen, supporting AG/AF/AR. (2).10.4-inch resistive touch screen, offering scratch resistance and anti-interference capabilities. Outdoor models commonly employ optical bonding service to eliminate air gaps.
The photosensitive cable connects to the ambient light sensor, continuously monitoring external light intensity and transmitting signals to the driver board to enable automatic dimming.

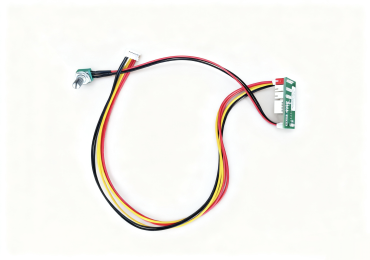

Dimming cables paired with 5-10 rotary potentiometers enable manual adjustment of brightness, contrast, volume, and other settings.
Outdoor equipment often positions knobs for quick on-site adjustment to optimal visibility brightness.
1. What is the main difference between the 10.1-inch and 10.4-inch high-brightness LCD displays? A: The core difference lies in resolution: The 10.1-inch model typically offers higher resolution with an aspect ratio of approximately 16:10 or 16:9. However, the 10.4-inch model features a more compact size with a slightly lower resolution compared to the 10.1-inch version, boasting an aspect ratio of about 4:3.
2. What is the standard brightness of this 10.4-inch TFT LCD displays? A: Standard brightness ranges from 1000 to 1500 nits, offering glare resistance and full compatibility with outdoor/semi-outdoor environments like bus stops and vending machines.
3. What devices is this 10.4-inch high-brightness TFT LCD panels compatible with? A: Compatible with vending machines, flight information displays, geological exploration detectors, electronic menu screens, industrial control terminals, and similar devices.
4. What is the operating temperature range? A: Operating temperature: -30°C to 80°C. Withstands high temperatures and extreme cold, suitable for long-term outdoor use.
5. Does it support touch functionality? A: The standard version lacks touch capability. Capacitive/resistive touch screens can be customized to meet device operation requirements.
6. What is the warranty period for this LCD panels? A: A 1-year warranty covers manufacturing defects. For non-human-induced damage, repair or replacement services are provided for quality issues arising within the warranty period.
