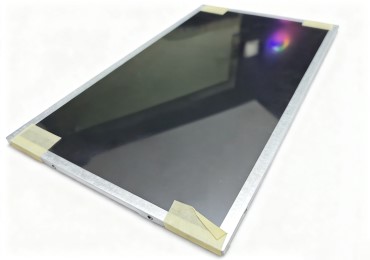

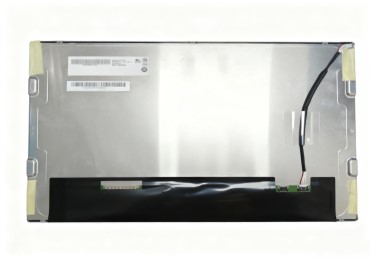

Size: 15.6 inch
Available Brightness: 800~2000 nits
Available Resolution: 1920x1080/ 3840x2160, etc. (customizable)
Available Accessories: Touch Screen, Driver Board, OSD Rotary Knob Cable, OSD Key Board, Light Sensor Cable , Custom Cables, etc.
Brand
Model
Size
Resolution
Brightness
（nits)
Contrast Ratio
Backlight Type
Interface
Pins
Operation Temperature
(℃)
BOE
COG-VLSZT101-01
15.6"
1920x1080
850
1200:1
8S6P WLED
LVDS
60
-30~85℃
AUO
C156HAA01.2
960
1000:1
10S4P WLED
50
-40~85℃
G156HAN04.0
1000
WLED
30
IVO
M156GWFA R0
Tianma
P1560FHF2MA00
1500:1
-30~80℃
M156NVF6 R1
2000:1
eDP
0-50℃
NE156QUM-NM1
3840x2160
10000:1
Mini LED
40
Innolux
G156HCE-LH1
1200
800:1
Kyocera
C1560FD36530-BN-AF
COG-PVLSZT174-01
G156HAN04.1
1500
-30~70℃
15.6-inch high-brightness LCD display, with its moderate size, clear display and ease of integration, is highly popular in various industries. In the industrial field, our customers often purchase 15.6-inch LCD panels and apply them to CNC machines, packaging machines, industrial control computers, etc. In outdoor public facilities, our customers purchase our 15.6-inch high-brightness LCD displays and apply them to outdoor charging stations, outdoor fuel dispensers, community self-service water vending machines, and digital signage, etc. Our customers also use 15.6-inch high-brightness LCD screens for vehicle central control screens, ship navigation instruments, ultrasound diagnostic equipment, and military command screens.
Accessory Name
Accessory Picture
Accessory Description
LCD controller board is the control center of high-brightness LCD displays. It takes common signals like HDMI, VGA, or LVDS and converts them into the TTL/eDP signals the screen actually needs to display. We can develop functions of LCD controller board according to your needs.
(1) 15.6-inch capacitive touch screen can add AG/AF/AR function. (2) 15.6-inch resistive touch screen supports single-point precise touch and has anti-abrasion and anti-interference capabilities. Outdoor models usually adopt optical bonding technology to eliminate air gaps.
This cable is connected to the ambient light sensor, which continuously monitors the intensity of external light and transmits the signal to the driver board, thereby enabling the automatic dimming function.
The dimming cable enables manual adjustment of brightness. Outdoor equipment usually has knobs to allow for quick adjustment to the optimal visible brightness.
Dimming cables work with small 5-10 key keypads to let you manually adjust settings like brightness.
1.What is the brightness range for your 15.6-inch high-brightness TFT LCD displays?
A: Our 15.6-inch high-brightness displays cover a brightness range of 850-2000 nits. The 1500-nit model is optimized for high-sunlight outdoor environments, meeting extreme brightness visibility demands. If you have specific brightness requirements, contact our sales managers and technical team for a professionally customized high-brightness LCD panel tailored to your needs!
2. Which models support wide temperature environments?
A: Multiple models feature wide temperature designs. AUO C156HAA01.2 operates within -40~85℃, making it ideal for low-temperature scenarios; BOE COG-VLSZT101-01, AUO G156HAN04.0, and BOE COG-PVLSZT174-01 all support -30°C to 85°C, making them suitable for harsh environments like industrial high-temperature workshops or northern outdoor winter conditions.
3. Is the LCD display interface LVDS or eDP?
A: Most models use LVDS interfaces, compatible with traditional hardware like industrial equipment and outdoor terminals. Models with eDP interfaces include IVO M156NVF6 R1 and BOE NE156QUM-NM1, offering faster transmission rates suitable for high-end consumer electronics and 4K display devices.
4. Does it support Touch Screen?
A: All 15.6-inch high-brightness LCD panels support optional capacitive/resistive touch screens. We also offer touch screen bonding service and glass bonding service. Please contact us to achieve more details.
5. Can you provide technical support and warranty?
A: Yes! We offer consistent service for all models: standard models come with a 1-year warranty. Free technical manuals are provided.
HXD-H58 LCD control board offers stable performance and a wide range of features, enabling the conversion of HDMI signal for output as LVDS signal. This LCD driver board supports resolutions up to 1920×1080 (FHD). -20℃~+70℃ wide temperature operation. HXD-H58 screen motherboard supports ADJ/PWM software dimming, making it ideal for industrial displays, embedded devices and custom monitor solutions. HXD-H58 screen motherboard is a compact small-size LCD driver board with dimensions of 76mm x 55mm x 15mm, requiring minimal installation space for easy embedded integration.
Product Manager:Mark Si
Product Manager:
HXD-1820L is a high-performance LED driver board designed specifically for the backlight systems of 12 to 24-inch LCD displays. This DC-DC LED inverter serves as a universal LED backlight driver module for a wide range of TFT LCD panels. Both the LED backlight driver board and the connectable cables can be customized. And the standard version of HXD-1820L backlight driver board has an operating temperature of -20 to 70 ℃. Components can be replaced according to your requirements, and the operating temperature can reach -30 to 100℃.
