♦ Size: 5.7 inch
♦ Available Brightness: 300~1000 nits
♦ Available Resolution: 320x240/640x480/1920x1080, etc. (customizable)
♦ Optional Touch Screen: Resistive Touch Screen (4-Wire/5-Wire)
Capacitive Touch Screen(I²C/USB/RS232), etc.
♦ Bonding Method: Optional Bonding Technology
(Air Bonding (Frame Bonding) / Full Bonding)
The 5.7-inch industrial display kit is a display solution designed for industrial scenarios, with mature applications in industrial control, automotive equipment, medical instruments, smart meters and other fields. It integrates the TFT LCD panel and touch screen through frame bonding or full bonding technology.Our products are equipped with high-quality 5.7-inch industrial-grade TFT LCD panels and matching touch screens, which enhance product stability and compatibility. We can customize the bonding method according to customers' cost budget, operating environment, display requirements and other personalized needs, and also support the selection of touch types to meet diverse demands.Welcome to communicate your specific requirements to obtain an exclusive customized solution and quotation.Refer to the table below for a detailed selection of our 5.7-inch industrial display kit , available with either resistive or capacitive touch integration.
Table 1---5.7 inch Industrial Display kits with Resistive / Capacitive touch Solution
TFT LCD Display
Touch Screen
Model
Brand
Brightness (nit)
Resolution
Interface
Active Area
Operating Temperature
Resistive Touch Screen
Capacitive Touch Screen
4-wire
5-wire
I2C
USB
RS232
G057VCE-TH1
Innolux
450
640×480
TTL
115.2(W)×86.4(H) mm
-30~ 85 °C
√
Customizable
G057VN01 V220
AUO
700
G057VTN01.110
550
G057QAN01.0
500
320×240
G057QAN01.1
800
TM057KDHG04
Tianma
-20 ~ 70 °C
TM057KBHG01-40
320
115.2(H)×86.4(V) mm
TCG057QVLCS-H50
Kyocera
1000
HXD057FIA10
HXD
1920×1080
LVDS
126.2(W)×70.99(H) mm

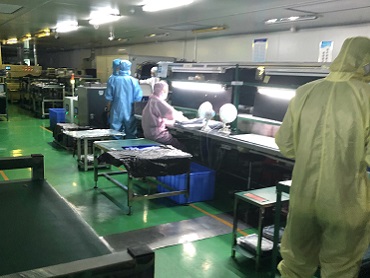

The 5.7-inch industrial display kit integrates the TFT LCD panel and touch screen through either frame bonding or full bonding. Our company selects mature and reliable TFT LCD panels and touch screens as standard components. We can provide corresponding products according to customer requirements and also offer customization services for both TFT LCD panels and touch screens.The bonding process directly determines the display effect, touch accuracy, reliability, and service life of the LCD touch screen module. Our production is carried out in a constant-temperature, constant-humidity cleanroom that meets industrial-grade cleanliness standards. The entire bonding process follows standardized operating procedures, and reliability testing is implemented to ensure product stability.We support bonding for full-size and full-type touch modules and can fulfill customized bonding requirements for various professional fields, including industrial, automotive, outdoor, medical, and other applications.
Q1: What are the available touch options for the 5.7-inch industrial display kit?
A: The 5.7-inch industrial display kit supports both resistive touch and capacitive touch solutions. Resistive touch screens feature lower cost, simpler maintenance and strong anti-interference capability, while capacitive touch screens provide high light transmittance, clearer and more transparent display effect, and support multi-touch.
Q2: What bonding processes do you offer?
A: We support both frame bonding and full bonding to meet different cost and performance requirements.
Q3: How is the bonding quality guaranteed?
A: Our bonding process is carried out in a constant-temperature, constant-humidity cleanroom in the factory. Operators follow strict requirements, with standardized operations throughout the whole process and reliability testing conducted to ensure stable product performance.Products may be replaced free of charge if damaged by non-human factors from the date of shipment. We provide a one-year warranty for each model.
Q4: What industries is this industrial LCD display kit suitable for?
A: It is widely used in industrial control (CNC machines, PLC panels, HMI, automation equipment), automotive (car navigation, multimedia systems), medical (patient monitors, analyzers, portable diagnostic devices), outdoor equipment (field testing instruments, handheld terminals), instrumentation (measuring devices, control panels) and smart terminals (charging piles, self-service payment terminals).
Q5: Can I order samples for testing?
A: Certainly! However, we do not provide free samples. We highly recommend that customers order 1 to 10 pieces for testing before making a bulk purchase. If the sample test goes well, we will be pleased to apply for a partial discount on your order. In addition, please contact our sales manager for detailed information on the stock quantity of each product model.
The LCD Controller Board, also called LCD Driver Board, is the core control module of a TFT LCD display. It converts digital image signals from a PC or other sources into driving signals that the LCD can recognize, enabling accurate and stable display output. It serves as the critical bridge between input signals and the LCD screen, ensuring proper functionality of the display system. The LCD AD Board (LCD Controller Board) supports a wide range of mainstream input interfaces, including VGA, HDMI, DVI, and DP, and drives industrial-grade LCD panels precisely through output interfaces such as LVDS, eDP. HXDLCD offers highly customized LCD Controller Board solutions, complete with cable kits and dedicated firmware development tailored to your specific panel. Ideal for applications including industrial monitors, medical displays, POS systems, railway displays, digital signage, and kiosks. ● Built with renowned chip solutions for superior reliability ● Supports up to 4K resolution (4096×2160 @ 60Hz) ● Comprehensive technical documentation and full OEM/ODM customization services provided
