♦ Size: 6.5 inch
♦ Available Brightness: 300~1200 nits
♦ Available Resolution: 640x480/800x480, etc. (customizable)
♦ Optional Touch Screen: Resistive Touch Screen (4-Wire/5-Wire)
Capacitive Touch Screen(I²C/USB/RS232), etc.
♦ Bonding Method: Optional Bonding Technology
(Air Bonding (Frame Bonding) / Full Bonding)

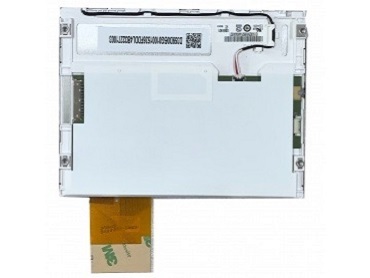

Our 6.5-inch bonded touch screen display module is a high-stability and highly adaptable display solution designed specifically for industrial scenarios. It covers multiple fields including industrial control, automotive applications, medical equipment, and outdoor devices, boasting core advantages such as wide temperature adaptability, flexible compatibility, and reliable long-term operation.For the screen specifications, standard resolutions include 640×480 and 800×480. The kit adopts IPS wide-viewing angle display technology, with brightness options of standard brightness or high-brightness version to meet different environmental needs.In terms of touch and bonding configurations, customization is supported: you can choose between resistive touch screen and capacitive touch screen according to specific requirements, and select frame bonding or full bonding as the bonding process.Our products undergo strict quality control. We also provide high-quality after-sales guarantee and technical support. If you have any needs, please contact our staff via the contact information provided on the website to request a quotation, consult product details, or obtain the specification sheet. Below is a table showing some of our 6.5-inch bonded touch screen display modules for your reference when making a selection.
Table 1---6.5-inch Bonded Touch Screen Display Module
| TFT LCD Display | Touch Screen | ||||||||||
| Model | Brand | Brightness (nit) | Resolution | Interface | Active Area | Operating Temperature | Resistive Touch Screen | Capacitive Touch Screen | |||
| 4-wire | 5-wire | I2C | USB | RS232 | |||||||
| G065VN01 V221 | AUO | 800 | 640×480 | LVDS | 132.48(W)×99.36(H) mm | -30 ~ 80 °C | √ | Customizable | √ | √ |
|
| Tianma | 1200 | 640×480 | LVDS | 132.48(W)×99.36(H) mm | -30 ~ 80 °C | √ | Customizable | √ | √ |
| |
| P0650VGF1MA01 | Tianma | 1200 | 640×480 | TTL | 132.48(W)×99.36(H) mm | -30 ~ 80 °C | √ | Customizable | √ | √ |
|
| P0650VGF2MB30 | Tianma | 650 | 640×480 | LVDS | 132.48(W)×99.36(H) mm | -30 ~ 80 °C | √ | Customizable | √ | √ |
|
| TX17D01VM2CAA | KOE | 600 | 640×480 | TTL | 132.48(W)×99.36(H) mm | -20 ~ 70 °C | √ | Customizable | √ | √ |
|
| HXD06501ATP50-24A | HXD | 300 | 800×480 | RGB | 143.4(W)×76.7(H) mm | -20 ~ 70 °C | √ | Customizable | Customizable | Customizable | |

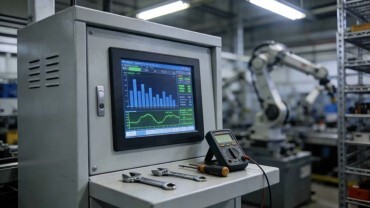

The 6.5-inch bonded touch screen display module is widely applied across various scenarios. For industrial HMI, it is used in CNC machine tools, automated production line operation panels, industrial PCs, PLC touch screens and equipment control panels, delivering clear and stable display as well as efficient interactive control for industrial manufacturing. In medical and healthcare devices, it serves for patient monitors, analyzers and portable diagnostic equipment, meeting the strict requirements for display accuracy and operational reliability in medical scenarios. For automotive applications, it supports car navigation systems, rearview imaging and multimedia all-in-one units. It can also be integrated into portable terminals and handheld devices such as outdoor testing instruments, and is commonly used in commercial displays including charging pile screens and self-service payment terminals.
Q1: What is the operating temperature range?
A: The operating temperature range of this product is -30°C to 80°C, featuring excellent wide-temperature performance. It can stably withstand high-temperature environments and extreme cold conditions, ensuring reliable performance even in harsh outdoor or industrial scenarios.
Q2: What is the brightness range for your 6.5-inch bonded touch screen display module?
A: Our 6.5-inch bonded touch screen display module covers a brightness range of 300-1200 nits. The 1200-nit model is optimized for high-sunlight outdoor environments, meeting extreme brightness visibility demands. If you have specific brightness requirements, contact our sales managers and technical team for a professionally customized 6.5-inch bonded touch screen display module tailored to your needs!
Q3: What are the core differences between resistive and capacitive touch screens?
A: The core difference lies in their working principles: resistive touch screens rely on pressure sensing, while capacitive touch screens detect human body capacitance.Resistive touch screens are unaffected by water and dust, support operation with gloves or a stylus, have a lower cost, and offer greater stability in harsh environments.Capacitive touch screens support multi-touch, provide smoother operation, feature faster response, and have a more durable surface.
Q4: What is the service life of this 6.5-inch bonded touch screen display module?
A: Under normal working conditions, the service life can reach up to 50,000 hours. Stable performance and reliable structure ensure long-term continuous operation in industrial and vehicle-mounted scenarios.
Q5: What is the warranty period for your 6.5-inch bonded touch screen display module?
A: A 1-year warranty covers manufacturing defects. For non-human-induced damage, repair or replacement services are provided for quality issues arising within the warranty period.
The LCD Controller Board, also called LCD Driver Board, is the core control module of a TFT LCD display. It converts digital image signals from a PC or other sources into driving signals that the LCD can recognize, enabling accurate and stable display output. It serves as the critical bridge between input signals and the LCD screen, ensuring proper functionality of the display system.
The LCD AD Board (LCD Controller Board) supports a wide range of mainstream input interfaces, including VGA, HDMI, DVI, and DP, and drives industrial-grade LCD panels precisely through output interfaces such as LVDS, eDP.
HXDLCD offers highly customized LCD Controller Board solutions, complete with cable kits and dedicated firmware development tailored to your specific panel. Ideal for applications including industrial monitors, medical displays, POS systems, railway displays, digital signage, and kiosks.
● Built with renowned chip solutions for superior reliability
● Supports up to 4K resolution (4096×2160 @ 60Hz)
● Comprehensive technical documentation and full OEM/ODM customization services provided
