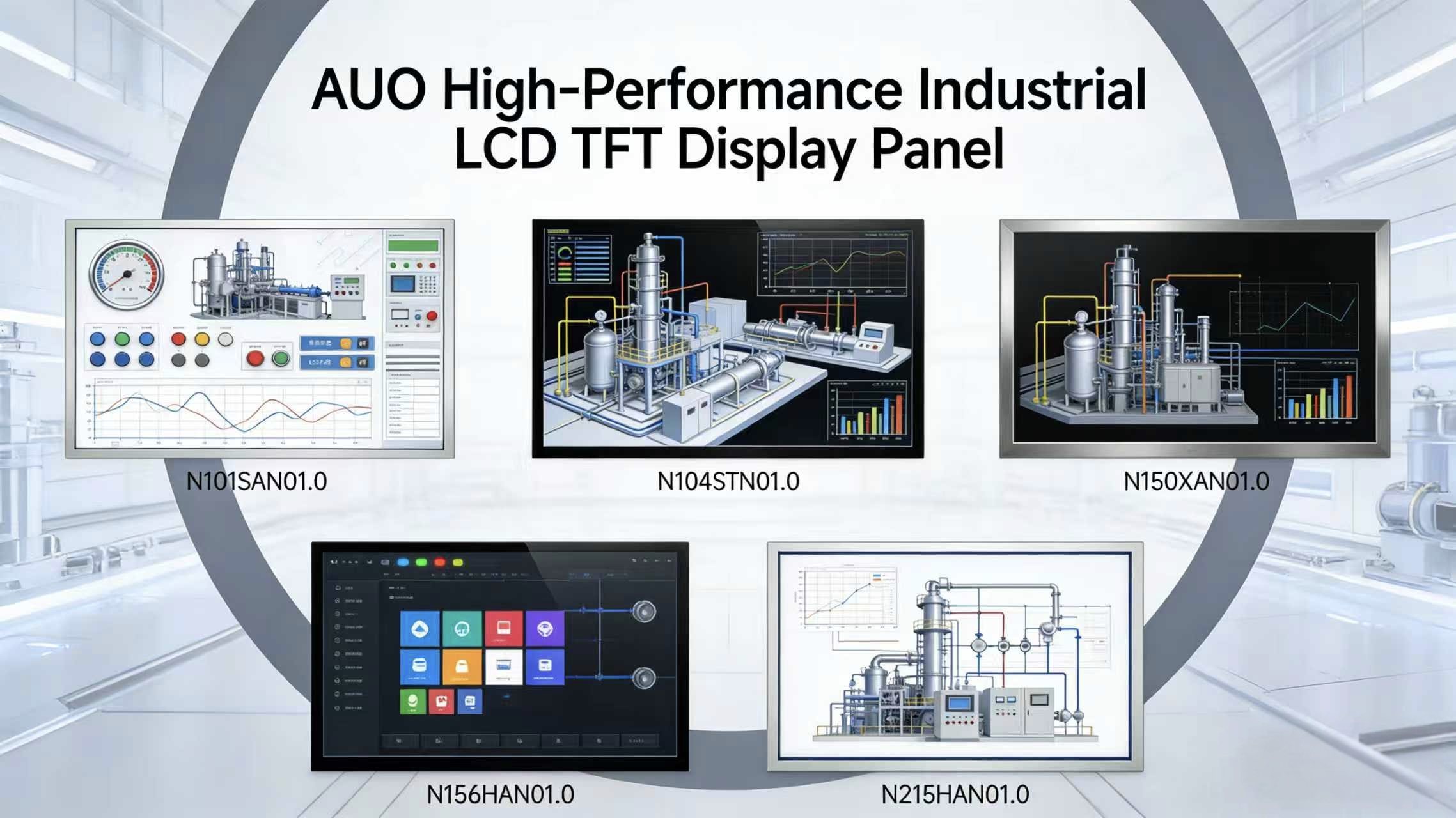

To enhance product competitiveness, AUO (AU Optronics) has identified the core display needs in the industrial sector and developed five cost-effective LCD tft panels: N101SAN01.0, N104STN01.0, N150XAN01.0, N156HAN01.0, and N215HAN01.0.(Click on this model to obtain detailed information). Unlike regular commercial-grade LCD tft panels, these are full-fledged industrial-grade products—designed and manufactured in strict compliance with industrial standards. These five LCD tft displays ensure long-term stable production and supply, completely resolving common issues like supply disruptions and instability in industrial projects, so industrial clients no longer have to worry about supply-related problems.
AUO is a leading brand in the display industry, and its quality has long been proven in the market. Over the years, relying on solid technology and strict quality control, AUO has made many industrial projects covering different application scenarios, earning an excellent reputation in the industry. These five industrial display panels have been in mass use since the first quarter of 2024. Verified through practical application across multiple industries, they not only deliver stable and reliable performance but also feature pricing—offering great cost-effectiveness, making them an ideal choice for LCD display panels in the industrial sector.
Model

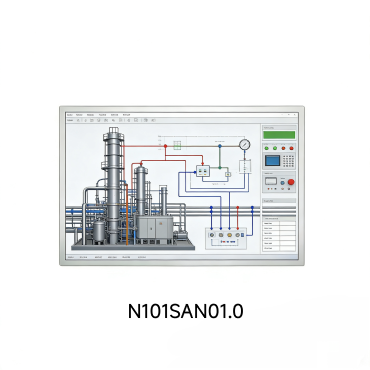

N101SAN01.0

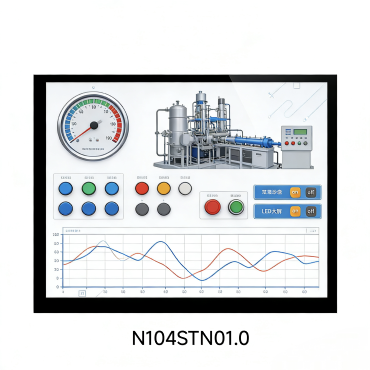

N104STN01.0

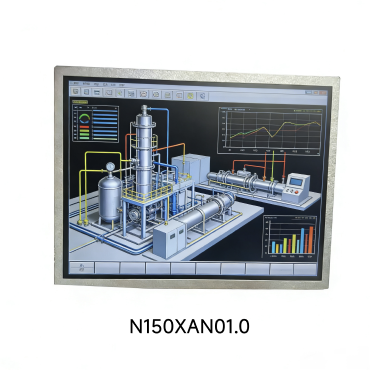

N150XAN01.0

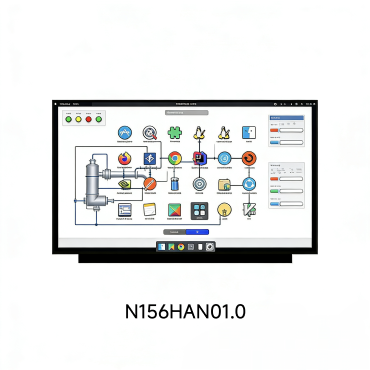

N156HAN01.0
N215HAN01.0
Type
a-Si TFT-LCD module
a-Si TFT-LCD，module
Size
10.1 inch
10.4 inch
15.0 inch
15.6 inch
21.5 inch
Surface
Matte，Hard coating (3H)
Antiglare, Hard coating (3H)
Outline Size (mm)
235(W)×143(H)×5.5(D)
228.4(W)×175.4(H)×6.5(D)
326.5(W)×253.5(H)×10(D)
350.66(W)×216.15(H)×3.2(D)
497.6 (W) × 292.2 (H)
Visual Size (mm)
222.72 × 125.28 (H×V)
211.2 (W)×158.4 (H)
304.128(W)×228.096(H)
344.16(W)×193.59(H)
476.064 (W) × 267.786 (H) (A.A.)
Visual Angle
89/89/89/89 (Typ.)(CR≥10)
75/75/50/50 (Typ.)(CR≥10)
Resolution
1024(RGB)×600, WSVGA,117PPI
800(RGB)×600, SVGA,96PPI
1024(RGB)×768, XGA,85PPI
1920(RGB)×1080, FHD,141PPI
1920（RGB）×1080
Brightness
350 cd/m² (Typ.)
400 cd/m² (Typ.)
250 cd/m² (Typ.)
Contrast
1000：1 (Typ.)(TM)
900:1 (Typ.)(TM)
1000:1 (Typ.)(TM)
800:1 (Typ.)(TM)
1000:1 (Typ.)
Optical Mode
AHVA, Normally Black, Transmissive
AHVA, Normally White, Transmissive
Backlight
8S3P WLED, 30K hours，No Drive
3S6P WLED, 10K hours，No Drive
WLED, 30K hours，LED Drive Included
WLED, 15K hours, LED Drive Included
12S4P WLED , 30K hours , No Drive
Interface
TTL (1 ch, 6/8-bit), FPC, 50 pins
Parallel RGB (1 ch, 6/8-bit), 60 pins, FPC
LVDS (1 ch, 8-bit), 20 pins, Connector
eDP (2 Lanes), eDP1.2, 30 pins, Connector
LVDS (2 ch, 8-bit) , 30 pins Connector
Response Time
25 (Typ.)(Tr+Td) ms
30 (Typ.)(Tr+Td)
25 (Typ.)(Tr+Td)
---
Display Colors
262K/16.7M, 60% NTSC
262K/16.2M, 50% NTSC
16.2M, 60% NTSC
262K, 45% NTSC
16.7M
Driving Power
3.3/10/22/-8V (Typ.)(VDD/AVDD/VGH/VGL)
3.3/11.5/21/-7V (Typ.)(VDDIO/VDD/VGH/VGL)
3.3V (Typ.)
5.0V (Typ.)
Working Frequency
60Hz
Weight
400±20g
920g (Typ.)
1.74Kgs. (Typ.)
Storage Temperature
-30 ~ 70 ℃
-20 ~ 70 ℃
-20 ~ 60 ℃
-20 ~ 60 °C
Working Temperature
-10 ~ 60 ℃
0 ~ 50 ℃
0 ~ 60 °C
Application
Industrial Control
Laptop / Industrial Control
As a LCD tft display module supplier with 12 years of deep expertise, Zhengzhou Hengxinda Technology Co., Ltd has provided high-quality LCD tft panels to thousands of customers across diverse sectors. For these five AUO industrial-grade LCD tft displays, we offer a full suite of supporting services: we not only supply compatible core components such as touch screens and LCD control boards, but also provide all the small parts required for installation, enabling a one-stop solution "LCD tft panels + relevant components + installation assistance". With our in-depth understanding of the application needs of different industries, we can accurately meet customer requirements, facilitating smooth installation and integration while saving both time and costs. Whether you are looking for stable supply, reliable quality, or comprehensive supporting services, these five cost-effective AUO industrial panels are the perfect fit. HXD is committed to advancing your industrial projects successfully with our professional services and complete supporting solutions.
