White LED backlight, 6/8-bit grayscale selectable, matte surface, 6.5mm ultra-thin profile+400g lightweight, 400cd/㎡ brightness + 900:1 contrast, 75/75/50/60° viewing angle (CR≥10)

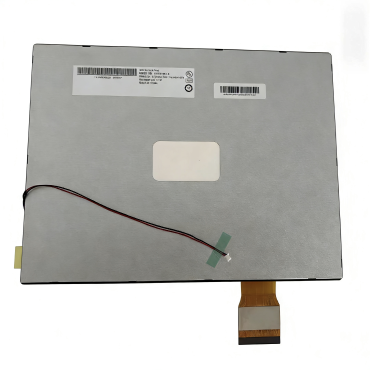

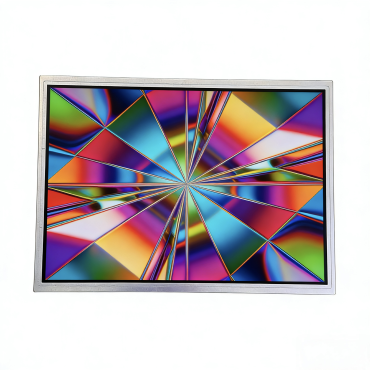

As a a-Si TFT-LCD module for small-sized industrial scenarios, AUO N104STN01.0 presents clear information display with an 800×600 SVGA resolution (96PPI) + 900:1 high contrast in a compact size; 400cd/㎡ brightness + matte 3H hardened coating, which can cope with complex light environments and resist daily scratches and stains, balancing display effect and durability. The thin and light size of 228.4×175.4×6.5mm + lightweight design of 400g perfectly fits space-constrained portable devices, making it a lightweight LCD display panel for industrial and commercial scenarios.
📏 Ultra-slim & Durable 6.5mm ultra-thin profile+400g lightweight build, perfect for portable devices. 3H matte hard coating: scratch-resistant & fingerprint-proof, hassle-free maintenance. 💡 High Brightness & Contrast 400cd/㎡ brightness + 900:1 contrast ratio. Crystal-clear visuals in low outdoor light or strong indoor light. 👁️ Wide Viewing Angle & True Color 75/75/50/60° viewing angle (CR≥10), no color shift from multi-angles. 262K/16.2M colors + 50% NTSC color gamut, meets industrial/commercial color accuracy needs. ⚡ Long Lifespan & Low Power Consumption 35SP WLED backlight (10,000-hour lifespan) + driver-free design: simplifies circuit, cuts maintenance costs. 60Hz refresh rate + 30ms response time: smooth dynamic images, no motion blur.
• Core areas: Portable smart devices, embedded display systems, commercial terminals; • Sub-terminal categories: 1. Handheld industrial inspection instruments 2. Portable medical diagnostic equipment (such as blood glucose meters) 3. Commercial POS cash registers 4. Rear-seat entertainment / control screen for vehicles 5. Handheld PDA in warehousing and logistics 6. Smart Vending Machines
Hengxinda, as a specialized supplier of LCD tft panels, can provide the following services for all products: 1. Equipment adaptation service: Based on the space and power consumption requirements of handheld/ embedded devices, provide Parallel RGB interface debugging + low power consumption driver optimization; 2. Sample and testing support: Provide 1 or 2 samples (not free); can assist in conducting portable scenario simulation tests such as shock resistance, high/low temperature tests; 3. Flexible supply plan: Supports small batch (as low as 1 pieces) samples + large-scale stable supply. Regular inventory ensures delivery within 72 hours, and urgent orders support 24-hour rush delivery; 4. After-sales technical support: Provide 1-year warranty for non-human damage, respond within 24 hours and provide solutions; 5. Component integration: Can assist in integrating dedicated driver boards, touch screens, battery modules and other accessories for portable devices to achieve "LCD tft screen + components" one-stop shopping; 6. Customized services: Can customize size, shape, interface, brightness, resolution, etc. according to your application scenarios.
Q1: Can this LCD tft screen's slim design meet the weight requirements of handheld devices? A: With a 400g lightweight design and a 6.5mm ultra-thin thickness, it perfectly fits the weight and space limitations of handheld devices, without increasing the burden on the device. Q2: What benefits does the backlight-free design bring to the terminal device? A: The backlight-free design simplifies the circuit design of the device, reduces power consumption and cost, and reduces failure points, thereby enhancing the stability of the device. Q3: What is the minimum order quantity for bulk purchases? A: We support small batch purchases. The minimum order quantity is 53 pieces, meeting the research and small-scale production needs of small equipment manufacturers. Q4: Can the LCD tft panel's operating temperature cover outdoor usage scenarios? A: It supports a working temperature range of -10 to 60℃, which can cover the temperature requirements of most outdoor (such as logistics and storage) and indoor portable scenarios.
Q5: Will the display clarity of the matte screen be affected?
A: No! The 3H hardened matte screen can prevent glare, resist scratches, and maintain a clear display effect of 96PPI, balancing practicality and visual experience.
