Portrait mode, high-definition resolution, white LED backlight, lifespan exceeding 15,000 hours, without LED driver and touch function, mirror surface.

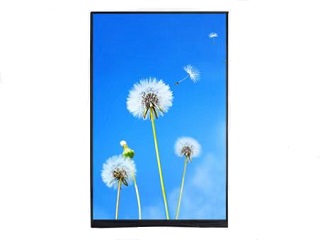

AUO G080UAN02.2 is an 8-inch LCD panel module that applies a-Si TFT-LCD technology. It is equipped with WLED backlight, but without LED backlight driver and touch function. AUO G080UAN02.2 has a display resolution of 1200 (RGB) × 1920 (WUXGA), an aspect ratio of 10:16 (width:height), and uses a vertical RGB pixel arrangement. In terms of backlight, G080UAN02.2 adopts a side 7S3P WLED backlight with a service life of 15K hours. AUO G080UAN02.2 features a MIPI (4 data lanes) signal interface with a total of 40 pins, connected via connectors. The typical display driving voltage is 3.3V (Typ.). The operating temperature ranges from -10°C to 60°C, and the storage temperature ranges from -20°C to 70°C, and offers vibration resistance of 1.5G (14.7 m/s²). Based on the features of AUO G080UAN02.2, it is widely used in industries such as industrial equipment, medical imaging, indoor self-service display devices, and rail transit equipment.
Key Product Specifications:
• Brand: AUO
• Size: 8-inch
• Active Area: 107.64(W)x172.224(H) mm
• Outline Dimension: 114.6(W)x184.125(H)x3.95(D) mm
• Backlight Type: 7S3P WLED, 15K hours, without LED driver
• Resolution: 1200(RGB)×1920, WUXGA, 10:16
• Contrast Ratio: 900:1(Typ.)(TM)
• Interface: MIPI (4 data lanes), 40 pins, Connector
• Operating Temperature: -10~60℃
Product Features:
• Ultra Full HD Wide Viewing Angle: WUXGA resolution + AHVA technology ensures consistent viewing angles in all directions and clear image quality.
• Portrait mode: Portrait mode vertical displays have a longer vertical display area, allowing more content to be displayed at a single glance, which makes reading more convenient. Most control panels, handheld medical devices and self-service terminals feature a vertical design, and vertical screens fit perfectly with the structure of these devices.
• Industrial-Grade Vibration Resistance: With 1.5G (14.7 m/s²) vibration resistance, it features excellent anti-vibration and compression resistance, making it suitable for industrial control, automotive, and complex operating environments.
️✅️ In stock & ready to ship. Best price available. Request a quote now!
The basic parameters of AUO G080UAN02.2 are in the following table:
The original AUO G080UAN02.2 LCD panel is supplied in bare LCD display module. It comes without built-in driver board and without touch screen. No auxiliary accessories are included in the original panel. To facilitate customer system integration and secondary development, we provide fully compatible supporting accessories for this LCD display panel, including dedicated LCD driver board and capacitive touch screens with two mainstream interface options:

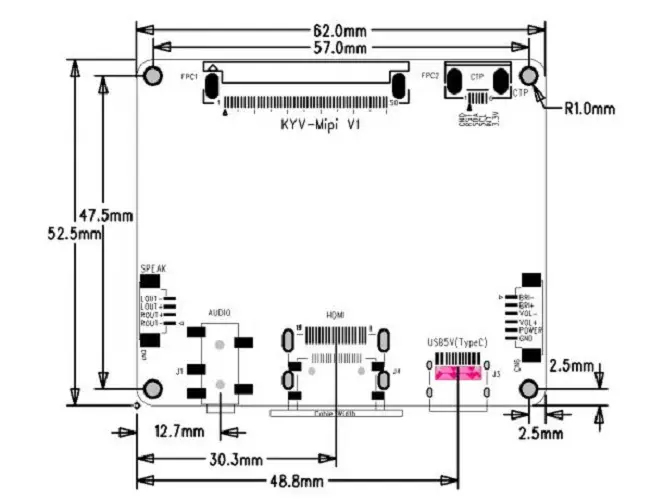

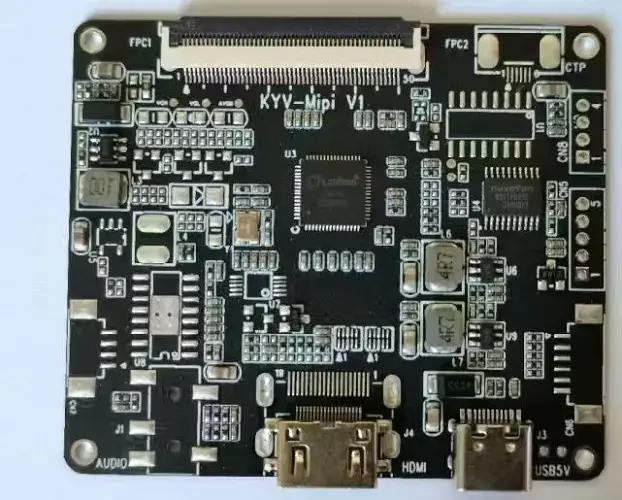

✅️ Compatible LCD Driver Board: Special customized MIPI driver board, perfectly matching the 1200×1920 vertical ultra-FHD resolution of G080UAN02.2, stable display and wide temperature operation, it ensures flicker-free, steady display effect all the time. The LCD control board works reliably under complex operating conditions, well suited for various industrial, medical and embedded display projects.

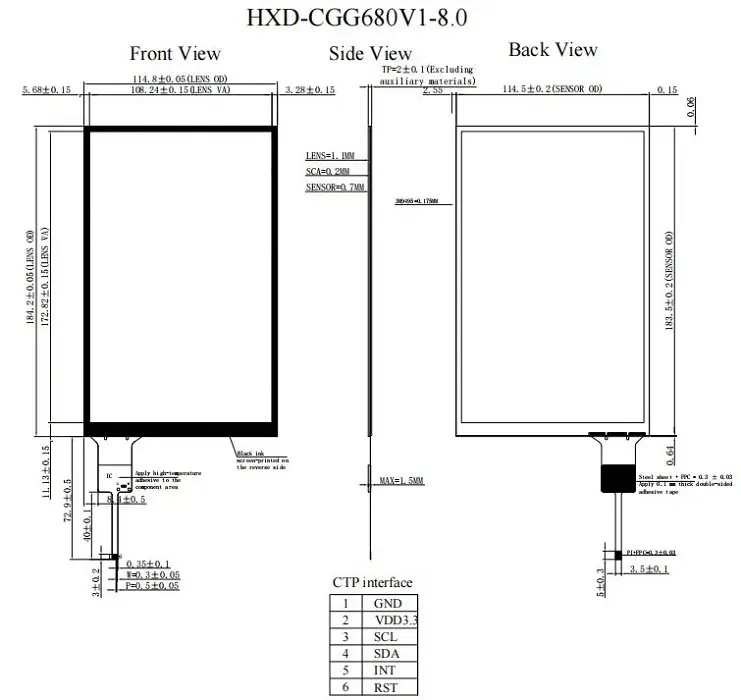

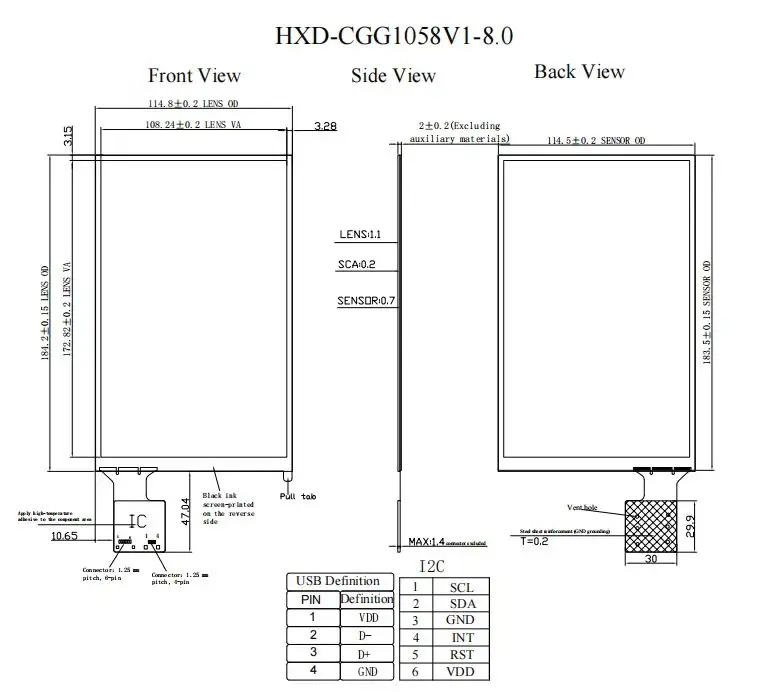

✅️ Compatible Touch Screen: Custom industrial capacitive touch panel specially tailored to fit AUO G080UAN02.2 this 8-inch vertical LCD screen. We supply two mainstream interface: USB touch panel that supports plug-and-play operation for quick installation, and low-power IIC touch panel optimized for embedded systems. Both types boast excellent touch stability and are fully compatible with Windows, Linux and Android mainstream operating platforms.

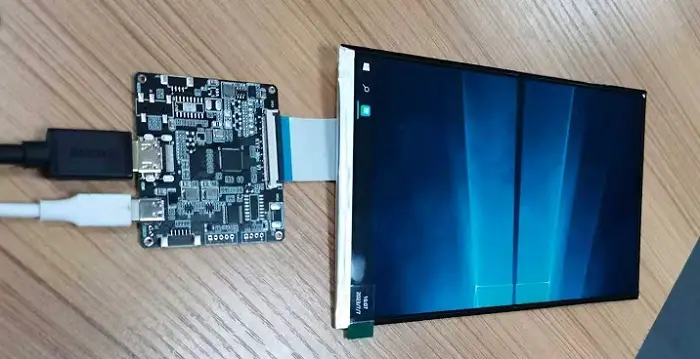

We offer a mature one-stop solution for AUO G080UAN02.2, which includes the LCD panel, matching driver board, touch panel and complete supporting cables as a full set of accessories. This integrated package has been deployed in customer projects with stable and reliable performance during long-term operation. Please feel free to contact us anytime if you require a matched display solution! Customers can purchase the bare LCD display panel separately or select our matched LCD display screen + touch screen + LCD driver board combination solution according to project requirements, greatly saving development cycle and debugging costs.
As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
Why Choose Hengxinda Industrial LCD Panel?
• Competitive Price: All industrial LCD Panel we offer are from original factory. We are a professional supplier of top-tier industrial LCD screens from leading manufacturers such as AUO, Chimei Innolux, BOE, IVO, Sharp, and Kyocera. We source directly from the origin, providing only original industrial LCD screens in original factory packaging.
• One-stop Shopping: In addition to fully custom LCD display modules, we also provide supporting LCD control boards, custom cables and custom touch screen solutions — all products can be purchased together.
• Customization Flexibility: Product dimensions, touch screen types and control board options can all be customized to meet the specific needs of your projects.
• Secure After-Sales Service: We offer a 1-year official warranty. For industrial LCD panels with non-human damage within the warranty period, free replacement or repair is provided.
Q1. Are your TFT LCD displays reliable?
A: The TFT LCD panels we use are brand new and original. All products undergo strict testing before shipment. Our TFT LCD panels have been deployed in numerous projects and have been operating stably over time. You can rest assured of their quality.
Q2.How about your prices?
A: Prices vary depending on the your requirements. We primarily serve the industrial control industry, where quality and stability are our top priorities. However, due to large-scale production, our prices are relatively mid-range compared to the industry average. For the same quality, our prices are more competitive.
Q3: Can you help identify the cause if any problem occurs with the screen during use?
A: We can remotely assist customers in troubleshooting based on the abnormal symptoms of the LCD screen combined with our professional experience. In most cases, however, customers need to send the screen back to us. Our engineers will inspect the unit to locate the fault point, analyze possible causes, and provide corresponding solutions for customers.
Q4: What is the MOQ for the LCD screens?
A: We do not have a minimum order quantity requirement, however, we generally recommend that customers place orders in quantities that are multiples of a full container load after the samples have been approved. A container typically holds between 20 and 80 pieces.
Q5: What is your warranty period?
A: We offer a one‑year warranty. Within the warranty period, for non‑human damage quality issues, we provide free return, replacement or repair service to fully guarantee your experience.
