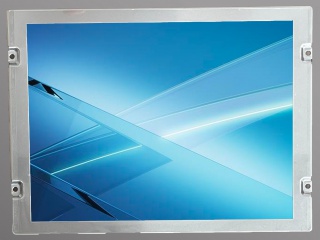

P0840XGF1MA00

P0840XGF1MA00

Download PDF Send Message

Basic Parameters

Panel Brand	TIANMA	panel model	P0840XGF1MA00
Panel size	8.4-inch	panel type	a-SiTFT-LCD, LCD Module
resolution ratio	1024(RGB)x768, XGA,152PPI	pixel layout	RGB vertical stripes
display area	170.496(W)x127.872(H) mm	Appearance size	199.5(W)x149(H)x10.2(D) mm
visible size	173.5 x 130.87 (HxV) mm	surface treatment	matte
Brightness (cd/m²)	1000 cd/m² (Typ.)	contrast	1000:1(Typ.) (transmission)
recommended angle of view	full-view	optical mode	SFT, normally black display, transmissive
visual Angle	88/88/88/88 (Typ.) (CR≥10)	response speed	25 (Typ.) (Tr+Td) ms
number of colors	262K/16.7M , 70% NTSC	backlight system	7S3P WLED,100K hours, without driver
weight	303g (Typ.)	be the same with	industrial engineering
refresh rate	60Hz	touch screen	touchless
signal type	LVDS (1 ch,6/8-bit), Terminals, 20 pins
voltage supply	3.3V (Typ.)
maximum rated	Storage temperature: -40 ° C ~ 90 ° C Working temperature: -30 ° C ~ 80 ° C; Vibration resistance: 2.0G(19.6m/s²)

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P0840VGF1MB00	8.4"	640×480	500 nits	1300:1	WLED	CMOS	40	-30~80 ° C
Tianma	P0840VGF1MA01	8.4"	640×480	800 nits	1300:1	WLED	CMOS	40	-25~70 ° C
Tianma	P0840SVN1MB00	8.4"	800×600	350 nits	500:1	WLED	LVDS	20	-20~70 °C
Tianma	P0840XGF1MA00	8.4"	1024×768	1000 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0840XGF1MB00	8.4"	1024×768	600 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0840VGF1MA00	8.4"	640×480	900 nits	1300:1	WLED	CMOS	40	-30~80 ° C
AUO	G084XAN01.0	8.4"	1024×768	500 nits	800:1	WLED	LVDS	40	-20 ~70 °C
AUO	G084SN05 V904	8.4"	800×600	450 nits	600:1	WLED	LVDS	20	-20 ~70 °C
AUO	G084SN03 V3	8.4"	800×600	250 nits	600:1	WLED	LVDS	20	-20 ~70 °C
