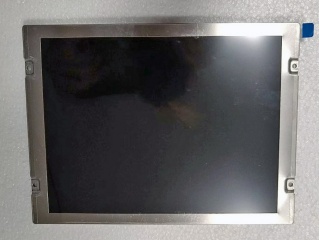

P0840XGF1MB00

P0840XGF1MB00

Download PDF Send Message

Basic Parameters

Panel Brand	TIANMA	panel model	P0840XGF1MB00
Panel size	8.4-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1024(RGB)x768, XGA, 152PPI	pixel layout	RGB vertical stripes
display area	170.496(W)x127.872(H) mm	Appearance size	199.5(W)x149(H)x10.2(D) mm
viewable area	173.5(W)x130.87(H) mm	surface treatment	matte
panel brightness	600 cd/m² (Typ.)	contrast	1000:1 (Typ.) (TM)
visual Angle	88/88/88/88 (Typ.) (CR≥10)	work pattern	SFT, normally black display, transmissive
viewing direction	full-view	reaction time	25 (Typ.) (Tr+Td) ms
display color	262K/16.7M	light source type	7S3P WLED,50K hours, with LED driver
working frequency	60Hz	touch screen	touchless
Panel Weight	301g (Typ.)	panel application	industrial engineering
signal interface	LVDS(1 ch,6/8-bit), 20 pins, terminals
driving voltage	3.3V (Typ.)
work environment	Working temperature:-30 ° C to 80 ° C; Storage temperature:-40 ° C to 90 ° C; Vibration resistance:2.0G(19.6m/s²)

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P0840XGF1MA00	8.4"	1024×768	1000 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0840VGF1MB00	8.4"	640×480	500 nits	1300:1	WLED	CMOS	40	-30~80 ° C
Tianma	P0840VGF1MA01	8.4"	640×480	800 nits	1300:1	WLED	CMOS	40	-25~70 ° C
Tianma	P0840SVN1MB00	8.4"	800×600	350 nits	500:1	WLED	LVDS	20	-20~70 °C
Tianma	P0840XGF1MB00	8.4"	1024×768	600 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0840VGF1MA00	8.4"	640×480	900 nits	1300:1	WLED	CMOS	40	-30~80 ° C
AUO	G084XAN01.0	8.4"	1024×768	500 nits	800:1	WLED	LVDS	40	-20 ~70 °C
AUO	G084SAN01.0	8.4"	800×600	450 nits	1000:1	WLED	LVDS	20	-20 ~70 °C
AUO	G084SN05 V904	8.4"	800×600	450 nits	600:1	WLED	LVDS	20	-20 ~70 °C
