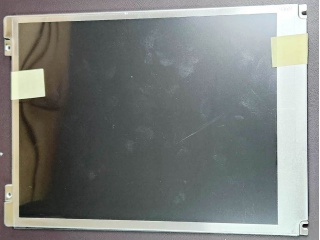

G084SAN01.0

G084SAN01.0

Download PDF Send Message

Basic Parameters

Panel Brand	AUO	panel model	G084SAN01.0
Panel size	8.4	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	800(RGB)×600, SVGA, 119PPI	pixel layout	RGB vertical stripes
display area	170.4(W)×127.8(H) mm	Appearance size	203(W)×142.5(H)×8.3(D) mm
Brightness(cd/m²)	450 (Typ.)	the contrast	1000 : 1 (Typ.) [Transmission]
visual Angle	89/89/89/89 (Typ.) (CR≥10)	surface treatment	Hard coating (3H)
number of colors	262K/16.7M , 45% NTSC	optical mode	AHVA, normally black display, transmissive
Panel Weight		response time	15/10 (Typ.) (Tr/Td) ms
best angle	full-view	Backlight type	WLED , 50K hours with LED driver
frame frequency	60Hz	use for	industrial engineering
signal interface	LVDS (1 ch, 6/8-bit) , Terminals, 20 pins	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P0840SVN1MB00	8.4"	800×600	350 nits	500:1	WLED	LVDS	20	-20~70 °C
Tianma	P0840VGF1MA01	8.4"	640×480	800 nits	1300:1	WLED	CMOS	40	-25~70 ° C
Tianma	P0840XGF1MB00	8.4"	1024×768	600 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0840VGF1MA00	8.4"	640×480	900 nits	1300:1	WLED	CMOS	40	-30~80 ° C
Tianma	P0840XGF1MA00	8.4"	1024×768	1000 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0840VGF1MB00	8.4"	640×480	500 nits	1300:1	WLED	CMOS	40	-30~80 ° C
AUO	G084XAN01.0	8.4"	1024×768	500 nits	800:1	WLED	LVDS	40	-20 ~70 °C
Kyocera	TCG084SVLPAAFA-AA20-S	8.4"	800×600	320 nits	500:1	WLED	LVDS	30	-20~70℃
Kyocera	TCG084VGLAAAFA-AA00-S	8.4"	640×480	360 nits	500:1	WLED	Parallel RGB	40	-20~70℃
Kyocera	TCG084SVLAFCNN-GN23	8.4"	800×600	400 nits	500:1	WLED	LVDS	30	-20~70℃
Kyocera	TCG084SVLBADNN-AN20	8.4"	800×600	400 nits	800:1	WLED	LVDS	30	-20~70℃
