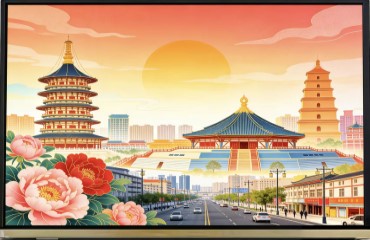

G101UAN01.0

G101UAN01.0

White LED Backlight, Integrated LED Driver, Reverse-Mount Terminals, eDP 1.2 Interface.

Download PDF Send Message

10.1" 1920x1200 WUXGA eDP Interface LCD Panel | AUO G101UAN01.0

AUO G101UAN01.0 is a 10.1-inch ultra-high-definition industrial LCD module that combines exceptional pixel density with a modern eDP interface—all in an incredibly slim and lightweight package designed for today's most advanced portable and space-constrained equipment. The landscape-oriented WUXGA format (1920×1200) is optimized for applications that display wide-format content—spreadsheets, control panels, video feeds, and side-by-side data views. It gives you more horizontal real estate exactly where most industrial applications need it. At just 5.35mm thin and 140g light , AUO G101UAN01.0 is suitable for designers of handheld terminals, portable medical devices, and mobile equipment. You can build sleeker products, add more features within the same weight budget, or simply make your devices more comfortable for users to hold and use throughout long shifts.When you choose AUO G101UAN01.0, you're choosing a LCD display that combines ultra-high resolution with genuinely portable physical characteristics.





AUO G101UAN01.0 Basic Parameters

Panel Brand AUO Panel Model G101UAN01.0
Panel Size 10.1 inch Panel Type a-Si TFT-LCD,LCD Module
Resolution 1920(RGB)×1200, WUXGA, 224PPI Pixel Layout RGB vertical stripes
Display Area 216.81(W)×135.5(H) mm Appearance size 227.72(W)×147.8(H)×5.35(D) mm
Brightness(cd/m²) 380 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (transmission)
Visual Angle 89/89/89/89 (Typ.) (CR≥10)  Surface Treatment Hard coating
Display Colors 16.7M , 52% NTSC Display Mode AHVA, normally black display, transmissive
Panel Weight 140g (Max.) Response Time 25 (Typ.) (Tr+Td) ms
Optimal Visual Angle 6 o'clock Backlight WLED , 30K hours with LED driver
Working Frequency 60Hz   Application Industrial Engineering
Interface 30 pins, eDP (2 Lanes) , eDP1.2 , Connectors Touch Function No
Driving Voltage 3.3V (Typ.)
Application Environment Operating Temperature: -10 ~60 °C ; Storage Temperature: -20 ~60 °C

AUO G101UAN01.0 Interface Details

Signal Electrical

Current Input

200/240mA (Typ./Max.)

Voltage Input

3.3V (Typ.)

Consumption

0.66/0.79W (Typ./Max.)

Signal System

eDP (2 Lanes), eDP1.2

Interface Features

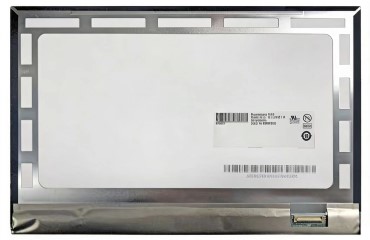

Position

back

Type

Connector

Connector Detail

Brand

Model

Amount

Pin Pitch

Pins

I-PEX

20455-030E-12

1pcs

0.5 mm

30 pins



AUO G101UAN01.0 Application Scenarios & End Products

• Medical & Healthcare Devices

Terminals: Portable diagnostic tablets, handheld patient monitors, mobile medical workstations, ultrasound viewers, clinical review devices etc.

AUO G101UAN01.0 224 PPI resolution ensures every detail in diagnostic images is visible, while its ultra-light 140g weight makes handheld devices comfortable for extended use. The eDP interface simplifies integration with modern medical processors.

• Industrial Portable Terminals

Terminals: Field service tablets, equipment diagnostic tools, maintenance terminals, inspection devices, portable HMI controllers etc.

AUO G101UAN01.0 construction means your devices can be lighter and more comfortable without sacrificing screen size or clarity. The 1920×1200 resolution ensures schematics and detailed diagrams remain readable, while the eDP interface provides future-proof connectivity.

• Transportation & Logistics

Terminals: Delivery driver tablets, warehouse handheld scanners, fleet management devices, vehicle-mounted displays, logistics coordination terminals etc.

AUO G101UAN01.0 slim profile allows for more ergonomic handheld designs that workers can use comfortably throughout long shifts. Faster workflow processing, reduced reading errors.
