G104SN03 V1

Replacable backlight, 180-degree flip display, 6/8-bit grayscale options available, matte surface

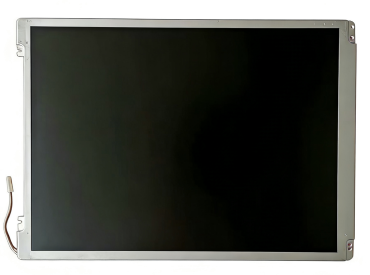

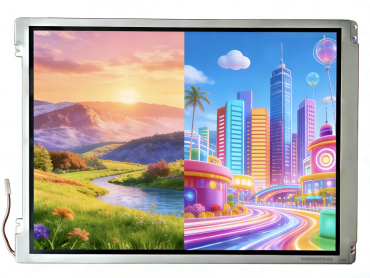

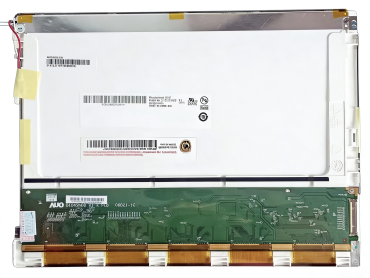

AUO G104SN03 V1

AUO G104SN03 V1 is a 10.4-inch LCD display panel designed for traditional stable scenarios. The NTSC color gamut is 45% and the color count is 262K, which can meet the clear presentation of basic data and graphics. Its core advantages are "stability + compatibility with old devices": with 30K hours of CCFL backlight, it is compatible with most legacy driver systems; it is 6.0mm thin and weighs 300g, suitable for compact structures of small terminals.

Basic Parameter

Brand	AUO	Model	G104SN03 V1
Size	10.4 inch	Type	a-Si TFT-LCD,LCD Module
Resolution	800(RGB)×600, SVGA, 96PPI	Pixel Layout	RGB vertical stripes
Display Area	211.2(W)×158.4(H) mm	Appearance Size	236(W)×174.3(H)×6(D) mm
Brightness(cd/m²)	230 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.) (transmission)
Visual Angle	80/80/60/80 (Typ.) (CR≥10)	Surface	Matte, Hard coating (3H)
Display Colors	262K/16.2M , 45% NTSC	Optical Mode	TN, normally white display, transmissive
Weight	300g (Typ.)	Response Time	10/20 (Typ.) (Tr/Td) ms
Best Angle	6 o'clock	Backlight	CCFL [1 pcs] , 30K hours,
Working Frequency	60Hz	Application	Industrial engineering
Interface	20 pins, LVDS (1 ch, 6/8-bit), Terminals	Touch Screen	No
Driving Voltage	3.3V (Typ.)
Environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C

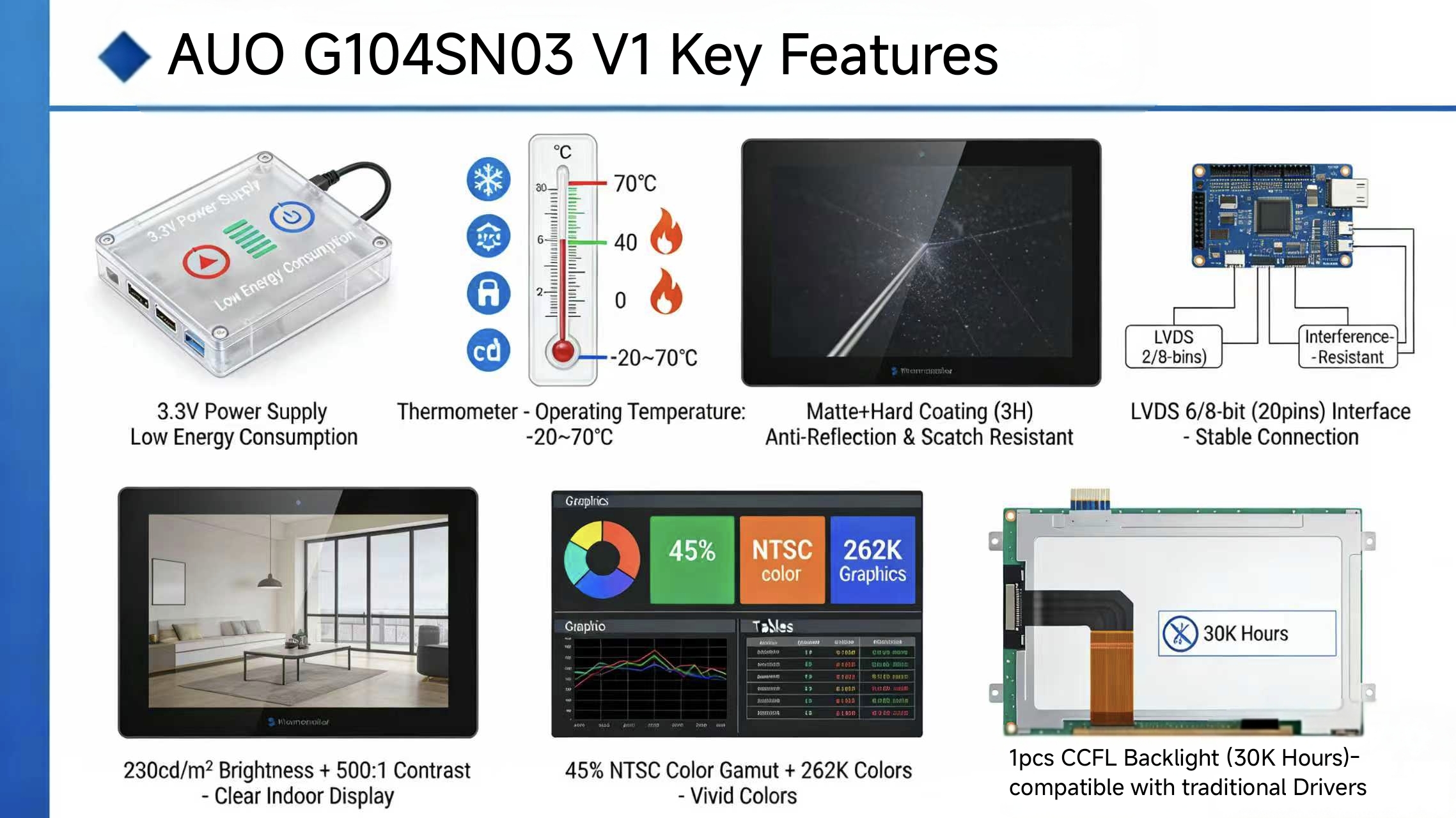

AUO G104SN03 V1 TFT LCD Panel Key Features

♦ 3.3V: Reducing the overall power consumption of the device.

♦ -20~70℃ operating temperature: Wide temperature adaptation.

♦ Matte+Hard coating (3H): Anti-reflection from environmental light, scratch-resistant.

♦ LVDS 6/8-bit (20pins) interface: Stable compatibility, interference-resistant transmission.

♦ 230cd/m² brightness + 500:1 contrast ratio: In indoor environments, data and text display is clear.

♦ 45% NTSC color gamut+262K colors: Meeting the display requirements for scenarios such as graphics, tables, etc.

♦ 1pcs CCFL backlight (30K hours): Compatible with traditional drivers, matching the CCFL backlight driver system of old equipment.

HXD Service for AUO G104SN03 V1 LCD TFT Panel Display

1. Flexible customization service
Supports personalized adjustment of LCD tft panel core parameters, covering size, shape, brightness, interfaces, resolution and other aspects, to meet the differentiated requirements of your terminal products.

2. "One-stop Shopping" Experience
In addition to the LCD display screen, we also supply a complete set of related accessories including LCD driver board, LCD touch screen, light sensor, and adapter cable, to create an integrated display solution for you.

3. Reliable Logistics Transportation

We offer door-to-door shipping services, supporting transportation such as air freight, sea freight, and express. You can choose shipping flexibly according to your delivery deadline requirements. Standard LCD tft products are sent within 48 hours to 7 days, while customized products are sent within 7 to 20 days.

4. After-sales Service
We offer a 12-month official warranty. During the warranty period, if the LCD tft screen is not damaged by human factors, it can be replaced or repaired free of charge.

AUO G104SN03 V1 Notes:

1. Long-term standby recommendation: If the device is on standby for more than 72 hours, it is recommended to set "1 hour automatic low brightness" to extend the backlight lifespan.

2. Backlight type compatibility: Using CCFL backlight requires a dedicated CCFL driver board. Direct connection to LED backlight driver is not allowed; otherwise, the backlight may be damaged.

3. Cleaning precautions: Anti-reflective screens should not be wiped with strong solvents such as alcohol or acetone. It is recommended to gently wipe with a dry soft cloth to avoid damaging the coating.

4. Viewing angle limitation: The viewing angle is 80/80/60/80° (6 o'clock viewing angle). The bottom viewing angle is relatively narrow. When installing, avoid placing the device directly facing the main viewer.

5. Interface wiring specification: The LVDS interface must strictly correspond to the pin definitions (especially the power and ground pins). Reversing the connection will cause the module circuit to burn out.

6. Temperature and humidity control: Working temperature range is -20 to 70℃, storage temperature range is -30 to 80℃. Avoid operating the device for a long time in environments with temperatures ≥ 60℃ or ≤ -10℃ to prevent accelerated aging of the backlight.

FAQs:

1. What is the minimum order quantity?
A: The inventory for each product varies. Please contact our sales manager for confirmation.

2. What payment methods are available?
A: Full payment is required for sample orders; for bulk orders, a 50% deposit plus 50% balance (to be settled before shipment) is supported (including T/T, PayPal, Alipay, etc.).

3. What should I do if there is a display screen glitch after delivery?
A: Before shipment, we will conduct simulation tests for each product and send you the simulated display videos. If there is a problem after delivery, please provide the wiring diagram and display video first, and the technicians will remotely troubleshoot; if it is a hardware issue, you can send it back for free repair or replacement.

4. Can you provide the ROHS for the product?
A: Yes, we can. After placing the order, we will provide the ROHS compliance report along with the product, assisting with equipment approval.

5. Can you provide accessories?
A: Of course! We offer LCD driver boards, LCD touch screens, light sensors, and related cables and parts. Please contact us for confirmation.

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
BOE	ET104S0M-N15	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70℃
BOE	GV104X0M-N10	10.4"	1024×768	450 nits	1100:1	WLED	LVDS	30	-30~85 ° C
BOE	BA104S01-300	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70 °C
BOE	BA104S01-200	10.4"	800×600	300 nits	800:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVN1ME10	10.4"	800×600	350 nits	500:1	WLED	TTL	60	-20~70 ° C
Tianma	P1040XGF1MB01	10.4"	1024×768	500 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040XGF1MA00	10.4"	1024×768	1300 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P1040SVF1MB00	10.4"	800×600	400 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVF1ME00	10.4"	800×600	400 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Innolux	G104XCE-LM1	10.4"	1024×768	350 nits	1000:1	WLED	LVDS	30	-20~70 ° C
Innolux	G104XCE-LH1	10.4"	1024×768	1000 nits	1000:1	WLED	LVDS	30	-30~85 ° C
Innolux	G104XCE-L01	10.4"	1024×768	500 nits	1000:1	WLED	LVDS	30	-30~85 °C
Innolux	G104ACJ-PH1	10.4"	960×1280		1000:1	No Backlight	LVDS	50	-40~85 °C
Innolux	G104ACE-LH1	10.4"	800×600	400 nits	1000:1	WLED	LVDS	30	-30~85 °C
Innolux	G104ACJ-L01	10.4"	960×1280	900 nits	1000:1	WLED	LVDS	50	-40~85 ° C
