Wide temperature, WLED backlight, lifespan ≥ 50k hours, with LED driver, 180° flip display, 6/8-bit grayscale options

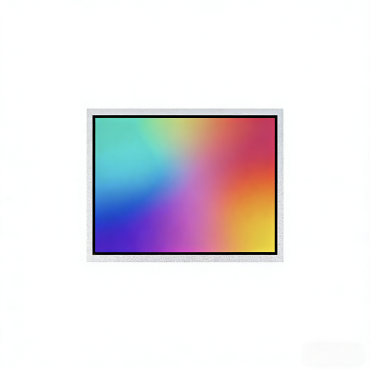

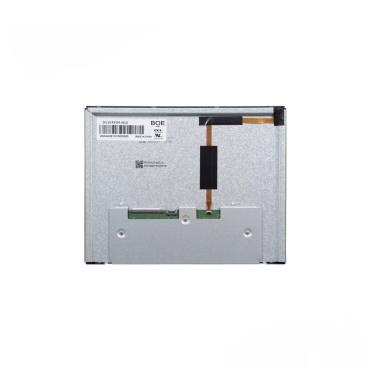

BOE GV104XM-N10 is a 10.4-inch full-view industrial-grade LCD TFT display module: ADS full-view technology enables viewing at any angle with clear and color-neutral images; with a 1024×768 XGA high-definition resolution + 70% NTSC wide color gamut + 1100:1 high contrast ratio, it presents industrial data and inspection images with greater delicacy and accuracy; with an ultra-wide operating temperature range of -30~85°C + 50K long-life backlight, it can withstand extreme environments in outdoor and workshop settings, while also reducing equipment maintenance costs. It is the preferred solution for industrial displays that are high-definition, durable, and user-friendly.
Pixel Features
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.0685×0.2055 mm
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2055×0.2055 mm [123PPI]
Mechanical Size
Display Area
210.432(W)×157.824(H) mm
Outline Dimension
230(W)×180.2(H) mm
Visual Dimension
215.4(W)×161.8(H) mm
Outline Depth
10.4±0.2 mm
Outline Features
Appearance Shape
Flat Rectangle
Orientation
Landscape mode
Aspect Ratio (W:H)
4:3
Shape Style
-
Way to Install
Side mounting holes (4-M3) on left, right bezel
Other Features
Weight
700±35g
Surface
Basic Information
Brightness (cd/m2)
450
Contrast Ratio
1100:1 (Transmission)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
ADS, Normally Black, Transmissive
Viewing Direction
Full-view
Response Time
30 (Typ.)(Tr+Td) (ms)
Color Performance
Chromaticity
Wx:0.315; Wy:0.340
Color Numbers
262K/16.7M (6-bit / 8-bit)
Color Temperature
6304K
Uniformity
1.25 (Typ.)(9 points)
1931 Color Gamut
NTSC Ratio
69%
sRGB
89%
Adobe RGB
71%
DCI-P3
REC2020
52%
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

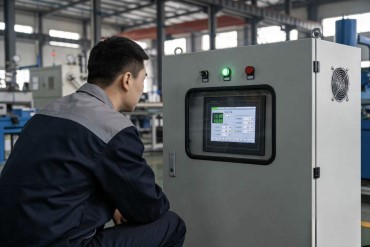

Production line control console screen, industrial inspection tablet, workshop small control cabinet panel: With wide temperature characteristics, displaying operating parameters of the equipment and support the viewing needs of staff with a full viewing angle.

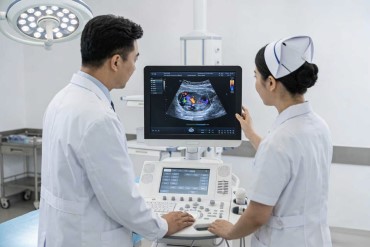

Multi-person collaborative diagnosis instrument screen (ultrasound / electrocardiogram equipment), laboratory high-precision detection equipment screen (chemical / biological analyzer), hospital self-service registration / payment screen: With full perspective + wide color gamut + wide temperature range, it takes into account image accuracy, operational convenience and environmental durability.

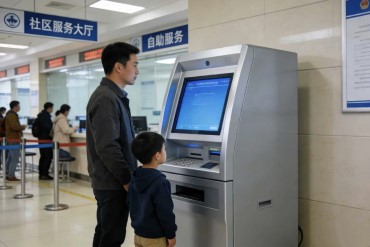

Government self-service terminal screens, bank self-service inquiry terminal screens, supermarket self-checkout terminal screens, and smart vending machine screens: With full-angle + high brightness, meeting the operational needs of different people and the clear display requirements in strong light environments.

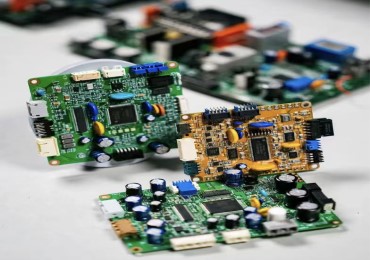

Custom-Matched Driver Boards
We provide industrial-grade driver boards fully compatible with the GV104XM-N10, supporting plug-and-play functionality via LVDS interface. Built-in with industrial-grade chips, these driver boards are suitable for operation within a temperature range of -30°C to 85°C.
Customized Touch Screens
Capacitive touch screens or resistive touch screens in corresponding sizes can be configured according to your device requirements. The resolution and touch accuracy of the touch screens are perfectly matched to the display performance of the LCD TFT display panels.
High-Precision Bonding Technology
We offer Air bonding and Frame bonding services for integrating touch screens with LCD TFT display panels, adopting industrial-grade bonding processes. The bonding tolerance is controlled within ±0.2mm, with additional dust-proof and anti-fog treatment applied.
If you need a customized integrated solution combining LCD display panel, driver board, touch screen and bonding, feel free to contact us. We will provide a tailor-made compatibility plan based on your device parameters and application scenarios!
FAQs:
1. Do you support free samples?
A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.
2. How long is the cycle for customized complementary services (such as touch screen + fitting)?
A: If you choose the standard configuration of touch screen + fitting service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.
3. Is parameter customization supported?
A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.
4. What is the after-sales guarantee for this product?
A: Provide 12 months full machine warranty (including screen and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.
5. Is there a price discount for bulk purchases?
A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
