G104VAN01.0

Wide temperature, white LED backlight, with a lifespan exceeding 70,000 hours, including LED driver, 180-degree flip display, 6/8-bit grayscale options, matte surface

Download PDF Send Message

Wide Temp Industrial TFT LCD Display Panel AUO G104VAN01.0

AUO G104VAN01.0 industrial TFT LCD display module is a highly practical LCD panel that fully adapts to various scenarios: 450 nits brightness + 1000:1 high contrast + matte anti-glare coating, with no color distortion when viewed from the side; 262K colors + 45% NTSC color gamut for detailed reproduction, 20/10ms response speed ensuring smooth data refreshing without ghosting; WLED backlight with a 70K-hour ultra-long lifespan + built-in driver for cost savings, 3.3V low power consumption+(-30~85℃) wide temperature range, capable of withstanding high and low temperatures in industrial workshops and supporting long-term operation of medical equipment, making it the preferred display for embedded and portable devices.

Basic Parameter

Brand	AUO	Model	G104VAN01.0
Size	10.4	Type	a-Si TFT-LCD,LCD Module
Resolution	640(RGB)×480, VGA, 76PPI	Pixel Layout	RGB vertical stripes
Display Area	211.2(W)×158.4(H) mm	Appearance size	243(W)×176.7(H)×8.5(D) mm
Brightness(cd/m²)	450 (Typ.)	Contrast Ratio	1000 : 1 (Typ.) [Transmission]
Visual Angle	89/89/89/89 (Typ.) (CR≥10)	Surface	Hard coating (3H)
Display Colors	262K/16.2M , 45% NTSC	Optical Mode	AHVA, normally black display, transmissive
Weight	TBD	Response Time	20/10 (Typ.) (Tr/Td) ms
Best Angle	Full-view	Backlight	WLED , 70K hours with LED driver
Working Frequency	60Hz	Application	Industrial Engineering
Interface	LVDS (1 ch, 6/8-bit) , Terminals, 20 pins	Touch Function	No
Driving Voltage	3.3V (Typ.)
Environment	Operating temperature: -30 ~85 °C ; Storage temperature: -30 ~85 °C

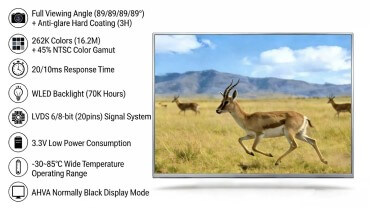

AUO G104VAN01.0 TFT LCD Panel Key Features

450cd/㎡ Brightness + 1000:1 Contrast

Clear in strong light, no dark detail loss

89° Full View + Matte 3H Hard Coating

No side color shift, anti-glare, scratch-resistant

262K Colors (16.2M) + 45% NTSC

Exquisite color reproduction, no recognition error

20/10ms Response Time

No motion blur, smooth interaction

WLED Backlight (70K Hrs)

Long lifespan, low maintenance, cost-saving

LVDS 6/8-bit (20-pins) Signal System

Stable transmission, compact, space-saving

3.3V Low Power Consumption

power-friendly, for portable terminals

-30~85℃ Wide Operating Temp

Withstands extreme temps, for outdoor/industrial use

AHVA Normally Black Mode

Energy-saving for static content display

AUO G104VAN01.0 TFT LCD Panel Application Scenarios

Vehicle-mounted sector: Vehicle display screen, etc.

Agricultural sector: Intelligent greenhouse controller, etc.

Industrial sector: Warehouse PDA base screen, PLC control terminal, etc.

Security sector: Small monitoring host screen, access control visual intercom panel, etc.

Medical sector: Portable electrocardiogram panel, blood collection equipment interactive screen, etc.

Commercial sector: Self-service vending machines, express locker information screen, POS cash register, etc.

AUO G104VAN01.0 LCD TFT Notes

1. Installation Guide

Please note that this product does not include installation instructions. We hereby declare that we are not responsible for any damage caused by improper installation. Please ensure you have the necessary skills to complete the installation before purchasing. Thank you for your understanding and cooperation.

2. Compatibility Guarantee

We promise that the product you receive will be compatible with your device. However, please note that we cannot guarantee other specific functionalities.

3. Quality Assurance and Testing

Every LCD tft panel undergoes comprehensive functional testing before shipment to ensure 100% normal operation upon delivery. During testing, old, damaged, cracked, or malfunctioning filters will be repaired or replaced to ensure the product always performs at its best.

4. Post-delivery Precautions

Upon receiving the product, please do not immediately remove the protective film or apply glue to the back of the LCD tft screen. Please be sure to install the new panel first and test the device's sensitivity. This step effectively confirms product quality and avoids potential damage to the device's motherboard and screen.

5. Safety Guidelines During Testing

Before conducting any testing operation, please make sure to disconnect the power supply of the device to prevent damage to the motherboard and screen due to live operation. If the equipment suffers irreparable damage due to failure to follow this requirement, we are not responsible for it. Please operate carefully and strictly follow the above instructions.

FAQs

1. What are the payment methods available?
A: We support T/T, Alipay/WeChat (for small amounts), and for bulk orders, a 30% deposit plus the final payment will be required for shipment.

2. How long is the delivery time?
A: For international trade, it can be delivered via Fedex/DHL/sea/air freight, with an average delivery time of 3-30 days (depending on the region and the shipping way that you choose).

3. Can your industrial TFT LCD display parameters be customized?
A: For bulk orders, resolution and interface customization are supported. Please communicate the parameters and minimum order quantity in advance.

4. How are the after-sales faults handled?
A: After providing the fault certificate, a solution will be provided within 36 hours. Non-human factors-related issues will be free of charge for return, replacement or repair.

G104VAN01.0

Wide Temp Industrial TFT LCD Display Panel AUO G104VAN01.0

Basic Parameter

AUO G104VAN01.0 TFT LCD Panel Key Features

AUO G104VAN01.0 TFT LCD Panel Application Scenarios

AUO G104VAN01.0 LCD TFT Notes

Browsing History

Related Products

My Inquiry

Latest Important News

Hengxinda Completed High-Quality Custom Cables Shipping Services for Customers

Shipment of 17.3-Inch AUO G173HW01 V0 Industrial LCD Panels for Indoor HMI System Upgrades

AUO G121EAN01.3 Industrial LCD Panel Shipment for Outdoor Power Monitoring System Upgrade

Contact Us

download data sheet

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
BOE	ET104S0M-N15	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70℃
BOE	GV104X0M-N10	10.4"	1024×768	450 nits	1100:1	WLED	LVDS	30	-30~85 ° C
BOE	BA104S01-300	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70 °C
BOE	BA104S01-200	10.4"	800×600	300 nits	800:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVF1MB00	10.4"	800×600	400 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVN1ME10	10.4"	800×600	350 nits	500:1	WLED	TTL	60	-20~70 ° C
Tianma	P1040XGF1MB01	10.4"	1024×768	500 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVF1ME00	10.4"	800×600	400 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Innolux	G104XCE-LH1	10.4"	1024×768	1000 nits	1000:1	WLED	LVDS	30	-30~85 ° C
Innolux	G104XCE-LM1	10.4"	1024×768	350 nits	1000:1	WLED	LVDS	30	-20~70 ° C
Innolux	G104XCE-L01	10.4"	1024×768	500 nits	1000:1	WLED	LVDS	30	-30~85 °C
Innolux	G104ACJ-PH1	10.4"	960×1280		1000:1	No Backlight	LVDS	50	-40~85 °C
