G104VAN02.0

Wide temperature, white LED backlight, with a lifespan exceeding 70,000 hours, 180-degree flip display, matte surface

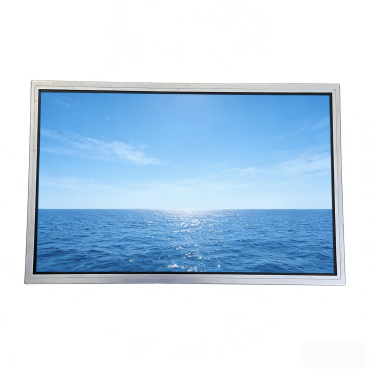

AUO G104VAN02.0

AUO G104VAN02.0 is a 10.4-inch a-Si TFT-LCD tft display module, which can provide your device with clear and stable display: 450cd/㎡ high brightness + 1000:1 high contrast, combined with full viewing angle (89°/89°/89°/89°) display, making it ideal for industrial control; 262K colors + 45% NTSC color gamut, making it suitable for graphic and text, and light video display requirements; and it is equipped with WLED backlight (70K hours of lifespan) + LED driver, eliminating the purchasing cost for additional accessories, and 3.3V low-voltage power supply is also more energy-efficient. -30~80℃ wide temperature range and TTL interface design, allowing it to be used freely in industrial scenarios.

Basic Parameter

Brand	AUO	Model	G104VAN02.0
Size	10.4	Type	a-Si TFT-LCD,LCD Module
Resolution	640(RGB)×480, VGA, 76PPI	Pixel Layout	RGB vertical stripes
Display Area	211.2(W)×158.4(H) mm	Appearance size	243(W)×185.1(H)×11(D) mm
Brightness(cd/m²)	450 (Typ.)	Contrast Ratio	1000 : 1 (Typ.) [Transmission]
Visual Angle	89/89/89/89 (Typ.) (CR≥10)	Surface	Hard coating (3H)
Display Colors	262K, 45% NTSC	Optical Mode	AHVA, normally black display, transmissive
Weight	564g (Max.)	Response Time	20/10 (Typ.) (Tr/Td) ms
View Angle	Full-view	Backlight	WLED [5s3p] , 70K hours with LED driver
Working Frequency	60Hz	Application	Industrial Engineering
Interface	TTL(1 ch, 6-bit) , 31 pins	Touch Screen	No
Driving Voltage	3.3V (Typ.)
Application Environment	Operating temperature: -30 ~80 °C ; Storage temperature: -30 ~80 °C

AUO G104VAN01.0 TFT LCD Panel Key Features

🌈Full-angle view + High contrast:
Solving the problem of color dimming when viewing from multiple angles.
💡WLED backlight + Long lifespan (70K hours):
Reducing the maintenance cost for replacing the backlight of the equipment.
🌟Hard coating (3H) surface treatment:
Improving the LCD tft panel wear-resistance and scratch-resistance

Reducing the appearance damage during daily use.

AUO G104VAN01.0 TFT LCD Panel Application Scenarios

⦿Industrial control equipment: such as PLC touch screens, industrial displays
⦿Medical auxiliary equipment: such as small monitoring instrument displays
⦿Commercial equipment: such as POS machines, self-service inquiry terminals
⦿Smart home equipment: such as smart control screens, visual monitoring panels

⦿Vehicle-mounted display terminals: such as vehicle navigation display panels

HXD Service

1. Flexible Customization Service
Support personalized adjustments to the core parameters of LCD tft screen, covering dimensions, shape, brightness, interfaces, resolution, etc., to meet the requirements of your terminal products.
2. Precise Demand Matching
Based on the scene of your terminal product and combining your core demands, we will precisely recommend LCD tft panel models that are suitable for you.
3. "One-stop Shopping"
In addition to LCD tft displays, we also supply LCD driver boards, LCD touch screens, light sensors, adapter plate and cables, and other complete related accessories.
4. Reliable Shopping Transportation
Can provide door-to-door shipping services, supporting various transportation ways such as air freight, sea freight, and express, and allowing you to flexibly choose according to your delivery time requirements; standard model LCD tft displays products are sent within 48 hours to 7 days, while customized products are sent within 7 to 20 days.
5. Product Quality Assurance
Before each batch of LCD tft panels is sent, aging tests, lifespan tests, and environmental adaptability tests are completed.
6. Reliable After-sales Service
Warranty Guarantee: Provide 1-year warranty. LCD tft panels that are not damaged by human factors within the warranty period can be replaced or repaired free of charge.

FAQs

1. What payment methods are supported?
A: We support wire transfer, Alipay/WeChat (for small orders), and for bulk orders, a 50% deposit plus the final payment can be made in advance for shipment.

2. How long is the delivery time?
A: For export orders, they can be sent via Fedex/sea freight/air freight. The delivery time varies depending on the region, approximately 3-30 days.

3. Can LCD tft screen resolution or interface be customized?
A: Customization is supported for bulk orders. Please communicate the technical parameters and minimum order quantity in advance.

4. How to handle quality issues during after-sales service?
A: After providing photos or videos of the fault, a solution will be provided within 72 hours. Non-human-caused issues can be returned for free repair or replacement.

5. What is the minimum order quantity?
A: The minimum order quantity for the standard model is 2 pieces. For customized models, it needs to be negotiated according to the requirements.
