WLED backlight, with LED driver, 180-degree flip display, 6/8-bit grayscale options available, matte surface. Digitizer compatible.

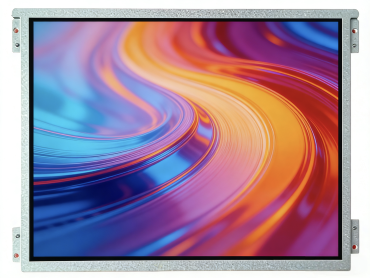

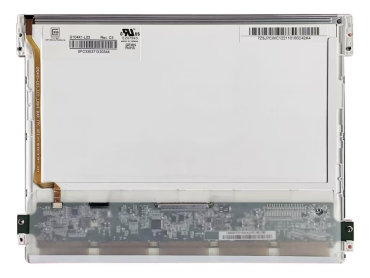

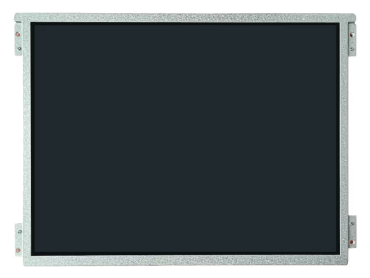

Innolux G104X1-L03 is a 10.4-inch lightweight full-view industrial LCD TFT display module. It adopts an 88° full viewing angle to eliminate visual distortion during multi-person collaborative viewing. Boasting an ultra-light weight of 280g and an ultra-slim thickness of 7.97mm, it is perfectly suited for integration into small-sized devices. With a 1000:1 high contrast ratio and XGA resolution, it ensures clear and sharp data display. Its operating temperature range of -20°C to 70°C covers conventional industrial and commercial scenarios. It is a practical choice that delivers "full-view experience, high cost-effectiveness and easy integration".
Basic Information
Brightness (cd/m2)
350
Contrast Ratio
1000:1 (Transmission)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
Super MVA, Normally Black, Transmissive
Viewing Direction
Full-view
Response Time
14/11(Typ.)(Tr+Td) (ms)
Color Performance
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.7M (6-bit / 6-bit+FRC)
Color Temperature
6485K
Uniformity
1.40 (Max.)(9 points)
1931 Color Gamut
NTSC Ratio
53%
sRGB
73%
Adobe RGB
55%
DCI-P3
REC.2020
39%
REmarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
We offer tailored adjustments for core LCD TFT panel parameters—including size, shape, brightness, interface types, and resolution—to align perfectly with your terminal product’s unique design and functional needs.
2. "One-Stop Shopping" Experience
We don’t just supply LCD TFT panels: we also provide a full suite of matching accessories (LCD driver boards, touchscreen modules, light sensors, and custom adapter cables) as an integrated display solution.
3. Reliable Shipping Transportation
We provide door-to-door delivery with flexible shipping options (air freight, sea freight, express) to match your timeline: • Standard LCD TFT display products: Dispatched within 48 hours to 7 days. • Customized orders: Shipped within 7 to 20 days. We also track shipments in real time and share shipping updates with you until the order arrives safely.
4. After-Sales Service
All LCD TFT panels come with a 12-month official warranty: If your LCD TFT screen has non-human-caused issues (e.g., display glitches, backlight failure) during this period, we offer free replacement or professional repair—no hidden fees. Our after-sales team responds within 2 hours of your request and follows up until the problem is fully resolved.
1. Does this product support free samples?
A: Free samples are not available. Samples must be purchased at the retail price. When purchasing in bulk, we can apply for discounts for you. The sample delivery cycle is 1-2 working days.
2. How long is the cycle for customizing the complementary services (such as touch screen + bonding)? A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 3-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days
3. Is screen parameter customization supported?
A: Customization of interface type, surface treatment, etc. is supported. There is no minimum order quantity requirement for customization needs. Specific details can be discussed with us.
4. What is the after-sales guarantee for this product?
A: Provide 12-month whole machine warranty. Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; after the warranty period, provide lifetime cost-price maintenance services.
5. Is there a price discount for bulk purchases?
A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
