sRGB Color Gamut, White LED Backlight, 50,000+ Hours Lifespan, Integrated LED Driver, Front-Mount Terminals, Matte Surface, TCO 5.1 Certified, Made in China (S03), Thickness: 12.7mm.

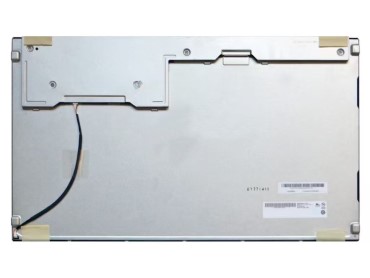

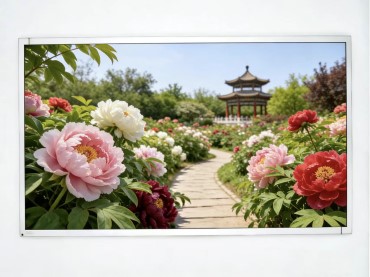

AUO G215HVN01.001 is a 21.5-inch Full HD industrial LCD module that delivers true-to-life color accuracy and deep contrast—making it the ideal successor to AUO G215HVN01.000, now with enhanced color performance and improved reliability. It shares the same parameters: 21.5-inch Full HD resolution, AMVA3 technology, and 5000:1 high contrast ratio that makes blacks truly black and whites brilliantly pure. The most significant upgrade is color performance. While the .000 model delivered 72% NTSC, the .001 achieves 98% sRGB coverage. For your operators and professionals, this means:
♦ Medical images display with more accurate tissue differentiation
♦ Industrial HMI screens show true-to-design warning colors
♦ Graphics and data visualizations appear richer and more precise
The design has also been refined. At 13.2mm thickness, the G215HVN01.001 is actually slimmer than G215HVN01.000, giving you more flexibility in enclosure design. The weight has been reduced to 1.85kg, making integration easier without sacrificing durability.
When you choose AUO G215HVN01.001, you're giving your equipment a visual upgrade that you will notice every single day.
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G215HVN01.001
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
21.5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
495.6×292.2×13.2
Optical Mode
AMVA3,Normally black display, TM
Active Area (WxH mm)
476.64×268.11
Backlight Type
13S5P WLED, 50K hours, with LED driver
Visual Area (WxH mm)
479.84×271.31
Interface
LVDS (2 ch, 8-bit), Connectors,30 pins
Optimal Visual Angle
Full-view
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Resolution
1920 (RGB)×1080, FHD,102PPI
Response Time
20/5 (Typ.) (Tr/Td) ms
Brightness (cd/m²)
300
Display Colors
16.7M, 98% sRGB
Contrast Ratio
5000:1 (Typ.) (TM)
Operating Temperature (°C )
0~ 60
Operating Voltage
5.0V (Typ.)
Storage Temperature (°C )
-20~60
Operating Frequency
60Hz
Weight
1.85±0.19Kgs
Application
Industrial Control
Basic Information
Brightness (cd/m2)
5000:1 (Transmission)
Visual Angle Direction
Color Performance
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M ( 8-bit )
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut
NTSC Ratio
75%
sRGB
98%
Adobe RGB
76%
DCI-P3
77%
REC.2020
56%
REmarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Signal Electrical
Current Input
0.7/0.8A (Typ./Max.)
Voltage Input
Consumption
3.5/4.4W (Typ./Max.)
Signal System
LVDS (2 ch, 8-bit)
Interface Features
Position
back
Connector
Connector Detail
Amount
Pin Pitch
Pins
JAE
FI-XB30SRL-HF11
1pcs
1.0 mm
30 pins
Back-light Features
Lamp Type
WLED
Replacement
-
Edge Light type (bottom)
13S5P
Lamp Shape
5 Strings
Life Time
50K (Min.) hours
---
Interface Details
CENs
MS24049HJ
1 pcs
9 pins
1.25mm
Driver Electrical
with LED Driver
1.36A (Typ.)
12.0±1.2V
16.32/19.95W (Typ./Max.)
Feature
G215HVN01.000
(halt production)
(in production)
Benefit
Color Gamut
72% NTSC
98% sRGB
Richer, more accurate colors for medical and industrial applications
Thickness
17.35mm
13.2mm
Easier integration into slim enclosures
2.30kg
1.85kg
Lighter, easier to handle and mount
10/6ms
20/5ms
Optimized for static image clarity
Operating Temp
0~50°C
0~60°C
Wider operating range for more applications
Production Status
Discontinued
Active
Long-term supply assurance
