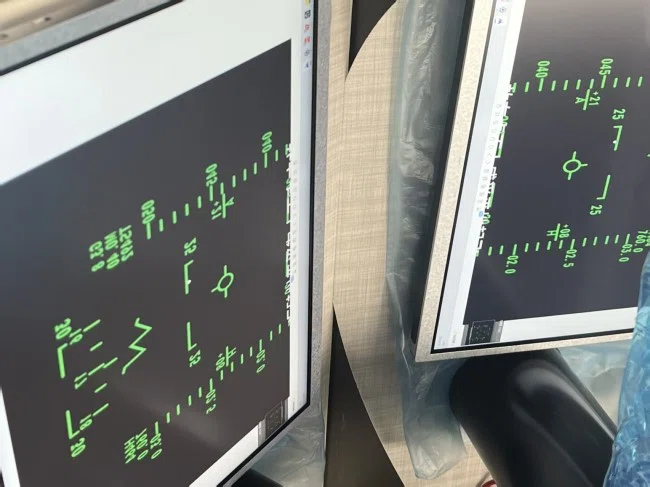

In industrial LCD display projects, Hengxinda often receives a common but critical requirement: mirroring display images. We offer two mature mirror LCD display solutions for this demand. The first method lets customers’ main control systems process mirrored images, with us supplying matching LCD panels and LCD driver boards. The second method uses our LCD driver board with image mirroring function. Both solutions have been widely used in industrial control, medical equipment and embedded display projects, and can be selected and customized according to different project needs.

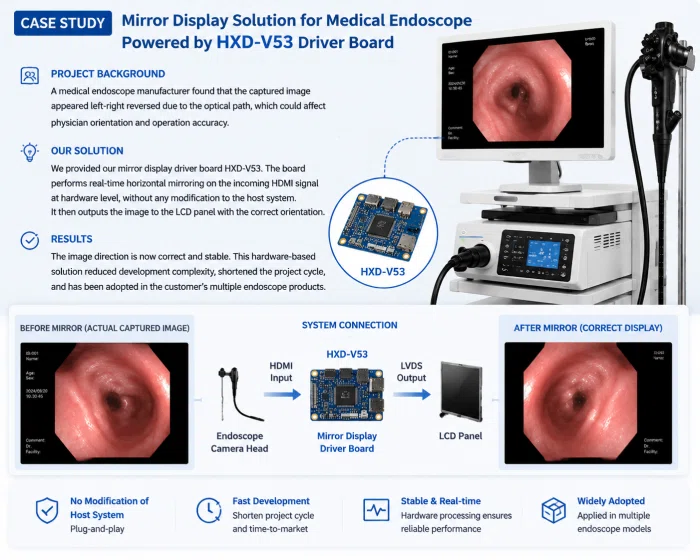

A medical imaging equipment manufacturer developed a new endoscope systems and encountered left-right mirror image distortion caused by optical imaging paths. Its main control system adopted a closed architecture, making software-level adjustments extremely hard. The client wanted a hardware-based fix. We supplied HXD-V53 LCD driver board with image mirror functions to solve the problem. In this project, HXD-V53 receives signals from the endoscope main control system via HDMI ports, processes images inside the driver board, then outputs signals to high-resolution LCD panels. It delivers stable, real-time and zero-latency mirrored display results. The whole machine passed all stability tests, fixed reversed image issues, cut development complexity and accelerated mass production. The client has adopted this solution for multiple follow-up endoscope models.
♦ Display solutions of LCD panels and LCD driver boards: Screen sizes from 3.5-inch to 32-inch, optimized backlight structures, custom signal cables to match equipment installation structures. LCD Driver boards support mainstream industrial input signals including LVDS, eDP, HDMI and RGB, and can be customized to match output formats of different main control systems for seamless cross-platform connection.
♦ Display Solution of LCD panels and touch screens: Supports 4-wire/5-wire resistive touch screens, USB/I2C capacitive touch screens and infrared touch screens. Optical bonding technology is available to combine touch screens and LCD panels.
♦ Custom complete display solution: Supply LCD panels and full supporting components including LCD driver boards, touch screens, backlight driver boards and custom signal cables. One-stop supply of all industrial display hardware to meet assembly and new product adaptation demands.
