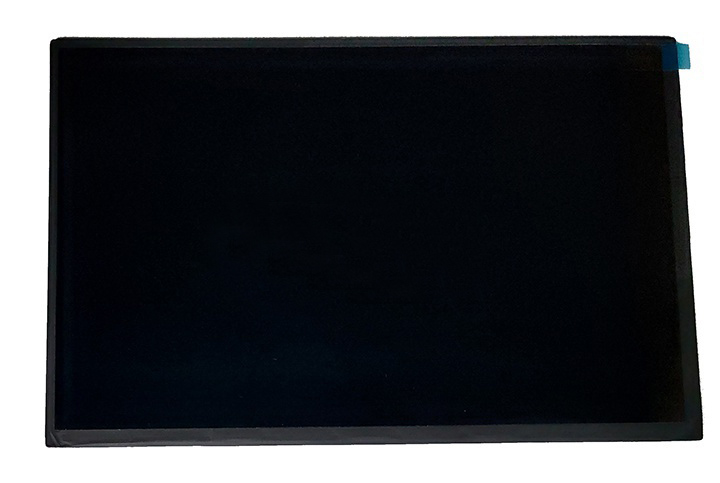

M101NWWB R3

M101NWWB R3

Download PDF Send Message

Basic Parameters

Panel Brand	IVO	panel model	M101NWWB R3
Panel size	10.1 inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	1280(RGB)×800 , WXGA	pixel layout	RGB vertical stripes
display area	216.96(W)×135.6(H) mm	Appearance size	229.46(W)×149.1(H) mm
Brightness(cd/m²)	350 (Typ.)	the contrast	800:1 (Typ.) (transmission)
visual Angle	85/85/85/85 (Typ.) (CR≥10)	surface treatment	Mirror(Haze 0%),Hard coating (3H)
number of colors	16.7M , 45% NTSC	optical mode	IPS, normally black display, transmissive
Panel Weight	160g (Max.)	response time	25 (Typ.) (Tr+Td) ms
best angle	full-view	be the same with	Tablet PCindustry
frame frequency	60Hz	Backlight type	WLED , 25K hours with LED driver
signal interface	LVDS (1 ch, 8-bit) , Terminals, 40 pins	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C
