Notice on EOL of AUO G065VN01 V2 LCD Panel & Replacement Model AUO G065VN01 V221

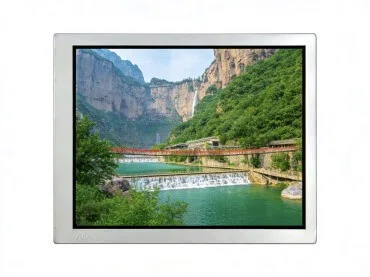

2. Overview of the Upgraded Replacement Model: AUO G065VN01 V221

Key Specifications

♦ Panel type: 6.5-inch a-Si TFT-LCD; Resolution: 640(RGB)×480 (VGA, 4:3); Same pixel arrangement as the old model, no need to revise software drivers

♦ Display performance: Typical brightness 800 cd/m² (same as the old model); Contrast ratio upgraded to 1000:1; Adopts AHVA technology for full viewing angle, viewing angle reaches 89/89/89/89°

♦ Interface & power: 20-pin LVDS connector (1-channel 6/8-bit), fully compatible with the original design; Typical total power consumption reduced to 2.27W for better energy efficiency; Side-lit white LED backlight (with built-in driver, service life ≥ 70,000 hours)

♦ Physical features: Overall dimension 153(W)×118(H)×11.2(D) mm, completely consistent with the old model for direct installation; Matte surface with 3H hard coating and anti-reflection treatment, delivering better visibility outdoors

♦ Application scenarios: It retains the advantages of wide temperature resistance and high brightness. With optimized viewing angle and lower power consumption, it is more ideal for vehicle devices, medical equipment, outdoor industrial terminals and other products that pursue better display effect and longer battery life.

3. Parameter Comparison & Upgrade Advantages

Items	G065VN01 V2	G065VN01 V221	Upgrade Advantages

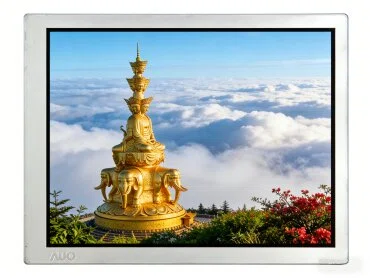

Reference Picture
Screen size	6.5 inches	6.5 inches	100% compatible in size, no need to change molds
Resolution	640×480	640×480	Same resolution, no modification to software drivers
Typical brightness	800 cd/m²	800 cd/m²	Maintains high brightness for steady outdoor visibility
Contrast ratio	600:1	1000:1	About 67% higher contrast, richer picture layers
Viewing angle	80/80/70/70°	89/89/89/89°	Full viewing angle, no color shift from all directions
Display mode	TN, normally white	AHVA, normally black	Normally black mode saves more power and presents better dark images
Backlight service life	≥ 50,000 hours	≥ 70,000 hours	40% longer service life, extends the whole device lifespan
Typical total power consumption	3.86W	2.27W	About 41% lower power use, greatly prolongs battery life
Surface treatment	Mirror	Matte	Matte surface reduces reflection, clearer view under strong outdoor light
Interface	20-pin LVDS connector	20-pin LVDS connector	Fully compatible, no hardware changes required



4. Alternative Solutions & Technical Support

We still have a small quantity of G065VN01 V2 in stock for temporary supply. Nevertheless, we suggest you complete equipment debugging and compatibility tests as soon as possible. We provide the following solutions to meet your different project needs:

♦ Official compatible model: G065VN01 V221 is the official successor with the best compatibility, which is your top choice for replacement.

♦ Customized technical service: Our team offers professional support including driver debugging and backlight matching, to help you complete model replacement smoothly.

Our professional technical team provides one-on-one support for model selection, hardware matching and driver adjustment at all stages, ensuring a seamless upgrade for your projects.
