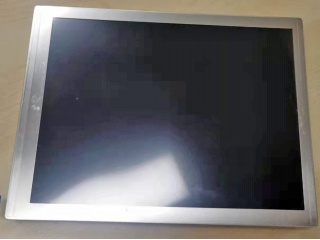

P0650VGF1MA10

P0650VGF1MA10

Download PDF Send Message

Basic Parameters

Panel Brand	TIANMA	panel model	P0650VGF1MA10
Panel size	6.5-inch	panel type	a-SiTFT-LCD, LCD Module
resolution ratio	640(RGB)x480, VGA, 122PPI	pixel layout	RGB vertical stripes
display area	132.48(W)x99.36(H) mm	Appearance size	153(W)x118(H)x11.2(D) mm
open area	135.48(W)x102.36(H) mm	surface treatment	matte
display brightness	800 cd/m² (Typ.)	contrast	900:1(Typ.) (transmission)
recommended angle of view	full-view	response time	25 (Typ.) (Tr+Td) ms
visual Angle	88/88/88/88 (Typ.) (CR≥10)	display mode	SFT, normally black display, transmissive
support color	262K/16.7M , 99% sRGB	light source type	WLED [6S2P],70K hours, with LED driver
weight	161g (Typ.)	application products	Industrial，outdoor vehicle，highlight display
frame frequency	60Hz	touch technology	touchless
interface type	LVDS (1 ch, 6/8-bit) , Terminals
voltage supply	3.3V (Typ.)
application environment	Operating temperature:-30 ° C to 80 ° C; Storage temperature:-40 ° C to 90 ° C; Vibration resistance: 2.0G(19.6m/s²)

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P0650VGF2MA30	6.5"	640×480	1100 nits	800:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0650VGF1MA10	6.5"	640×480	800 nits	900:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0650VGF2MB31	6.5"	640×480	650 nits	800:1	WLED	TTL	31	-30~ 80 ° C
Tianma	P0650VGF2MB30	6.5"	640×480	650 nits	800:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0650VGF1MA00	6.5"	640×480	1200 nits	900:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0650VGF2MA20	6.5"	640×480	900 nits	800:1	WLED	LVDS	20	-20~70 ° C
AUO	G065VN01 V221	6.5"	640×480	800 nits	1000:1	WLED	LVDS	20	-20 ~70 °C
