R140NWF5 R1

R140NWF5 R1

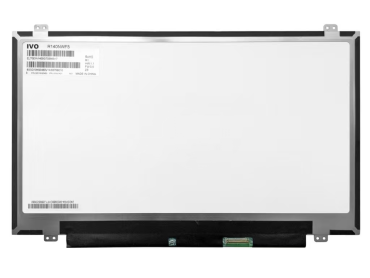

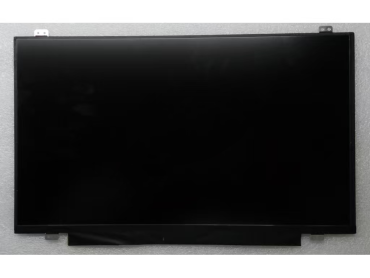

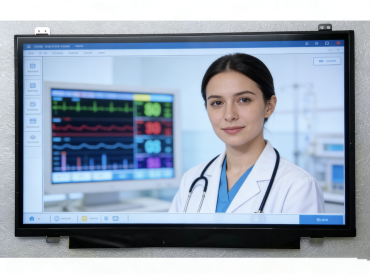

On-cell touch technology, WLED backlighting, with LED driver, matte surface, eDP1.2.

Download PDF Send Message

Product Description

IVO R140NWF5 R1 is a 14.0-inch a-Si TFT-LCD display module. Its most significant advantage lies in the On-cell touch integration technology, which combines the screen of the LCD TFT panel and the touch layer into one. You no longer need to reserve separate space for "screen + touch". This directly saves more structural space for your small terminals, reducing the risk of faults caused by component separation. Combined with full-view IPS display, whether you operate the equipment from the side of the industrial production line or view data from multiple directions in the medical scenario, the picture will not be distorted or blurry. These designs are not just about stacking parameters, but rather practical solutions that make your terminal devices more compact and stable.



Basic Parameters

Panel Brand IVO Panel Model R140NWF5 R1
Panel Size 14.0 inch Panel Type a-Si TFT-LCD, LCD module
Resolution 1920(RGB)x1080, FHD, 157PPI Pixel Layout RGB vertical stripe
Display Area 309.31(W)x173.99(H)mm Appearance Size 320.4(W)x205.1(H)x3.2(D)mm
Aperture Area --- Surface Treatment Matte, Hard coating(3H)
Display Brightness 250 cd/m²(Typ.) Contrast Ratio 800:1(Typ.)(Transmission)
Optimal Viewing Angle Full View Response Time 30(Typ.)(Tr+Td) ms
Viewing Angle 85/85/85/85(Typ.)(CR≥10) Display Mode IPS, Normally Black Display, Transmission Type
Display Colors 262K, 45% NTSC Backlight WLED, 15K hours, with LED driver
Appearance Style Thin Screen (PCBA straight, thickness ≤ 3.2 mm) Application  Laptop
Frame Rate 60Hz Touch Technology On-Cell Touch, USB
Interface Type 40 pins eDP(2 Lanes), eDP1.2, HBR1(2.7G/lane), connector Voltage Supply 3.3V(Typ.)
Environment Temperature Operating temperature: 0~50℃; Storage temperature: -20~60℃

IVO R140NWF5 R1 Mechanical Details

Pixel Features

Pixel Format

1920(RGB)×1080, FHD

Dot Pitch

0.0537×0.1611 mm

Configuration

RGB Vertical Stripe

Pixel Pitch

0.1611×0.1611 mm  [157PPI]

Mechanical Size

Display Area

309.31×173.99 mm

Outline Dimension

320.4×205.1 mm

Visual Dimension

---

Outline Depth

3.0/3.2 (Typ.Max.) mm

Outline Features

Appearance Shape

Flat Rectangle

Orientation

Landscape mode

Aspect Ratio (W:H)

16:9

Shape Style

Thin Screen (PCBA straight, thickness ≤ 3.2 mm)

Touch Screen

Interface Type

Simultaneous contact points

Controller, Signal Type

Touch Technology

Included in LCD TFT Panel Signal Interface

10-point touch

With LED Driver, USB

On-cell Touch

Way to Install

Face mounting holes (4 pcs) on up, down slugs

Other Features

Weight

285g (Max.)

Surface

Matte, Hard Coating (3H)



IVO R140NWF5 R1 Optical Details

Basic Information

Brightness (cd/m2)

250

Contrast Ratio

800:1 (Transmission)

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Optical Mode

IPS, Normally Black, Transmissive

Viewing Direction

Full-view

Response Time

30(Typ.)(Tr+Td) (ms)

Color Performance

Chromaticity

Wx:0.313; Wy:0.329

Color Numbers

262K (6-bit)

Color Temperature

6485K

Uniformity

-

1931 Color Gamut

NTSC Ratio

47%

sRGB

66%

Adobe RGB

49%

DCI-P3

49%

REC.2020

35%

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

IVO R140NWF5 R1 LCD TFT Display Panel Notes

  • Industrial control
    Industrial control

    PLC central control panel, CNC machine operation screen, production line status monitoring terminal, industrial robot trainer etc.. The On-Cell touch control makes the operation more direct and efficient, reducing the operation steps for production line personnel; the full-view IPS display supports multiple people to view the equipment parameters simultaneously, avoiding information deviations caused by viewing angles, and improving the efficiency of production line collaboration.

  • Medical Equipment
    Medical Equipment

    Multi-parameter monitor, ultrasound diagnostic display module, infusion pump control screen, operating terminal for surgical room equipment etc. Full-angle display enables medical staff to view patient data from different angles, avoiding missing critical signs; On-Cell touch operation is precise, reducing the risk of accidental touches on medical equipment, and facilitating a smoother diagnosis and treatment process.

  • Commercial and Bussiness Services
    Commercial and Bussiness Services

    Bank self-service business processing screen, government service terminal, retail checkout system screen, intelligent self-service machine screen On-Cell touch operation is smooth, reducing the waiting time for users' operations; Full-angle display supports multiple people viewing business information simultaneously, improving the service efficiency and user experience in business scenarios.

1. Installation Guide

Please note that this product does not include installation instructions. We hereby declare that we are not responsible for any damage caused by improper installation. Please ensure you have the necessary skills to complete the installation before purchasing. Thank you for your understanding and cooperation.



2. Quality Assurance and Testing

Every LCD tft panel undergoes comprehensive functional testing before shipment to ensure 100% normal operation upon delivery. During testing, old, damaged, cracked, or malfunctioning filters will be repaired or replaced to ensure the product always performs at its best.



3. Post-delivery Precautions

After receiving the product, please do not immediately remove the protective film or apply glue to the back of the LCD tft screen. Please be sure to install the new panel first and test the device's sensitivity. This step effectively confirms product quality and avoids potential damage to the device's motherboard and screen.



4. Safety Guidelines During Testing

Before conducting any testing operation, please make sure to disconnect the power supply of the device to prevent damage to the motherboard and screen due to live operation. If the equipment suffers irreparable damage due to failure to follow this requirement, we are not responsible for it. Please operate carefully and strictly follow the above instructions.

FAQs

1. What are the payment methods available?
A: We support wire transfer, Alipay/WeChat (for small orders), and for bulk orders, a 50% deposit plus the final payment will be required for shipment.


2. How long is the delivery time?
A: For international trade, it can be delivered via Fedex/DHL/sea/air freight, with an average delivery time of 3-30 days (depending on the region and the shipping way that you choose).


3. Can your LCD tft display panel parameters be customized?
A: For bulk orders, resolution and interface customization are supported. Please communicate the parameters and minimum order quantity in advance.


4. How are the after-sales faults handled?
A: After providing the fault certificate, a solution will be provided within 72 hours. Non-human factors-related issues will be free of charge for return, replacement or repair.
