What Is LCD Edge-Lit Light Source?
After we talked about direct-lit light sources for LCD backlight systems last time, today we will explain edge-lit light sources used in LCD panel backlight systems. We will cover basic definitions, complete internal structures, pros & cons comparison, and the latest industry development trends to help you fully understand edge-lit backlight and complete accurate model selection quickly.
1. What Is LCD Edge-Lit Light Source?
LCD panels cannot emit light on their own. An independent backlight unit is required to supply light for normal image display. Based on different LED bead layout methods, LCD backlights are divided into two mainstream types: edge-lit backlight and direct-lit backlight.
Definition of LCD Edge-Lit Light Source
LED light bars are arranged on the top, bottom, left or right edges of the backlight module. The light passes through light guide plates, optical films and other structures to be converted into uniform surface light across the entire screen, providing stable backlight for LCD panels.
Edge-lit light source is the most mainstream backlight solution for ultra-thin LCD panels at present. It thoroughly solves the industry pain points of excessive thickness of traditional CCFL cold cathode backlights and early direct-lit backlights that limit slim device design, and is widely used in consumer electronics and industrial display fields.
2. Six Core Components of LCD Edge-Lit Backlight
A complete edge-lit backlight module consists of the following indispensable core parts.
2.1 LED Light Bar
In side-lit backlighting, the light source consists of an LED strip with LEDs arranged in a neat row, placed on one side (usually the bottom) of the screen, along both sides, or around all four edges.
2.2 Light Guide Plate (LGP)
The core component of edge-lit backlight. Made of high-transmittance acrylic or PC material, it converts point light incident from the side into uniform surface light.
2.3 Reflective Sheet
Attached to the bottom of the light guide plate, it recycles light leaking downward and reflects it back to the light-emitting surface of the screen to reduce light loss.
2.4 Diffuser Film
Placed above the light guide plate, it eliminates light spots and strip shadows generated by LED beads, softens outgoing light and delivers even illumination across the screen.
2.5 Prism Sheet (Brightness Enhancement Film)
It converges scattered light to shoot vertically toward human eyes. Without increasing LED power consumption or bead quantity, it improves front screen brightness and achieves both energy saving and high brightness.
3. Advantages & Disadvantages of LCD Edge-Lit Light Source
| Category | Detailed Content |
| Core Advantages | 1. Ultra-slim module thickness: No large LED array behind the panel greatly reduces backlight thickness, making it the only preferred backlight solution for ultra-thin display devices. 2. Low cost & low power consumption: Fewer LED beads and simpler circuit structure cut material cost and overall power consumption compared with direct-lit backlight. 3. Stable uniform brightness: Mature light guide plate technology delivers consistent illumination without obvious light/dark zones under standard brightness modes. 4. Lower heat generation: Fewer luminous components produce less heat, slowing LCD panel aging and extending overall service life. |
| Inherent Drawbacks | 1. Poor local dimming performance, unable to realize high-precision independent brightness adjustment for segmented areas. 2. Average HDR contrast performance. 3. Light leakage and bright borders easily occur around screen bezels under high-brightness working modes. |
4. Four Major Development Trends of LCD Edge-Lit Backlight in 2026
Many people mistakenly believe edge-lit backlight is outdated. However, global display industry R&D data shows edge-lit light sources keep continuous upgrading and optimization:

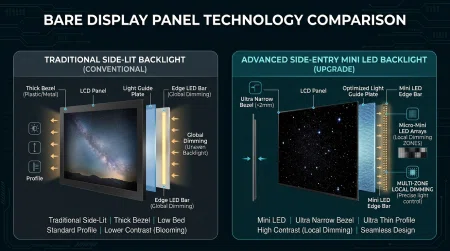

4.1 Hybrid Upgrade: Edge-Lit + Mini LED Backlight
Traditional side-mounted LED beads are replaced with Mini LED micro-beads, adding segmented local dimming function. It retains the ultra-thin advantage of edge-lit structure while compensating its weak segmented dimming defect, and has been widely adopted in mid-to-high-end ultra-thin monitors.
4.2 Ultra-Narrow Bezel & Borderless Backlight Optimization
Optimize the optical structure at the edge of light guide plates to restrain side light leakage and narrow screen bezels, matching market demand for full-screen industrial displays and borderless commercial screens.
5. FAQ
Q1: Which is better, edge-lit backlight or direct-lit backlight?
A: There is no absolute better option. Choose edge-lit backlight if you pursue ultra-slim body, low cost and low power consumption; choose direct-lit backlight for high contrast, ultra-high brightness and precise segmented dimming.
Q2: Does edge-lit backlight have a shorter service life?
A: No. The luminance half-life of edge-lit backlight can reach more than 50,000 hours, fully meeting the 7×24-hour continuous operation requirements of industrial equipment.
Q3: Does edge-lit LCD backlight support PWM dimming?
A: Yes. Current mainstream edge-lit backlight modules come standard with PWM pulse dimming function, perfectly matching the power-up timing and power supply logic of mainstream driver boards.
Summary
LCD edge-lit light source is an extremely mature, cost-effective and highly adaptable backlight solution for the display industry. Even as direct-lit Mini LED backlight gains huge popularity, edge-lit backlight still occupies a dominant market share relying on three core strengths: ultra-slim structure, low power consumption and low cost. With the iteration of Mini LED optical technology, edge-lit backlight will make up for its functional shortcomings and maintain long-term mass production in the ultra-thin display track.
