Size: 19 inch
Available Brightness: 800~2000 nits
Available Resolution: 1280x1024, etc. (customizable)
Available Accessories: Touch Screen, Driver Board, OSD Rotary Knob Cable, OSD Key Board, Light Sensor Cable , Custom Cables, etc.
Brand
Model
Size
Resolution
Brightness
（nits)
Contrast Ratio
Backlight Type
Interface
Pins
Operation Temperature
AUO
G190ETN01.8
19"
1280x1024
800
1000:1
WLED
LVDS
30
-30~70℃
G190ETN02.0
1000
800:1
-20~60℃
G190EAN01.6
Sharp
LQ190E1LX78
1200
1500:1
G190EAN01.2
1300
G190EAN01.1
9S6P WLED
G190ETN01.600
1600
G190ETN01.601

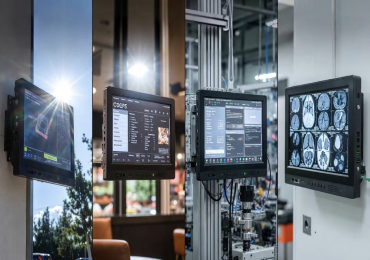

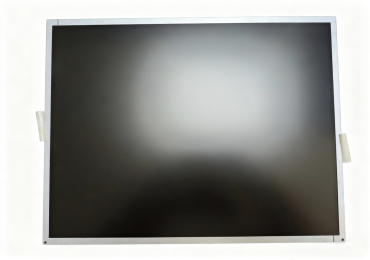

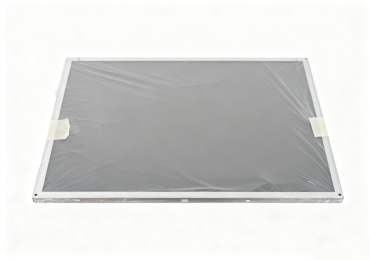

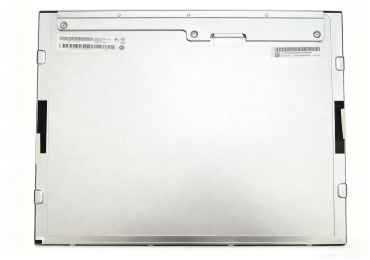

The 19-inch high-brightness LCD TFT display (800-2000 nits) is engineered for high-glare environments, finding widespread use in outdoor digital signage, window advertising displays, restaurant floor-to-ceiling window presentations, factory production line equipment monitoring, medical imaging diagnostics (CT/MRI), marine and vehicle displays, military applications, and high-glare laboratories. Whether under direct sunlight, intense factory lighting, or demanding grayscale displays, it ensures clear visibility, true-to-life colors, and long-term stable operation. It stands as the premier solution for any setting where visibility is paramount in complex lighting conditions.
Accessory Name
Accessory Picture
Accessory Description

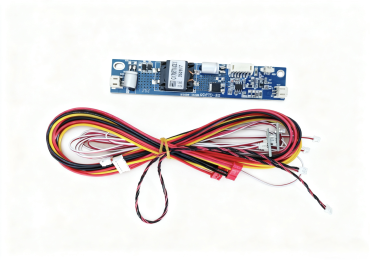

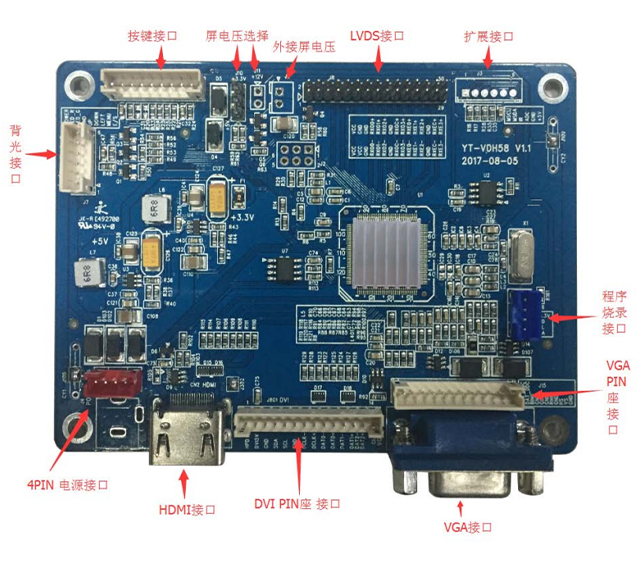

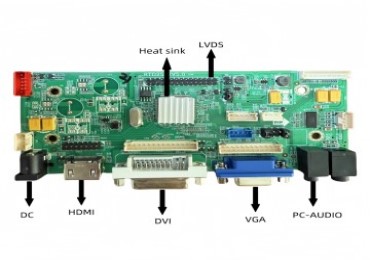

This AD board serves as the core control hub for the high-brightness LCD screens. It can convert HDMI/VGA/LVDS signals into the TTL/eDP signals required by the screen and drive the backlight brightness to over 800 nits. It typically supports operation within a wide temperature range (-30°C to 80°C), and integrates a constant current LED boost circuit to ensure stable brightness even in strong outdoor sunlight.
(1) 19-inch G+G capacitive touchscreen supports 10-point precise operation and usually has AG/AF/AR anti-glare and anti-fingerprint coatings. (2) 19-inch G+P/P resistive touchscreen supports single-point precise touch and has anti-abrasion and anti-interference capabilities. Outdoor models usually adopt optical bonding technology to eliminate air gaps, thereby significantly improving the light transmittance and contrast.

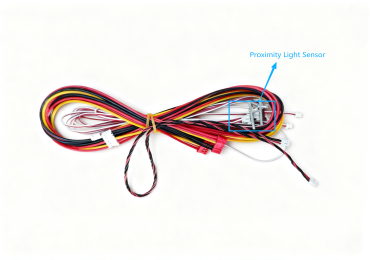

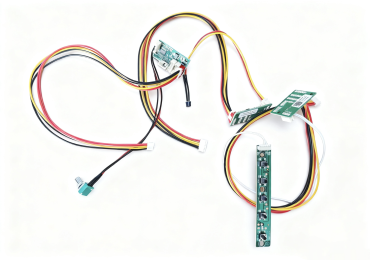

This cable is connected to the ambient light sensor, which continuously monitors the intensity of external light and transmits the signal to the driver board, thereby enabling the automatic dimming function.

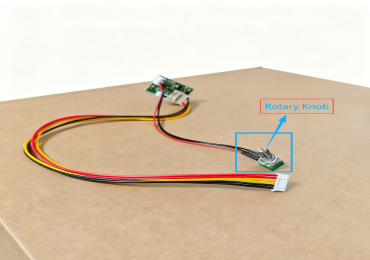

The dimming cable with 5 to 10 rotary knobs enables manual adjustment of brightness, contrast ratio, volume and other settings. Outdoor equipment usually has knobs or waterproof buttons on the exterior of the casing to allow for quick adjustment to the optimal visible brightness on-site.

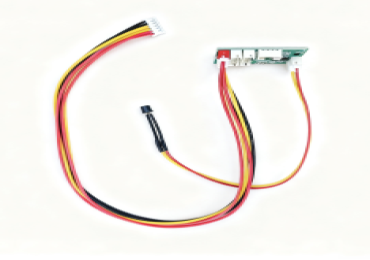

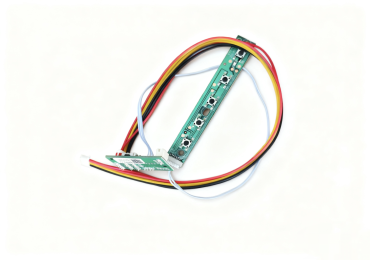

Dimming cables paired with 5-10 key small keypads enable manual adjustment of brightness, contrast, volume, and other settings. Outdoor equipment often positions knobs or waterproof buttons externally on the housing for quick on-site adjustment to optimal visibility brightness.
The photosensitive cable connects to the ambient light sensor, continuously monitoring external light intensity and transmitting signals to the driver board to enable automatic dimming.
1.What is the maximum brightness achievable for your 19-inch high-brightness TFT LCD display?
A: Our standard inventory includes multiple brightness options: 800 nits, 1000 nits, 1300 nits, and 1600 nits. We can also customize brightness to your specific requirements. Each batch maintains measured brightness within ±10% tolerance, with uniformity exceeding 85% at full brightness. Select the appropriate brightness level based on your usage environment (semi-outdoor, direct sunlight, bright factory settings, etc.).
2.Is 1600 nits sufficient under direct outdoor sunlight?
A: Absolutely! 1600 nits is fully adequate for most semi-outdoor or partially shaded sunlight environments (e.g., bus stops, side panels of outdoor advertising displays, areas under factory skylights). For higher brightness requirements, contact our sales manager to customize a high-brightness LCD screen tailored to your needs!
3.Does high brightness consume significantly more power?
A: Yes, increased brightness inevitably leads to higher power consumption and heat generation. We exclusively use original factory Grade A industrial-grade panels paired with LED backlight systems specifically engineered for high brightness. With an MTBF ≥ 50,000 hours, these panels support 24/7 operation in environments below 50°C. Actual customer usage over three years shows no noticeable brightness degradation.
4.Does it support wide temperature operation?
A: The entire series features standard wide-temperature design, operating from -20°C to +70°C. Select models above 1500 nits can achieve -30°C to +80°C (requires custom high/low-temperature backlighting).
5.Is optical bonding available?
A: Optional optical bondingis supported. Post-bonding, AG/AR anti-glare/anti-reflective glass can be applied, reducing reflectivity below 1%. Under direct sunlight, reflections become nearly invisible, delivering a display effect resembling paper texture. Many outdoor terminal customers opt for this configuration.
6.What is the warranty period?
A: The entire screen is covered by a 12-month free warranty (industry standard is 6 months). If a faulty screen is shipped back and our inspection confirms no human damage (e.g., impact, drops, water exposure, heavy pressure), we will ship a new screen free of charge, covering the shipping costs. Our long-term return rate for existing clients consistently remains below 0.8%.

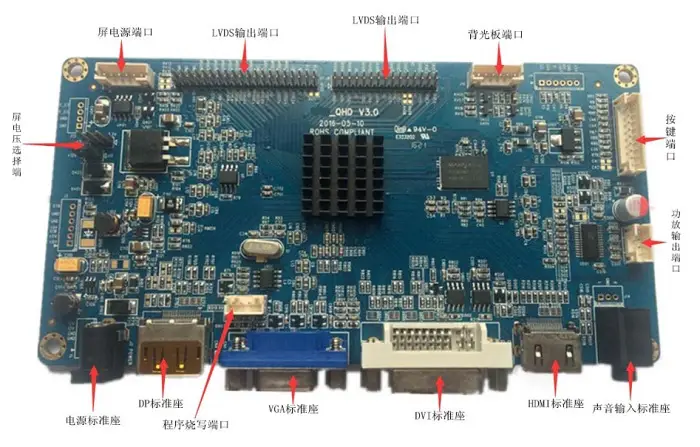

HXD-QHD LCD panel driver board is designed for 2K TFT LCD display panels and supports multiple resolutions up to 2560x1600, 2560x1440, 260x1080, 2560x2048. HXD-QHD LCD control board provides flexible signal conversion from VGA, DVI, HDMI and Displayport interface to LVDS output. HXD-QHD supports flip, rotate display. Frame convert and gray display are also available options. Equipped with high-performance HD signal processing chip, this LCD control board supports diverse standard and non-standard signal formats. Premium components are adopted to ensure outstanding operating stability.
Product Manager:Mark Si
HXD-V53 LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI, YPBPR and CVBS signal inputs, as well as LVDS and CVBS signal outputs. Supports 1080P full HD multimedia decoding. Optional 2×6W amplifier, or audio transmission via adjustable FM radio for vehicle radio reception. Media intercutting available during playback. True-color image/video boot screen, vertical flip, multi-language OSD and IR remote control supported. HXD-V53 LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.

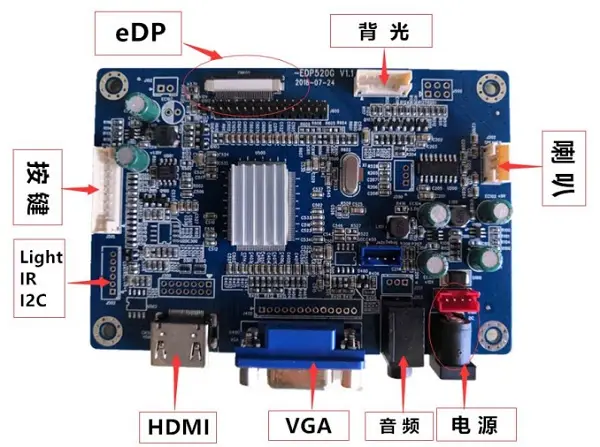

HXD-EDP520G LCD display driver board is equipped with 1 VGA, 1 HDMI input and dedicated eDP output. HXD-EDP520G LCD control board is equipped with auto ambient light sensing function and physical knob backlight dimming. It supports multi-language OSD menus, complies with DICOM luminance control standards, and features Gamma adjustment with seven factory pre-set Gamma curves. This screen motherboard also supports IR remote control for easy debugging, matching mainstream eDP LCD display panels.
HXD-HP98 LCD panel driver board is a eDP controller board that supports HDMI, DP signal input, and V-By-ONE, eDP signal output. The LCD control board supports -20℃~+60℃ wide temperature operation, supporting resolutions up to 4K. HXD-HP98 LCD motherboard features a built-in VBY1 interface, supports 4K eDP signal output, supports eDP LCD display panels in both HBR and HBR2 formats. HXD-HP98 LCD driver board incorporates four composite digital interfaces, supporting HDMI and DP interfaces, USB upgrade function is available. The main board adopts MTK signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.
