♦ Size: 7 inch
♦ Available Brightness: 700~2000 nits
♦ Available Resolution: 800x480/720x1280/1200x1920, etc. (customizable)
♦ Available Accessories: Touch Screen, LCD Control Board, OSD Rotary Knob Cable, OSD Key Board, Light Sensor Cable, Custom Cables, etc.

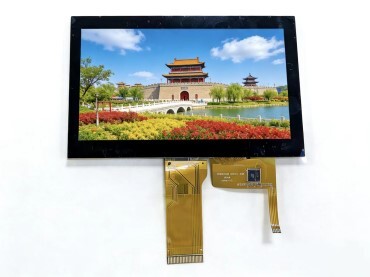

Our collection of 7-inch high brightness LCD displays offers a wide range of options with brightness levels from 700 nits to 2000 nits, perfect for industrial, outdoor, and sunlight readable applications. These high brightness TFT LCD modules are ideal for applications requiring clear visibility in bright environments such as kiosks, HMI (Human Machine Interface), outdoor displays, and rugged monitors. Whether you are looking for sunlight readable industrial displays, outdoor high brightness displays, or high brightness HMI panels, we have a solution for every need. There is a table listing of our 7-inch high-brightness LCD panels for your selection and reference.
Table 1---7 inch Outdoor High Brightness TFT LCD Display
| Brand | Model | Size | Resolution | Brightness | Contrast Ratio | Backlight | Interface | Pins | Operating Temperature |
| Kyocera | TCG070WVLDEDNN-AN30 | 7 inch | 800×480 | 700 nits | 1000:1 | WLED | LVDS | 30 | -20~70℃ |
| Kyocera | TCG070WVLPEANN-AN50 | 7 inch | 800×480 | 700 nits | 1000:1 | WLED | LVDS | 30 | -20~70℃ |
| Kyocera | TCG070WVLPAANN-AN50-EA | 7 inch | 800×480 | 700 nits | 1000:1 | WLED | Parallel RGB | 40 | -20~70℃ |
| Kyocera | TCG070WVLPAANN-AN50 | 7 inch | 800×480 | 700 nits | 1000:1 | WLED | Parallel RGB | 40 | - |
| Kyocera | TCG070WVLPEANN-AN30 | 7 inch | 800×480 | 700 nits | 1000:1 | WLED | LVDS | 30 | -20~70℃ |
| Kyocera | TCG070WVLPAANN-AN50-SA | 7 inch | 800×480 | 700 nits | 1000:1 | WLED | Parallel RGB | 40 | -20~70℃ |
| Kyocera | TCG070WVLEGEFD-AA40 | 7 inch | 800×480 | 800 nits | 750:1 | WLED | LVDS | 30 | -20~70℃ |
| Kyocera | TCG070WVLPAANN-AN50-S | 7 inch | 800×480 | 900 nits | 1000:1 | WLED | Parallel RGB | 40 | -20~70℃ |
| Tianma | 7 inch | 800×480 | 1000 nits | 1000:1 | WLED | TTL | 50 | -30~85℃ | |
| Tianma | P0700WVF1MA10 | 7 inch | 800×480 | 1000 nits | 1000:1 | WLED | LVDS | 20 | -30~80℃ |
| Innolux | 7 inch | 800×480 | 1000 nits | 800:1 | WLED | LVDS | 30 | -30~80℃ | |
| IVO | M070AWPA R1 | 7 inch | 800×480 | 1000 nits | 1000:1 | WLED | LVDS | 40 | -30~85℃ |
| IVO | M070AWAD R0 | 7 inch | 720×1280 | 1000 nits | 800:1 | WLED | LVDS | 40 | -30~85℃ |
| IVO | 7 inch | 800×480 | 1000 nits | 1000:1 | WLED | Parallel RGB | 50 | -30~85℃ | |
| Kyocera | T-55785GD070J-LW-AHN | 7 inch | 800×480 | 1000 nits | 750:1 | WLED | LVDS | 30 | -30~80℃ |
| Kyocera | TCG070WVLEGENN-AN40 | 7 inch | 800×480 | 1000 nits | 750:1 | WLED | LVDS | 30 | -30~80℃ |
| Kyocera | TCG070WVLEGENN-AN41 | 7 inch | 800×480 | 1000 nits | 750:1 | WLED | LVDS | 30 | -30~80℃ |
| Kyocera | TCG070WVLQGPNN-AN41 | 7 inch | 800×480 | 1000 nits | 750:1 | WLED | LVDS | 30 | -30~80℃ |
| Kyocera | TCG070WVLQGPNN-AN40 | 7 inch | 800×480 | 1000 nits | 750:1 | WLED | LVDS | 30 | -30~80℃ |
| AUO | C070VAN02.4 | 7 inch | 800×480 | 1000 nits | 1000:1 | WLED | Parallel RGB | 50 | -30 ~ 85 °C |
| AUO | C070VAN02.0 | 7 inch | 800×480 | 1000 nits | 1000:1 | WLED | Parallel RGB | 50 | -30 ~ 85 °C |
| AUO | C070VAN02.9 | 7 inch | 800×480 | 1000 nits | 1000:1 | WLED | Parallel RGB | 50 | -30 ~ 85 °C |
| AUO | C070VAN07.1 | 7 inch | 800×480 | 1250 nits | 1200:1 | WLED | LVDS | 30 | -40 ~ 85 °C |
| AUO | A070VTN06.1 | 7 inch | 800×480 | 1250 nits | 500:1 | WLED | TTL | 51 | -20 ~ 70 °C |
| Tianma | TM070RDHG23-40 | 7 inch | 800×480 | 1400 nits | 1000:1 | WLED | TTL | 50 | -20~70℃ |
| Tianma | 7 inch | 800×480 | 1500 nits | 1000:1 | WLED | LVDS | 20 | -30~80℃ | |
| AUO | G070VTN02.0 | 7 inch | 800×480 | 1500 nits | 600:1 | WLED | TTL | 50 | -40 ~ 95 °C |
| Innolux | ZK070VA-01B | 7 inch | 1200×1920 | 1680 nits | 40000:1 | Mini LED | MIPI | 30 | -20~70℃ |
| Innolux | 7 inch | 1200×1920 | 2000 nits | 40000:1 | Mini LED | MIPI | 51 | -20~50℃ | |
| Innolux | GK070VA-01B | 7 inch | 1200×1920 | 2000 nits | 40000:1 | Mini LED | MIPI | - | -20~70℃ |
Outdoor Advertising: Perfect for digital signage and advertising in direct sunlight. Industrial Control Panels: Used in control systems where high brightness is crucial for clear visibility. HMI (Human Machine Interface): These displays are essential in providing clear interaction points for machinery and equipment. Medical Equipment: Used in diagnostic and monitoring systems that need high visibility in various lighting conditions. Rugged Outdoor Displays: Ideal for kiosks, ticketing systems, smart vending machine, and POS displays in outdoor environments.
|
Accessory Name
|
Accessory Picture
|
Accessory Description
| ||
| LCD AD Board ( LCD Controll/Driver Board) |  | The AD board is the control center of our high-brightness LCD displays—it takes common signals like HDMI, VGA, or LVDS and converts them into the TTL/eDP signals. | ||
| LCD Touch Screen |  |
(1) 7-inch capacitive touch screen .
| ||
| Ambient Light Sensor Cable With Constant Power Supply |  |  |
This cable is connected to the ambient light sensor, which continuously monitors the intensity of external light and transmits the signal to the driver board.
| |
| Dimming Cable Without Constant Power Supply  | OSD Rotary Knob Cable |  |
The dimming cable with 5 to 10 rotary knobs enables manual adjustment of brightness, contrast ratio, volume and other settings.
| |
| OSD Key Board Cable |  |
For outdoor equipment, knobs are usually placed on the outside of the case—so you can quickly change the brightness. | ||
| Ambient Light Sensor Cable |  |
| ||
If you need a sunlight readable display for outdoor high brightness applications or a rugged high brightness monitor for industrial use, our collection of 7-inch high brightness TFT LCD panels offers the best solutions. Contact us now for datasheets, pricing, and samples, and start integrating the best displays into your systems!
Q1: What does "sunlight readable" mean?
A: "Sunlight readable" refers to LCD displays that are designed to maintain clarity and visibility even under direct sunlight. Typically, LCD displays with 700 nits or higher brightness are considered sunlight readable.
Q2: How do I select the best brightness level for my application?
A: The brightness level you need depends on the environment. For outdoor applications, opt for LCD displays with 1000 nits or more, while indoor applications may require 300-700 nits.
Q3: Can I use these TFT LCD displays in high-temperature environments?
A: Yes, many of our high brightness LCD modules are designed for use in extreme temperature conditions, ranging from -30℃ to 85℃.
Q4: What is the difference between Mini LED and WLED backlighting?
A: Mini LED provides higher brightness and better contrast, making it ideal for outdoor displays and high-dynamic-range applications. WLED is more commonly used in standard applications with lower brightness requirements.
Q5: Do you provide these sunlight readable industrial LCD display panels with a touch screen?
A: Yes, we can provide matching touch solutions. Common options for 7" industrial panels include:
Capacitive Touch Screen : Multi-touch, good optical clarity, ideal for modern HMIs and kiosks.
Resistive Touch Screen: Works with gloved hands, stylus, and is more resistant to water or dust. Suitable for harsh industrial environments.
Q6: What is the warranty period for these high brightness TFT LCD panels?
A: We offer a standard 12-month warranty against manufacturing defects (non-human damage), providing free repair or replacement services.
Q7: What is the minimum order quantity (MOQ) for these 7-inch LCD displays?
A: The MOQ varies by model. We strongly encourage sample testing before mass production. However, samples require paid testing. If the samples pass the test successfully, we are willing to apply for a discount for your bulk purchases.
Q8: I am replacing a failed screen in existing equipment. Can you help me find a compatible match?
A: Absolutely. We specialize in drop-in replacements and obsolete parts cross-referencing. Please provide us with your original model number, and we can help identify a compatible alternative or a suitable replacement panel.
Size: 21.5 inch
Available Brightness: 800~2000 nits (customizable)
Available Resolution: 1920×1080/2560×1024/3840×2160, etc. (customizable)
Available Accessories: Touch Screen, Driver Board, OSD Rotary Knob Cable, OSD Key Board, Light Sensor Cable , Custom Cables, etc.
Size: 19 inch
Available Brightness: 800~2000 nits
Available Resolution: 1280x1024, etc. (customizable)
Available Accessories: Touch Screen, Driver Board, OSD Rotary Knob Cable, OSD Key Board, Light Sensor Cable , Custom Cables, etc.
Size: 15 inch
Available Brightness: 800~2000 nits
Available Resolution: 1024x768, etc. (customizable)
Available Accessories: Touch Screen, Driver Board, OSD Rotary Knob Cable, OSD Key Board, Light Sensor Cable , Custom Cables, etc.
Size: 10.4 inch
Available Brightness: 800~2000 nits
Available Resolution: 640x480/800x600/1024x768, etc. (customizable)
Available Accessories: Touch Screen, Driver Board, OSD Rotary Knob Cable, OSD Key Board, Light Sensor Cable , Custom Cables, etc.
Size: 10.1 inch
Available Brightness: 800~2000 nits
Available Resolutions: 1024x600 / 1280x800 / 1920x1080 / 1920x1200, etc.
Available Accessories: Touch Screen, Driver Board, Rotary Knob Cable, Keypad Flex Cable, Ambient Light Sensor Cable, Custom Cables, etc.
Application Scenarios: Industrial Control/ Vehicle Display/ Smart Vending Machine/ Outdoor Use/Medical Devices etc.
