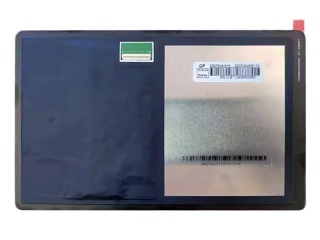

| Panel Brand | Innolux | panel model | ZD070VA-01A |
| Panel size | 7.0-inch | panel type | LTPS TFT-LCD, LCD module |
| resolution ratio | 1200(RGB)x1920, WUXGA, 322PPI | pixel layout | RGB vertical stripes |
| display area | 94.5(W)x151.2(H) mm | Appearance size | 107.5(W)x174.2(H)x5.63(D) mm |
| visible size | surface treatment | Anti-fingerprint (AF),Hard coating(7H) | |
| Brightness (cd/m²) | 2000 (Typ.) | contrast | 40000:1(Min.) [Transmission] |
| best angle | full-view | optical mode | AAS, normally black display, transmissive |
| visual Angle | 80/80/80/80 (Typ.) (CR≥10) | response speed | TBD ms |
| number of colors | 16.7M,90% NTSC | Backlight type | Mini LED,15K hours, no driver |
| Screen Weight | 124g (Max.) | be the same with | industrial outdoor Brightness |
| refresh rate | 60Hz | touch function | In-Cell Touch, I²C |
| signaling system | MIPI (4 data lanes), Terminals, 51 pins | ||
| supply voltage | 6.0/6.6/6.85V (Min./ Typ./ Max.) | ||
| maximum rated | Storage temperature: -20~60 °C Working temperature: -20~50 °C | ||
| Brand | Model Name | Size | Resolution | Brightness | Contrast Ratio | Backlight Type | Interface | pins | Operation Temperature | Download PDF | Add Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tianma | P0700WVN1ME01 | 7" | 800×480 | 300 nits | 800:1 | WLED | Parallel RGB | 50 | -20~70 ° C | ||
| Tianma | P0700WVF1MA10 | 7" | 800×480 | 1000 nits | 1000:1 | WLED | LVDS | 20 | -30~80 ° C | ||
| Tianma | P0700WVF1MA00 | 7" | 800×480 | 1500 nits | 1000:1 | WLED | LVDS | 20 | -30~80 °C | ||
| Tianma | P0700WXF1ME00 | 7" | 1280×800 | 400 nits | 1000:1 | WLED | LVDS | 40 | -20~70 ° C | ||
| Tianma | P0700WSF2MB00 | 7" | 1024×600 | 500 nits | 900:1 | WLED | LVDS | 40 | -20~70 ° C | ||
| Tianma | P0700WVN1MA00 | 7" | 800×480 | 1000 nits | 1000:1 | WLED | TTL | 50 | -30~85 ° C | ||
| Innolux | ZD070VA-01A | 7" | 1200×1920 | 2000 nits | 40000:1 | Mini LED | MIPI | 51 | -20~50 °C | ||
| Innolux | ZD070VA-01B | 7" | 1200×1920 | 500 nits | 40000:1 | Mini LED | MIPI | 51 | -20~50 ° C | ||
| Innolux | G070ACE-LH1 | 7" | 800×480 | 1000 nits | 800:1 | WLED | LVDS | 30 | -30~80 ° C | ||
| Innolux | G070ACE-L01 | 7" | 800×480 | 500 nits | 800:1 | WLED | LVDS | 30 | -30~85 ° C | ||
| Innolux | G070ACE-LH3 | 7" | 800×480 | 500 nits | 800:1 | WLED | LVDS | 30 | -30~85 °C | ||
| Innolux | G070ACE-LH2 | 7" | 800×480 | 500 nits | 800:1 | WLED | LVDS | 30 | -30~85℃ | ||
| AUO | G070VAN01.1 | 7" | 800×480 | 200 nits | 1300:1 | WLED | LVDS | 30 | -20 ~70 °C | ||
| AUO | G070VTN01.0 | 7" | 800×480 | 300 nits | 500:1 | WLED | LVDS | 20 | -20 ~70 °C |
