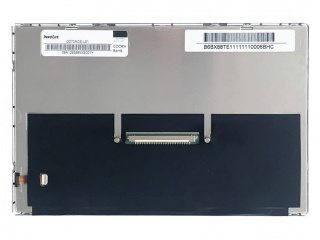

G070ACE-L01

Panel Brand	Innolux	panel model	G070ACE-L01
Panel size	7.0-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	800(RGB)x480, WVGA, 133PPI	pixel layout	RGB vertical stripes
display area	152.4(W)x91.44(H) mm	Appearance size	170(W)x110(H)x8.85(D) mm
Opening size	154.4(W)x93.44(H) mm	surface treatment	Hard coating (3H)
panel brightness	500 cd/m² (Typ.)	contrast	800:1 (Typ.) (TM)
visual Angle	89/89/89/89 (Typ.) (CR≥10)	work pattern	AAS, normally black display, transmissive
viewing direction	full-view	reaction time	13/12 (Typ.) (Tr/Td)
display color	262K/16.7M , 70% NTSC	light source type	WLED,50K hours with LED driver
working frequency	60Hz	touch screen	touchless
Panel Weight	183±9g	panel application	industrial engineering
signal interface	LVDS(1 ch, 6/8-bit), 30 pins, terminals
driving voltage	3.3V (Typ.)
work environment	Working temperature: -30 °C to 85 ° C; Storage temperature: -40 °C to 90 ° C
