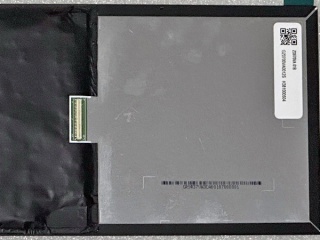

ZD070VA-01B

Panel Brand	Innolux	panel model	ZD070VA-01B
Panel size	7.0-inch	panel type	LTPS TFT-LCD, LCD module
resolution ratio	1200(RGB)x1920, WUXGA, 322PPI	pixel layout	RGB vertical stripes
display area	94.5(W)x151.2(H) mm	Appearance size	107.5(W)x174.2(H)x4.43(D) mm
visible size		surface treatment	Anti-fingerprint (AF),Hard coating(7H)
Brightness (cd/m²)	500 (Typ.)	contrast	40000:1(Min.) [Transmission]
best angle	full-view	optical mode	AAS, normally black display, transmissive
visual Angle	80/80/80/80 (Typ.) (CR≥10)	response speed	TBD ms
number of colors	16.7M,90% NTSC	Backlight type	Mini LED,15K hours, no driver
Screen Weight	TBD	be the same with	industrial engineering
refresh rate	60Hz	touch function	In-Cell Touch, I²C
signaling system	MIPI(4 data lanes), Terminals, 51 pins
supply voltage	5.0V (Typ.) (With Backlight)
maximum rated	Storage temperature: -20 ° C ~ 60 ° C;Operating temperature: -20 ° C ~ 50 ° C
