sRGB, wide temperature range, white LED backlight, lifespan greater than 50,000 hours, 6/8-bit grayscale optional, matte surface.

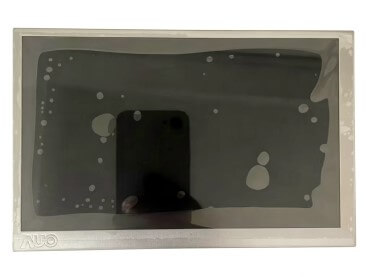

AUO G070VAN01.0 is a 7-inch industrial TFT LCD display module that adopts a-Si TFT-LCD technology. It is equipped with WLED backlight, but without LED backlight driver and touch function. AUO G070VAN01.0 adopts an LVDS (1 ch, 6/8-bit) signal interface with a total of 30 pins, connected by connectors, and the driving voltage for the LCD panel is 3.3V (Typ.). It is specially designed for industrial devices (CNC Machine Panels, Injection Molding Machines Control Panel, and Data Teminals Panel), and medical imaging (Mobile Nursing Terminal, Portable Monitor Display and Infusion Control Panel). The basic parameters of AUO G070VAN01.0 is in the following table.
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G070VAN01.0
Surface Finish
Matte
Size (inch)
7.0
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
166.6(W)×107(H)×10(D) mm
Optical Mode
AHVA,Normally Black Display, TM
Active Area (WxH mm)
152.4(W)×91.44(H) mm
Backlight Type
7S2P WLED, 50K hours, without LED driver
Visual Area
154.2(W)×93.24(H) mm
Interface
LVDS (1 ch, 6/8-bit), Connector, 30 pins
Optimal Visual Angle
Full-view
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Resolution
800×480(RGB), WVGA, 133PPI
Response Time
11/19 (Max.)(Tr/Td) ms
Brightness (cd/m²)
480
Display Colors
262K/16.7M, 70% NTSC
Contrast Ratio
1300 : 1 (Typ.) (TM)
Operating Temperature (°C )
-30~80
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-30 ~ 80
Operating Frequency
60Hz
Weight
175±10%g
Application
Industrial Control
Touch Function
No
Basic Information
Brightness (cd/m2)
1300:1 (Transmission)
AHVA,Normally black display, TM
Visual Angle Direction
11/19 (Max.)(Tr/Td) (ms)
Color Performance
Chromaticity
Wx:0.307; Wy:0.321
Color Numbers
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6904K
Uniformity
1.25 (Typ.)(9 points)
1931 Color Gamut
NTSC Ratio
73%
sRGB
98%
Adobe RGB
75%
DCI-P3
76%
REC.2020
55%
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Signal Electrical
Current Input
0.14/0.20A (Typ./Max.)
Voltage Input
Consumption
---W (Typ./Max.)
Signal System
LVDS (1 ch, 6/8-bit)
Interface Features
Position
---
Connector
Connector Detail
Amount
Pin Pitch
Pins
Starconn
093G30-00001A-M4
1pcs
1.0 mm
30 pins
Backlight Features
Lamp Type
WLED
Replacement
Edge Light type
7S2P
Lamp Shape
Array
Life Time
50K (Min.) hours
Included in the LCD panel signal interface
Driver Electrical
92mA (Typ.)
22.4/25.2V (Typ./Max.)
2.06W (Typ.)
1. The brightness of AUO G070VAN01.0 is only 480 nits. Can AUO G070VAN01.0 be used outdoors? A: It is not recommended to use AUO G070VAN01.0 in the open area without any cover in direct sunlight. It is suitable for environments with strong indoor light sources such as factory workshops, warehouses, and hospitals. If you have equipment that needs to be used outdoors, we suggest purchasing a LCD panel with a brightness of at least 700 nits.
2. The claimed viewing angle is 89/89/89/89. Will the color not change in any direction when used in practice? A: Within the viewing angle, the color will not turn gray or reverse white. However, there will be a slight deviation in color and contrast.
3. Does AUO G070VAN01.0 support 6-bit or 8-bit? A: Yes. AUO G070VAN01.0 supports 6-bit/8-bit selection. AUO G070VAN01.0 can be switched through the mode selection pin on the LVDS interface. The default is usually 6-bit (262K), and if 8-bit (16.7M colors) is needed, the motherboard must output the corresponding format and be properly configured.
4. Does AUO G070VAN01.0 have touch functionality? A: It is a bare LCD panel. We can provide the service of attaching a touch screen. You can choose resistive touch screen, capacitive touch screen or infrared touch screen. You can also choose full-bonding or frame-bonding methods. For details, please contact our sales manager.
5. The resolution is only 800x480. Can AUO G070VAN01.0 play 720p videos? A: Yes. However, the physical resolution is insufficient, so it will be scaled down to 800x480, resulting in loss of details. AUO G070VAN01.0 is more suitable for displaying large buttons, numbers, and simple graphics (such as HMI, gauges, PDAs).
6. How long is the lead time for AUO G070VAN01.0? A: Currently, AUO G070VAN01.0 is in mass production. Industrial LCD panels from AUO usually have a guarantee period of 3 to 5 years. So there is no need to worry about a shortage. If you need to use AUO G070VAN01.0 for a long time, you can sign a long-term cooperation agreement with us. We will provide you with a long-term stock strategy.
