Wide temperature range, white LED backlight, lifespan greater than 50,000 hours, includes LED driver, up/down and left/right flip display, 6/8-bit grayscale selectable, matte surface.
AUO G070VW01 V012 is a 7-inch a-Si industrial TFT LCD display module that it is equipped with WLED backlight and LED backlight driver board, but without touch function. It can operate at -30~ 85 ℃ and store at -30~85℃, with 1.5G (14.7m/s2) anti-vibration. In terms of backlighting, AUO G070VW01 V012, also called G070VW01.012 or G070VAN02.0, adopts a side-entry WLED light source with a lifespan of 50K hours. And G070VW01 V012 uses an LVDS (1 channel, 6/8-bit) signal interface, with a total of 20 pins, connected by connectors, and the driving voltage is 3.3V (Typ.). Based on its features, G070VW01 V012 is widely uesd in industrial control equipments (such as indsutrial HMI control panel, CNC machine display panel, and data information terminal display) and in-vehicle display screen (such as vehicle-mounted navigation screen and vehicle-mounted control panel). The basic parameters of G070VW01 V012 are in the following table:
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G070VW01 V102
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
7.0
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
170×111×8 mm (H×V×D)
Optical Mode
AHVA,Normally Black Display, TM
Active Area (WxH mm)
152.4×91.44 mm (H×V)
Backlight Type
WLED, 50K hours, with LED driver
Visual Area
---
Interface
LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Optimal Visual Angle
Full-view
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Resolution
800(RGB)×480, WVGA, 15:9
Response Time
25 (Typ.)(Tr+Td) ms
Brightness (cd/m²)
400
Display Colors
262K/16.2M, 60% NTSC
Contrast Ratio
1000 : 1 (Typ.) (TM)
Operating Temperature (°C )
-30 ~ 85
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
Operating Frequency
60Hz
Power Consumption
2.6W (Typ.)
Weight
157g (Max.)
Touch Function
No
Application
Industrial Control

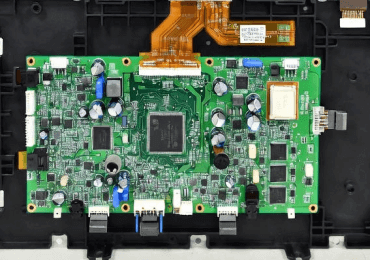

LCD Controller Board/LCD Driver Board We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.
Touch Panel

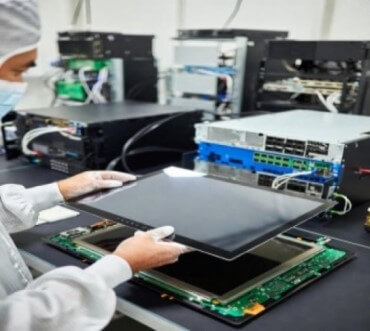

We offer three major types of touch panels: resistive touch panel, capacitive touch panel, and infrared touch panel, covering a wide range of applications including industrial control, medical equipment, automotive displays, and self-service terminals. Based on your operating environment, accuracy requirements, and cost budget, you can flexibly choose the touch solution that best fits your device. Additionally, we support professional touch panel bonding services, including both frame bonding and air bonding. These processes effectively improve optical performance, dust resistance, and shock resistance, making your device more competitive in the market.
As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
Why Choose HXDLCD?

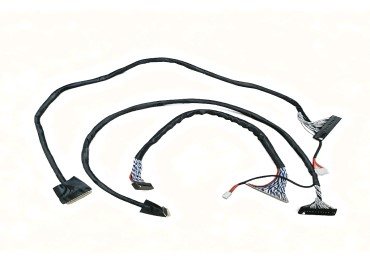

• One-stop Shopping: In addition to fully custom LCD display modules, we also provide supporting control boards, digital cables and touch screen solutions — all products can be purchased together.
• Customization Flexibility: Product dimensions, touch screen types and control board options can all be customized to meet the specific needs of your projects.
• Secure After-Sales Service: We offer a 1-year official warranty. For screens with non-human damage within the warranty period, free replacement or repair is provided.
Technology defines experience, and choices shape products. Welcome to contact us 📮&☎️.
