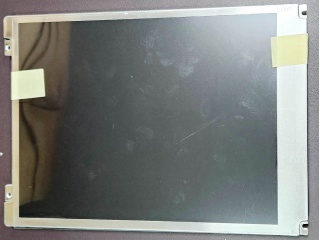

G084SN05 V904

Panel Brand	AUO	panel model	G084SN05 V904
Panel size	8.4	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	800(RGB)×600, SVGA, 119PPI	pixel layout	RGB vertical stripes
display area	170.4(W)×127.8(H) mm	Appearance size	174.15 × 131.2 (H×V) mm
Brightness(cd/m²)	450 cd/m² (Typ.)	the contrast	600 : 1 (Typ.) (transmission)
visual Angle	80/80/80/60 (Typ.) (CR≥10)	surface treatment	Hard coating (3H)
number of colors	262K/16.2M , 45% NTSC	optical mode	TN, normally white display, transmissive
Panel Weight	250g (Typ.)	response time	20/10 (Typ.) (Tr/Td) ms
recommended angle of view	6 o'clock	backlight system	2 strings WLED , 50K hours, with LED driver
frame frequency	60Hz	use for	industrial engineering
signal interface	LVDS (1 ch, 6/8-bit) , Terminals, 20 pins	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~70 °C ;Storage temperature: -30 ~80 °C
